Pneumatic Connection; Technical Data + Dimensions - hydrotab AIR UNIT MAX Installation Manual

Hydro Hydro
Tab
Tab
Marine Engineering Marine Engineering

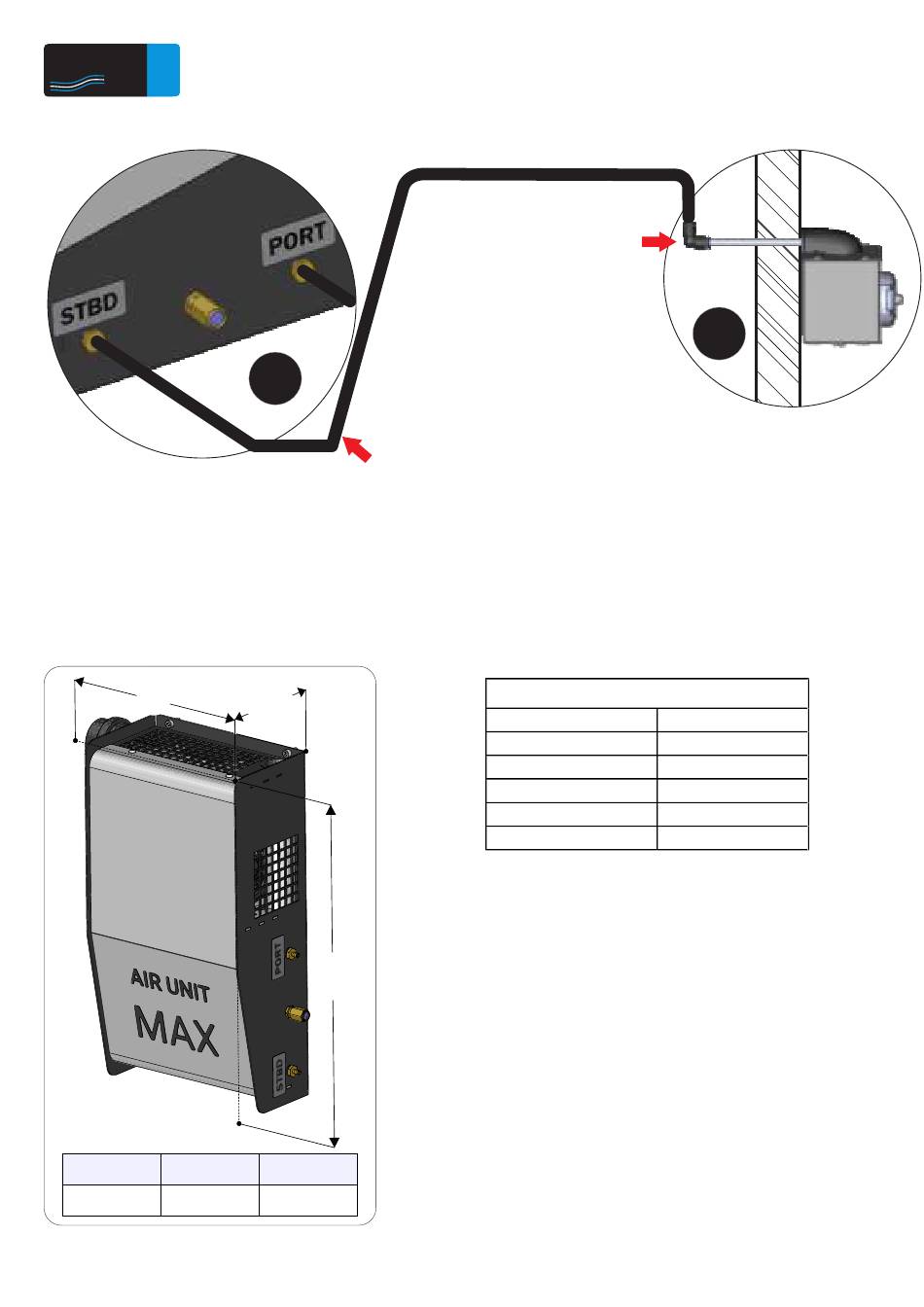

Pneumatic Connection

Technical Data & Dimensions
A
A B
259 mm 143 mm
4. Connect the push-in fitting
5
5. Cut the 8mm pipe at the proper
length and connect it to the Air Unit
B
C
C
459 mm
Air Unit Max DataSheet
Compressor power 380 W
Air compressor type Brushless, oil-free
Voltage 24 V
Amps 15 A
In Line Fuse 30 A
Max pressure 4 bar
4
