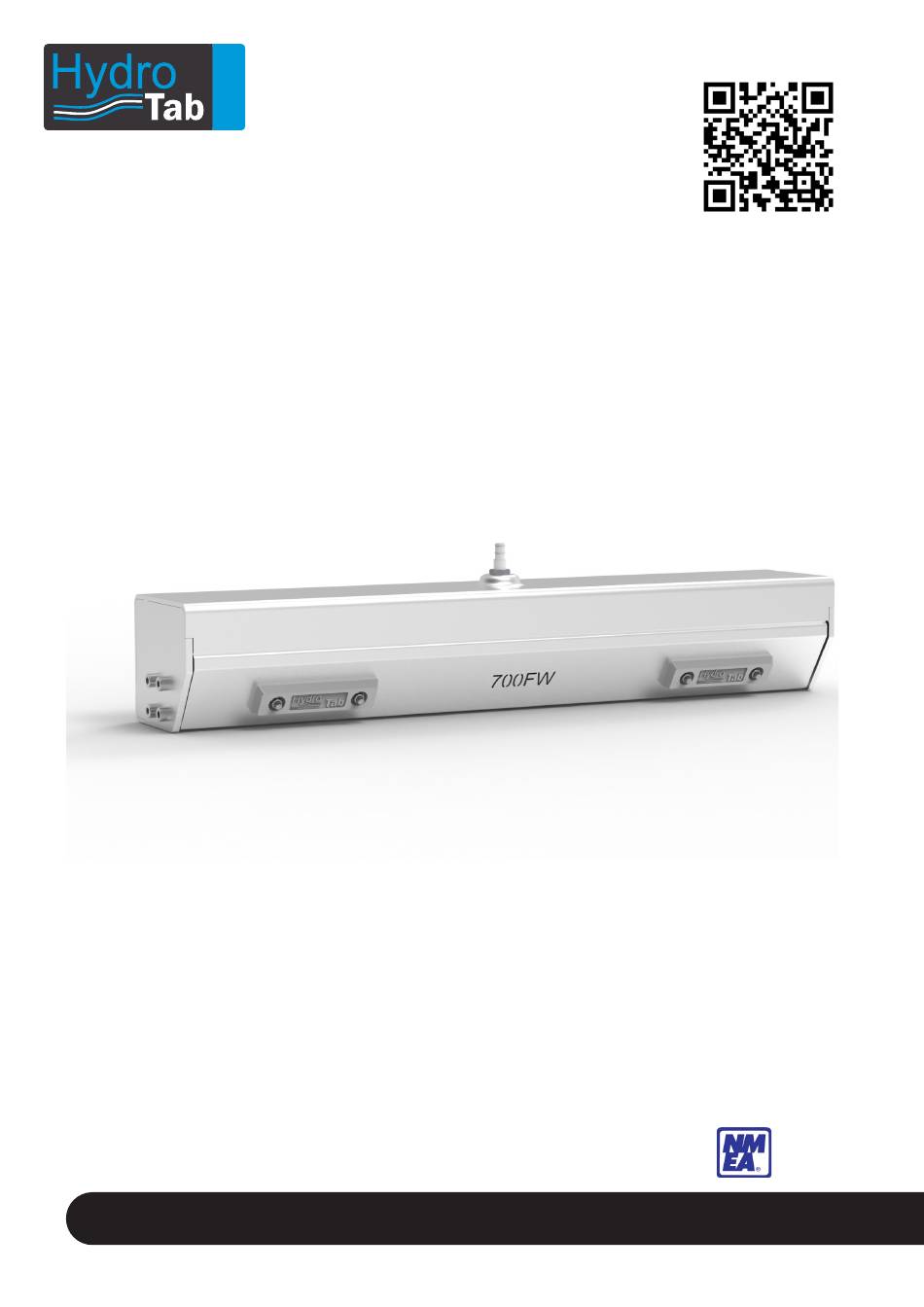

- Page 1 Marine Engineering NMEA 2000 NMEA 0183 Hydrotab FW Series Installation...
-
Page 2: Table Of Contents
Marine Engineering Table of contents Disclaimer Installation Kit Before installation Proper Interceptor installation in transom Interceptor Installation Indirect Installation FW Series Interceptor and Anode Mounting and Coating Instructions Spare Parts List Warranty Conditions Registration... -
Page 3: Disclaimer
Hydrotab inter- problem that will alter the boat’s course, rising ceptors. Our operating principal for improving... -
Page 4: Installation Kit
Marine Engineering Installation Kit 1. Two Inteceptors 2. Interceptors’ Drilling pattern 5. Screws 4. Fittings Interceptor mounting screws (6,3x32) Fitting mounting screws (4,8x25) Fitting mounting screws (4,2x18) Washers M6 6. 7m piping Required Tools for Installation Drill Ø12 Screw driver Allen Key N 05 Drill Ø3 Drill Ø4... -
Page 5: Before Installation
Marine Engineering Proper Interceptor installation in transom Before Installation Make sure there are no Wrong Right obstructions behind the drilling area (tanks, fuel Transom lines, cabling) which can Transom be damaged or prevent the installation procedure. If the boat’s transom has a significant curvature, it is neccecary to create a flat plane for the installation.Ac- Attention Attention! Make sure... -
Page 6: Interceptor Installation
Marine Engineering You will need Attention: The diameters of the holes in the templates are suggested for fiberglass boats. These dimensions are suitable for the supplied stainless steel screws that come with the units. No 5,5 All screws must be placed with their respective washers. -
Page 7: Indirect Installation
Marine Engineering Direct air supply Indirect Air Supply Kit Attention: All the holes must be sealed. Sikaflex 291 is used in order to: -seal the holes -compensate for transom plane irregularities -cement the unit to the hull. The boat must remain 48 hours for drying. Indirect Installation For Direct Air Supply: Advise the instructions. - Page 8 Marine Engineering Fittings Transom Tube Tube cover Fittings Tube Air Supply: Mount the tube holder to the transom and connect Connect the interceptor with the Air Unit using the the interceptor with the air unit components given in the image. You will need 4,2x18 screws Drill the transom, at the tube cover holes with a 3mm...
-
Page 9: Fw Series Interceptor And Anode Mounting And Coating Instructions
Marine Engineering FW Series Interceptor and Anode Mounting and Coating Instructions Note 1: You may apply protection coating on interceptor if you’d like so, but: 1. Do not apply coating on anodes 2. Do not apply coating on the area of interceptors which is in contact with anode (see Fig. 1a, 1b, 1c). -
Page 10: Spare Parts List
Marine Engineering Spare Parts and order information FITTINGS CODE ID No DESCRIPTION 640 FW 700FW 800FW 1000FW ASM-00719 ASM-00401 ASM-00158 ASM-00160 Body ASM-00815 ASM-00814 ASM-00087 ASM-00092 Inflatable tubular GEN-00025 Plastic guides REV-00427 Beam Spaser GEN-00032 Spring support LAS-00598 LAS-00459 LAS-00127 LAS-00269 Interceptor blade SPR-00007... -
Page 11: Warranty Conditions
2-year warranty. Anodes (consumables) are not included in the warranty .Hydrotab’s warranty only covers the repair or replacement of spare parts. System selections It is the sole responsibility of the buyer to choose the correct system and even with Hydrotab’s suggestion for a system, the overall responsibility is with the buyer. Limited warranty... -
Page 12: Registration
Marine Engineering...
