Hydro
Tab
Marine Engineering

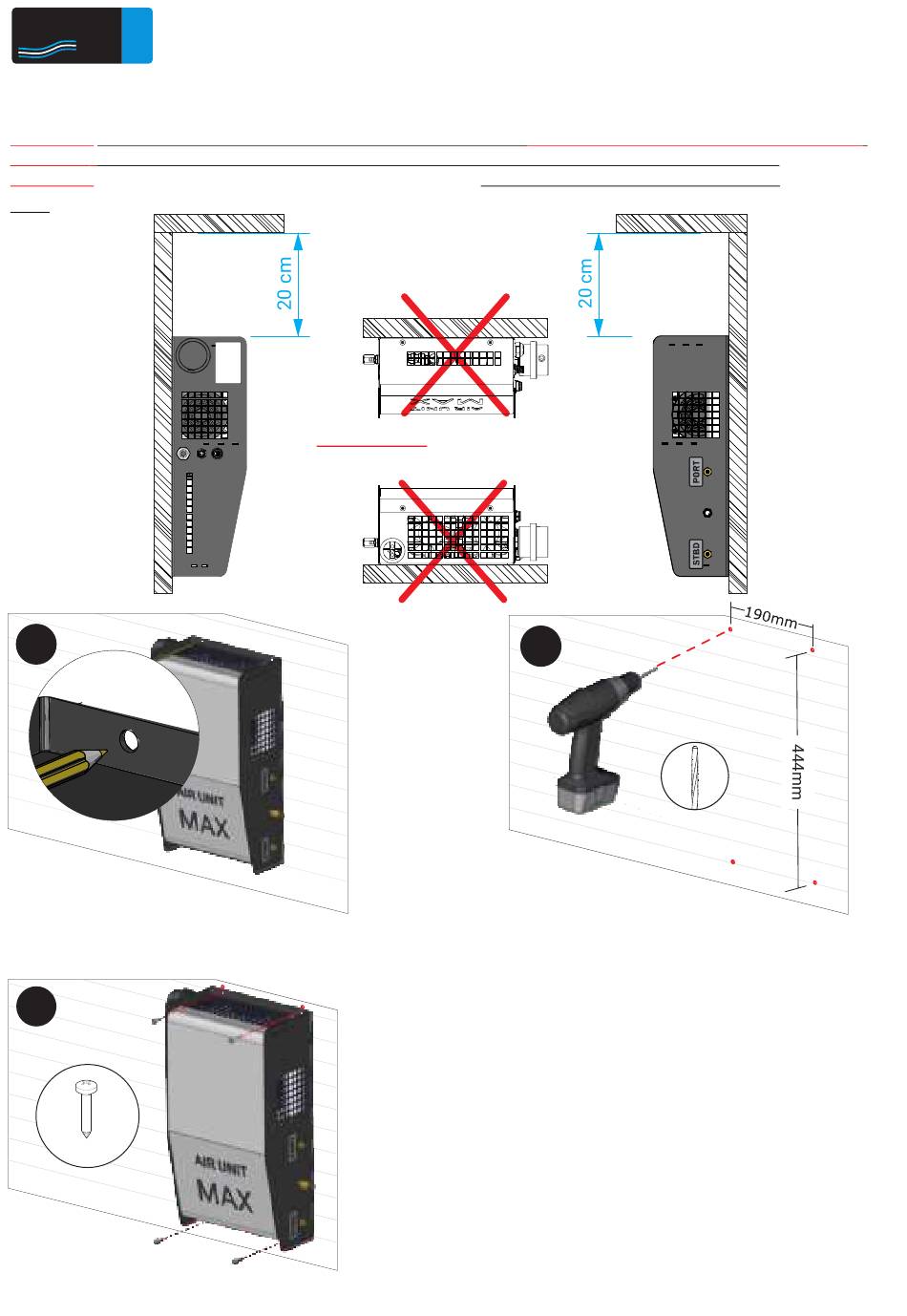

Air Unit Max Installation
WARNING:
THE AIR UNIT MUST BE INSTALLED IN A COMPARTMENT
WARNING:
THE AIR UNIT MUST BE INSTALLED 20cm BELOW ANY SURFACE THAT LOCATES ABOVE IT .
WARNING:
PLEASE INSURE THAT THE AIR UNIT IS INSTALLED ACCORDING TO THE IP30 LIMITATIONS.
IP30 : Protected from tools and wires greater than 2.5 millimeters. Not protected from liquids.
1
Fig.1: Find a clear surface, place the Air Unit
Max, and mark the holes with a pencil.
3
M4,8x25
Fig.3: Mount the Air Unit Max with the given
screws.
WARNING:
the Air Unit upside-down
2
FREE OF EXPLOSIVE OR FLAMMABLE GASES
DO NOT MOUNT
2
Fig.2: Make holes with Ø3 drill.
You will need
Drill Ø3
.
