Clas Ohlson 31-4165 Quick Start Manual

Timer, countdown/up, 2 times,
Please read the entire instruction manual before using and save it for
future use.
Product Description
Timer, table model with countdown and count up.«
- Built-in clock with 12/24 hour display.
- Two separate countdown times. Max 99 min 30 secs.
- Return to latest set time.

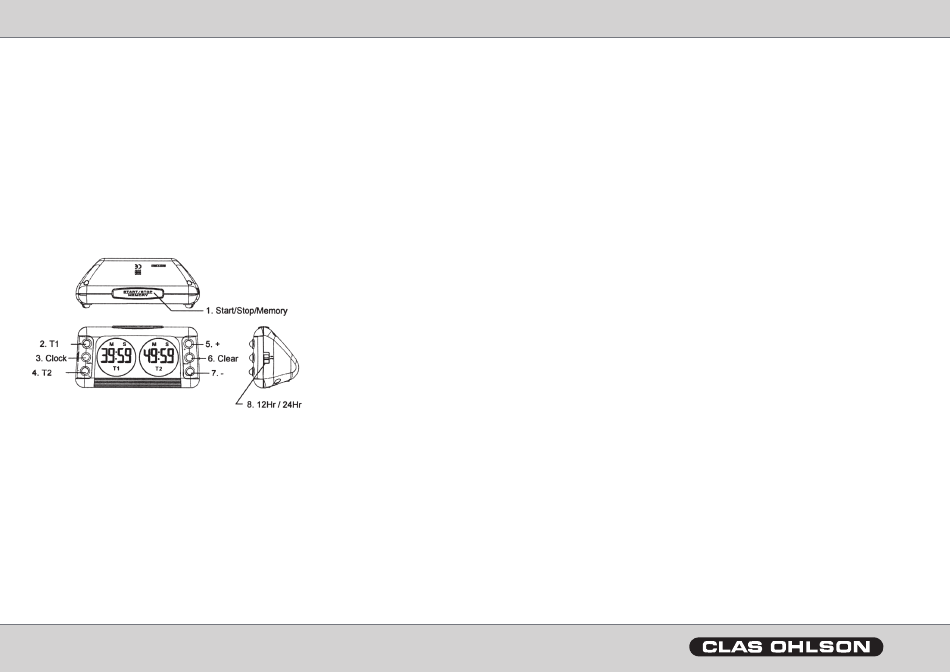

Buttons
1. START/STOP/MEMORY
2. T1 (Timer 1)
3. CLOCK
4. T2 (Timer 2)
5. +
6. CLEAR – reset to zero
7. –
8. 12/24 hour display.
Safety
- Always remove the batteries when the timer is not used for a longer
period of time. The batteries can start to leak and cause damage to
the device.
- Never expose the device to high temperatures, blows, dampness or
moisture.
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk and click on customer service. Internet: www.clasohlson.co.uk
ENGLISH
art.no. 31-4165
Getting started
Insert batteries
The timer requires 2x AA/LR6 batteries.
1. Open the battery cover underneath the timer.
2. Insert 2x AA/LR6 batteries. Make sure to place the poles
correctly according to the markings on the bottom of the battery
compartment.
3. Put back the battery cover.
Use
Set the clock
1. Press and hold in CLOCK (3) for approx. 2 seconds until the time
blinks in the display.
2. Adjust the hours and minutes with + (5) and – (7). Hold in the
buttons for quicker setting of time.
3. Press CLOCK (3) once to finish the setting mode.
4. Put the switch (8) in 12/24 hour display mode.
AM or PM is shown in the 12 hour display.
Set the countdown time
1. Press and hold in T1 (2) or T2 (4) until the numbers for respective
timer blinks in the display.
2. Adjust the time in 30 second intervals with + (5) and – (7). Hold in
the buttons for quicker setting of time.
3. Press T1 (2) or T2 (4) (depending on selection in step 1) once to
save the time.
Max countdown time is 99 minutes and 30 seconds.
Individual countdown (only one timer is set)
1. Press START/STOP/MEMORY (1) or T1 (2) / T2 (4) to start
respective countdown.
2. The countdown can be stopped temporarily by pressing START/
STOP/MEMORY (1) or T1 (2) / T2 (4). Press START/STOP/
MEMORY (1) or T1 (2) / T2 (4) once again to continue the
countdown.
3. When the countdown reaches 0:00 the alarm signal sounds for
a minute. The alarm signal can be shut off by pressing START/
STOP/MEMORY (1) or T1 (2) / T2 (4).
4. Press START/STOP/MEMORY [ 1 ] or T1 [ 2 ] / T2 [ 4 ) once again
to return to the countdown time or press CLEAR (6) to reset the
time to zero.
Double countdown
The timer has double countdown functions that can be used at the
same time.
1. Set both countdown times according to the instructions above.
2. Press START/STOP/MEMORY [ 1 ] once to start both
countdowns.
3. When respective countdown reaches 0:00 the alarm signal sounds.
The alarm signal can be shut off by pressing START/STOP/
MEMORY (1).
4. Press START/STOP/MEMORY [ 1 ] or T1 [ 2 ] / T2 [ 4 ) once again
to return to the countdown time or press CLEAR (6) to reset the
time to zero.
The clock can be displayed at any time while the countdown
function is being used.
Press CLOCK (3) to display the clock. T1 and/or T2 blinks in
the display to indicate that the countdown function is active.
Press T1 (2) or T2 (4) to return to the countdown.
Count up
1. In clock mode, press START/STOP/MEMORY [ 1 ] once to start
the count up.
2. Stop the timekeeping by pressing START/STOP/MEMORY.
3. Press CLEAR (6) to reset the time to zero.
Care and Maintenance
Wipe with a soft, lightly moistened cloth. Never use strong solvents or
detergents.
Disposal
Follow local ordinances when disposing of this product. If you are un-
sure about how to dispose of this product contact your municipality.
Specifications
Size: 115 x 40 x 55 mm.
Battery type 2x AA/R6 (not included)
