Clas Ohlson 15GD-3A-1 Quick Start Manual

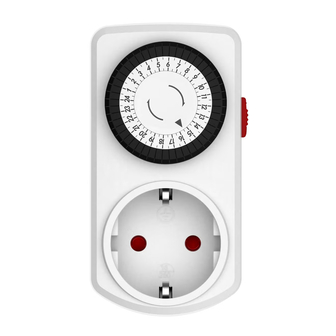

Mini timer
Art. no. 36-9385 Model 15GD-3A-1
36-9386 15GD-3A-1 x 3
Please read the entire instruction manual before using
the product and then keep it for future reference. We
accept no liability for any errors in the text or images and
we reserve the right to make any necessary changes to
technical data. If you have technical problems or other
questions, please contact our customer service team.
Safety
• The product is intended for indoor use only.
• Always plug the product directly into a wall socket.
Do not plug it into an extension lead or trailing socket.
• Never immerse the product in water or any other type
of liquid.
• Never let children play with the product.
• Never try to open the casing.
• Never expose the product to high temperatures,
dust, heavy vibration, impacts, damp environments
or moisture.
• The product must not be connected to heaters of
any kind.
• Make sure that the plug on the device connected to
the timer is properly plugged into the timer socket.
• Maximum power of the device connected to the timer:
3680 W, 16 A
• Do not connect the timer to other timer-controlled
devices.
• Make sure that the wall socket is easily accessible so
that the product and any devices connected to it can
be unplugged from the mains quickly if required.
• Do not connect products of this type to one another.
• Do not cover the product.
Care and maintenance
• Unplug the timer from the wall socket before
vacuuming it or wiping it clean with a dry cloth.
• Always unplug the timer and store it in a dry, dust-free
environment out of children's reach if you are not
going to use it for a long period.

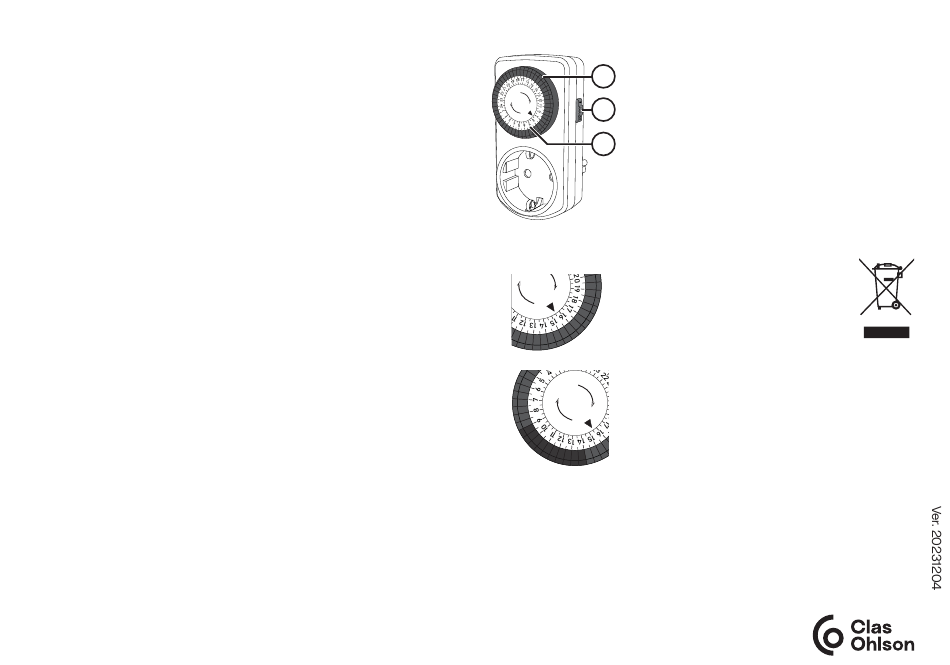

Product description
1. Timer segments
2. Selector switch for timer
mode/always on
3. Setting the current time
Instructions for use
1. Make sure that all of the timer segments are raised.
2. To set the time, turn the outer
dial with the time segments
clockwise until the arrow
points to the current time.
The figure shows 15:30 as
the current time.
3. Press down the segments
for the period when you
want the connected device
to be switched on. The
figure shows that the device
will be switched on from
09.00 to 14:00. You can set
more than one time interval
within a 24-hour period.
4. Select timer mode by pushing the selector switch
downwards.
5. Push the selector switch upwards if you want the
timer socket to be switched on all the time.
Troubleshooting guide
The connected device does not switch on.
• Is the device intact and properly connected to
1
the timer? Make sure that the device works by
connecting it to another wall socket without the timer.
2
• Is the device switched on?
• Is there power at the wall socket that the timer is
connected to?
3
• Check the time setting on the timer.
• A power cut could have changed the time setting.
The time setting needs to be reset after a power cut
if the timer is to switch the device on/off at
the correct times.
Responsible disposal
This symbol indicates that the product
should not be disposed of with general
household waste. This applies throughout
the entire EU. To prevent any harm to the
environment or health hazards caused by
incorrect waste disposal, the product
must be handed in for recycling so that
the materials can be disposed of in a responsible way.
To recycle the product, take it to your local recycling
facility or contact the retailer. They will ensure that the
product is disposed of in a way that does not harm the
environment.
Specifications
Power supply
Maximum resistive load
Operating temperature
Each segment represents
IP rating
English
230 V AC, 50 Hz
3680 W, 16 A
0 to 35 °C
30 min.
IP20
