Clas Ohlson DY932 Instruction Manual

Irrigation timer
Art.no 31-6817 Model DY932
Please read the entire instruction manual before using the product and then keep
it for future reference. We accept no liability for any errors in the text or images and
reserve the right to make any necessary changes to technical data. If you have
technical problems or other questions, please contact our customer service team.
Safety
The product is intended for outdoor use only.
• The product should only be used with reinforced (braided) hoses.
Damaged or dry and brittle hoses should not be used.
• The product must not be immersed in water or other liquid.
• The product must not be covered in any way.
• All hoses and connections should be checked regularly.
• When you use the product for the first time, you should monitor it
for a week to make sure that everything is working correctly.
• Check all the connections, hoses and batteries and make sure that
the programs are functioning as expected before leaving the product
unsupervised for a longer period.
• Do not use rechargeable batteries. Use only good quality alkaline batteries.
• Position the timer the right way up. Never turn it upside down.
• The product must only be repaired by a trained service technician.
• The product contains parts that are sensitive to static electricity. If the product
does not function correctly, you may need to reset it by taking out the batteries
and putting them back in again.
• The product should not be used when the temperature is below 0°C or with
water that is above 38°C (100°F).
• The product must not be used with water at a pressure of more than
8.16 bar (120 psi).
• Take care not to pull or jerk the hoses that are connected to the product.

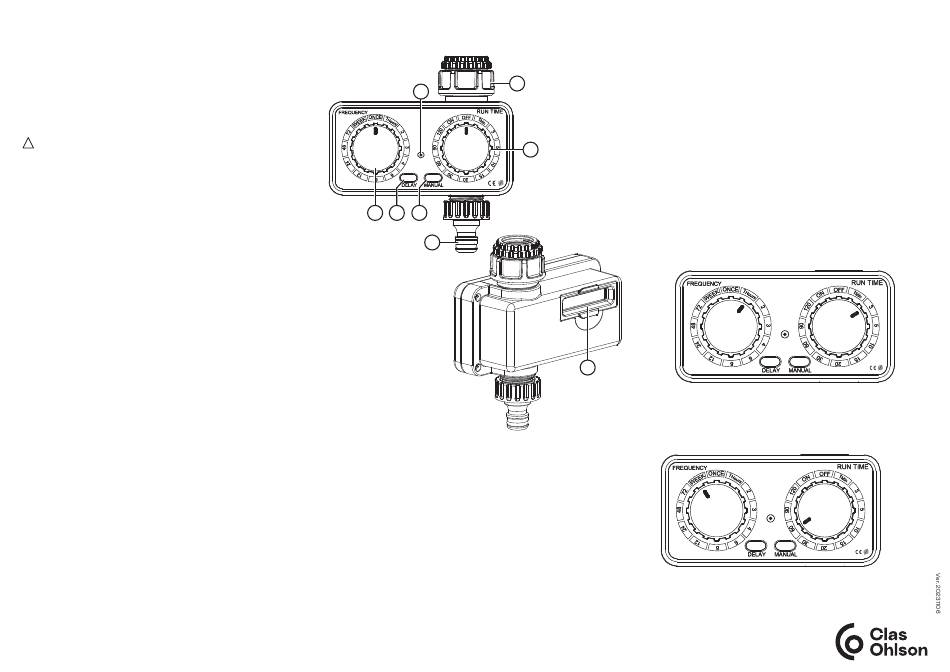

Product description
1
4 5 6
7
1. Indicator light
- Flashing yellow light every four seconds – Normal operation
- Alternating red and yellow flashing light – Technical problem
- Flashing red light – Flat battery (less than 2.4V).
The irrigation system will be shut off.
2. Tap connectors (1/2ʺ, 3/4ʺ, 1ʺ)

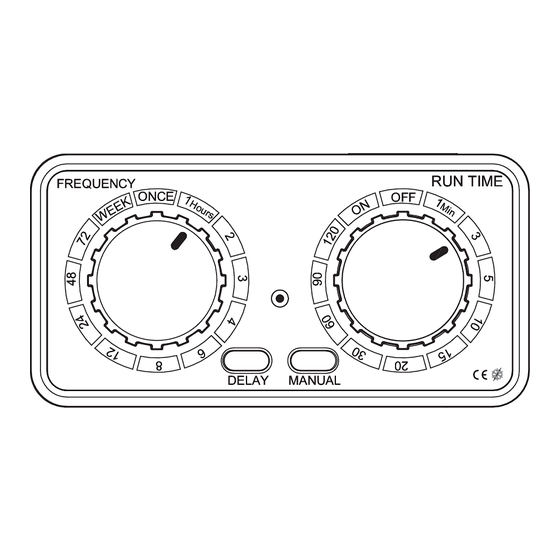

3. RUN TIME – Setting the irrigation time. Choose from:
- ON (always on, regardless of the FREQUENCY setting)
- OFF (always off, regardless of the FREQUENCY setting)
- MIN (1, 3, 5, 10, 15, 20, 30, 60, 90, 120)
4. FREQUENCY – Setting the irrigation frequency. Choose from:
- HOURS (1, 2, 3, 4, 5, 6, 8, 12, 24, 48, 72)
- WEEK (weekly)
- ONCE
5. [ DELAY ] delayed start of irrigation
6. [ MANUAL ] bypasses the FREQUENCY setting and opens the valve
7. Irrigation hose connector
8. Battery compartment
Using the product
Setting the irrigation frequency (FREQUENCY)
Select how often you want to irrigate by turning the selector (4) to the required setting.
- HOURS (1, 2, 3, 4, 5, 6, 8, 12, 24, 48, 72) (hourly: every hour, every two hours,
2
every three hours etc.)
- WEEK (weekly)
- ONCE Irrigation will start immediately and will run for the period you choose
in the next step.
Setting the irrigation time (RUN TIME)
3
• Select how long you want to irrigate by turning the selector (3) to the required
minute setting.
- MIN (1, 3, 5, 10, 15, 20, 30, 60, 90, 120)
• If you want the irrigation to be switched on continuously, turn the selector to ON.
To stop the irrigation, turn the selector to OFF.
Note: The RUN TIME must be shorter than the FREQUENCY. For example,
the RUN TIME cannot be set to 60, 90 or 120 if the FREQUENCY is set to 1.
Examples of irrigation programmes
8
Irrigation will start every hour (from when the timer is set) and run for 3 min.
Irrigation will start once a week (from when the timer is set) and run for 60 min.
English
