Multitimer
Art.no 36-4125
Please read the entire instruction manual before using
the product and save it for future reference. We reserve
the right for any errors in text or images and any neces-
sary changes made to technical data. If you have any
questions regarding technical problems please contact
Customer Services.

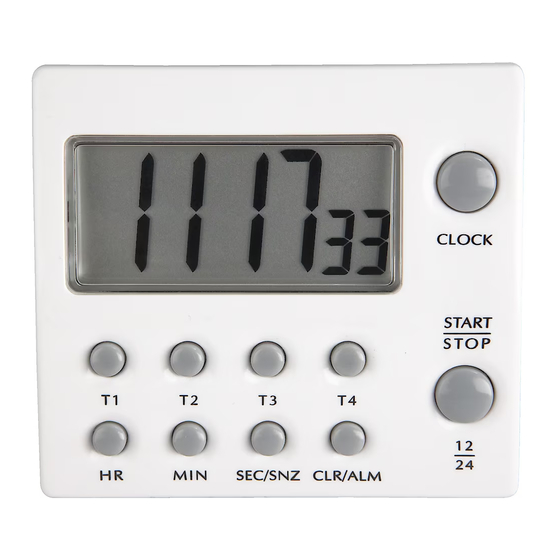

Product description

Max. 99 hrs, 59 min and 59 sec. Counts up/down in
4 channels simultaneously. Clock and alarm with
snooze. Magnet and clip/stand.

Inserting the battery

1. Open the battery cover
Insert one SR44 battery
into the compartment.
Make sure that the
battery is the right way
up (text facing up).
2. Replace the battery cover. The easiest way to
remove and replace the battery cover is by using a
screwdriver.
3. The battery should be changed as soon as the low
battery symbol appears on the display.
Note: When the battery is taken out or changed, the
display will show 12:00:00.

Use

Countdown timer

1. Press T1. "T1" appears in the top left corner and the
display will show 0:00:00.
2. Press HR, MIN and SEC/SNZ respectively to set the
hours, minutes and seconds.
3. Press START/STOP to start the countdown.
4. Press START/STOP to stop the countdown.
5. When the countdown has finished, the alarm will
sound for 1 minute.
6. Press any button to turn the alarm off.
7. Press CLR/ALM to reset.
8. Repeat the same procedure for T2, T3 and T4.

Stopwatch

1. Press T1. "T1" appears in the top left corner and the
display will show 0:00:00.
2. Press START/STOP to start the stopwatch.
3. Press START/STOP to stop the stopwatch.
4. Press CLR/ALM to reset.
5. Repeat the same procedure for T2, T3 and T4.
GREAT BRITAIN
For consumer contact, please visit www.clasohlson.co.uk
and click on customer service.
Model TM-44

Timer on

1. Select the timer T1, T2, T3 or T4.
2. Press START/STOP to start the stopwatch/timer.
Press CLR/ALM to reset.

Setting the time

1. Press CLOCK to enter the clock setting mode.
2. Hold in CLOCK for approx. 3 seconds. The digits will
start to flash and the time can be set.
3. Use the HR and MIN buttons to set the hours
and minutes.
4. Press SEC/SNZ to set the seconds to zero.
5. Press CLOCK to confirm your settings and return to
time display mode.
6. Press and hold in 12/24 for 3 seconds to change
between 12 and 24 hour clock.

Setting the alarm and snooze time

1. Press CLR/ALM. "AL" (alarm) appears on the display.
2. Hold in CLR/ALM for approx. 3 seconds. The digits
will start to flash and the time can be set.
3. Use the HR and MIN buttons to set the hours
and minutes.
4. Press CLR/ALM. The digits will stop flashing. Press
SEC/SNZ.
appears on the display to indicate that
the alarm is on.
5. Press SEC/SNZ again. "SNZ" appears on the display
and indicates that the snooze is activated.
6. Press CLOCK to return to normal time display mode.
The alarm sounds for one minute. Press any button
to turn the alarm off. After ten minutes the alarm will
sound again (snooze).
7. To deactivate the alarm, press CLR/ALM to enter the
alarm setting mode. Then press SEC/SNZ.
SNZ will now dissappear from the display.
8. Press CLOCK to return to normal time display mode.

Care and maintenance

Wipe the product using a dry cloth when necessary.
Never use abrasive cleaning agents or solvents.

Disposal

Follow local ordinances when disposing of this product. If
you are unsure of how to dispose of this product, please
contact your municipality.

Specifications

Batteries:
1 x SR44 (included)
and
