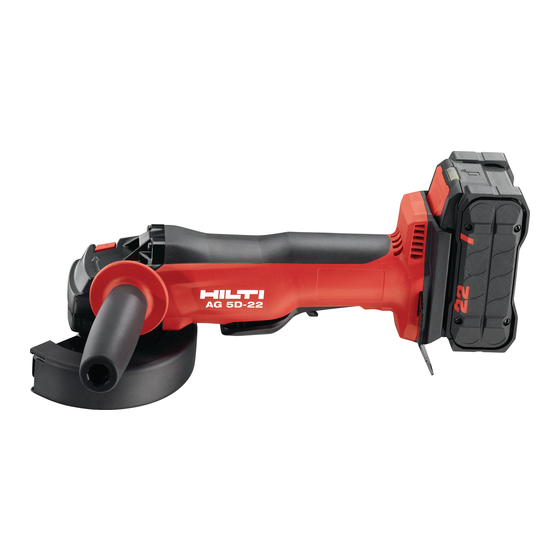

Hilti NURON AG 5D-22 125 Original Operating Instructions

Hide thumbs Also See for NURON AG 5D-22 125:

Advertisement

Quick Links

Download this manual
AG 5D-22 (125)
English
1
‫ת י‬
‫ר ב‬
‫ע‬
19

Advertisement

loading
Need help?

Need help?

Do you have a question about the NURON AG 5D-22 125 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hilti NURON AG 5D-22 125

Summary of Contents for Hilti NURON AG 5D-22 125

  • Page 1 AG 5D-22 (125) English ‫ת י‬ ‫ר ב‬ ‫ע‬...
  • Page 7 AG 5D-22 (125) Original operating instructions ........‫ת...

  • Page 9: Information About The Documentation

    Comply with the operating instructions Instructions for use and other useful information Dealing with recyclable materials Do not dispose of electric equipment and batteries as household waste Hilti Li­ion battery Hilti charger 1.2.3 Symbols in illustrations The following symbols are used in illustrations: These numbers refer to the illustrations at the beginning of these operating instructions.
  • Page 10 The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information...
  • Page 11 The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Work area safety ▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
  • Page 12 ▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 13 stopping flying debris generated by various applications. The dust mask or respirator must be capable of filtrating particles generated by the particular application. Prolonged exposure to high intensity noise may cause hearing loss. ▶ Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment.
  • Page 14 ▶ Do not use worn down wheels from larger power tools. A wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst. ▶ When using dual purpose wheels always use the correct guard for the application being performed. Failure to use the correct guard may not provide the desired level of guarding, which could lead to serious injury.
  • Page 15 ▶ Dirty or dusty products that have been used frequently for work on conductive materials should be checked at regular intervals by Hilti Service. Dust (especially dust from conductive materials) or dampness adhering to the surface of the power tool may, under unfavorable conditions, lead to electric shock.
  • Page 16 Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".
  • Page 17 • For these batteries, use only Hilti chargers of the type series stated in the table at the end of these operating instructions. Items supplied Angle grinder, side handle, standard guard, front cover, clamping flange, clamping nut, pin wrench, operating instructions.
  • Page 18 The Li-ion battery is completely discharged. Recharge the battery. If the LED again starts quick-flashing after the bat- tery has been charged, consult Hilti Service. One (1) LED quick-flashes yellow The Li-ion battery or the product in which it is in- serted is overloaded, too hot or too cold, or experi- encing some other fault.

  • Page 19: Technical Data

    Type Application Designation Material Abrasive resin-fiber wheel Rough grinding AP-D Metal Suitability of wheels for the equipment used Item Equipment AC­D AG­D, DG-CW DC-TP, AP-D 3CS, 4CS, AF­D, (SPX, SP, DC-D 3SS, 4SS, AN­D (SPX, SP, DD-M14 Guard Front cover (in —...

  • Page 20: Preparations At The Workplace

    1. Press the battery release button. 2. Remove the battery from the product. Installing the Hilti retaining strap (optional) When working with the product, you must comply with national regulations for working at heights. Comply with the operating instructions of the retaining strap.
  • Page 21 ▶ Prior to each use, always check the attachment point of the tool tether for possible damage. Comply with the national regulations for working at heights. As drop arrester for this product, use only a combination of the Hilti retaining strap and the Hilti tool tether #2261970.
  • Page 22 1. Position the front cover with the closed side on the standard guard and push it on until it engages. 2. To remove it, release the catch for the front cover and then lift the front cover away from the standard guard.

  • Page 23: Operation

    1. Clean the clamping flange and the quick-release clamping nut. 2. Check that the O-ring is in place in the clamping flange and that it is undamaged. ▶ Replace the O-ring if it is missing or damaged. 3. Fit the clamping flange on to the spindle (keyed fit to prevent slipping and rotation). 4.

  • Page 24: Care And Maintenance

    Avoid unnecessary exposure of the battery to dust and dirt. Never expose the battery to high levels of moisture (e.g. by being dipped in water or left in the rain). If a battery has been soaked by moisture, treat it as a damaged battery. Isolate it in a non-flammable container and consult Hilti Service. English 2272031...

  • Page 25: Troubleshooting

    To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with your product can be found at your Hilti Store or online at: www.hilti.group...

  • Page 26: Manufacturer's Warranty

    ▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting. ▶ Dispose of your battery out of the reach of children. ▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.
  • Page 27 ‫י ל‬ ‫ש‬ ‫ה‬ ‫ל ן‬ ‫י א‬ ‫ן‬ - ‫ו י‬ ‫ם ו‬ ‫י ת‬ ‫י ל‬ ‫ת‬ ‫ל ל‬ ‫ו ס‬ Hilti ‫ן ע‬ ‫ט‬ ‫מ‬ Hilti ‫ם י‬ ‫ר ו‬ ‫י א‬ ‫ב‬ ‫ם‬ ‫י ל‬ ‫מ‬ ‫ס‬...
  • Page 28 ‫ו מ‬ ‫ש‬ ‫י‬ ‫נ כ‬ ‫ט‬ ‫ה‬ ‫ד‬ ‫ו ע‬ ‫י ת‬ ‫ה‬ Hilti Entwicklungsgesellschaft mbH | Zulassung Geräte | Hiltistraße 6 | 86916 Kaufering, Germany ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ם י‬ ‫י ל‬ ‫מ‬ ‫ש‬ ‫ח‬...
  • Page 29 ‫ה‬ ‫ט‬ ‫י ל‬ ‫ש‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ד ב‬ ‫א ל‬ ‫ל ו‬ ‫ל ע‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ח‬ ‫ס‬ ‫ו ת‬ ‫ך‬ ‫ת‬ ‫ע ד‬ ‫ם‬ ‫א‬ ‫ו ב‬ ‫ש‬ ‫ו‬ ‫מ י‬ ‫ש‬ ‫ה‬ ‫ך ל‬ ‫ה‬ ‫מ‬...
  • Page 30 ‫ם י‬ ‫י ת‬ ‫כ‬ ‫ת‬ ‫מ‬ ‫ם‬ ‫י צ‬ ‫פ‬ ‫ח‬ ‫ו א‬ ‫ם‬ ‫י ג‬ ‫ר ב‬ ‫, ם‬ ‫י ר‬ ‫מ‬ ‫ס‬ ‫מ‬ ‫, ת‬ ‫ו ח‬ ‫ת‬ ‫פ‬ ‫מ‬ ‫, ת‬ ‫ו ע‬ ‫ב‬ ‫ט‬ ‫מ‬ ‫מ‬...
  • Page 31 ‫ת‬ ‫ו מ‬ ‫י א‬ ‫ת‬ ‫מ‬ ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ת ו‬ ‫י ח‬ ‫נ‬ ‫ה ו‬ ‫ע‬ ‫ת‬ ‫ר‬ ‫. ה‬ ‫א‬ ‫ל ה‬ ‫ן‬ ‫כ ו‬ ‫ל ז‬ ‫ר ב‬ ‫ת‬ ‫ש‬ ‫ר ב‬ ‫מ‬ ‫, ש‬...
  • Page 32 ‫ש‬ ‫ק‬ ‫ב‬ ‫א‬ ‫. ר י‬ ‫ד ס‬ ‫ן פ‬ ‫ו א‬ ‫ב‬ ‫ה‬ ‫ק‬ ‫י ד‬ ‫ב ל‬ Hilti ‫ל‬ ‫ש‬ ‫ת ו‬ ‫ד ב‬ ‫ע‬ ‫מ‬ ‫ל‬ ‫א‬ ‫י ב‬ ‫ה ל‬ ‫ש י‬ ‫ם‬ ‫י כ‬...
  • Page 33 ‫ה‬ ‫ל י‬ ‫ד כ‬ B 22 ‫ם‬ ‫י מ‬ ‫ג‬ ‫ד ה‬ ‫ת‬ ‫ר‬ ‫ד ס‬ ‫מ‬ Hilti Nuron ‫ל‬ ‫ש‬ ‫ן‬ - ‫ו י‬ ‫ם ו‬ ‫י ת‬ ‫י ל‬ ‫ת ו‬ ‫ל ל‬ ‫ו ס‬ ‫ב‬ ‫ק ר‬...
  • Page 34 , ‫י‬ ‫ת י‬ ‫ו ו ז‬ ‫ת‬ ‫ז ח‬ ‫ש‬ ‫מ‬ www.hilti.group ‫: ת‬ ‫ב‬ ‫ו ת‬ ‫כ ב‬ ‫ו א‬ Hilti Store ‫- ב‬ ‫א‬ ‫צ‬ ‫מ‬ ‫ת‬ ‫ך ל‬ ‫ש‬ ‫ר צ‬ ‫ו מ‬ ‫ה‬ ‫ר‬ ‫ו ב‬...
  • Page 35 ‫ל ע‬ ‫ז ר‬ ‫פ‬ ‫ו מ‬ ‫ס‬ ‫מ‬ ‫ו ע‬ ‫ל‬ ‫י ע‬ ‫פ‬ ‫ת‬ ‫ל‬ ‫א ו‬ Hilti ‫ל‬ ‫ש‬ ‫ת‬ ‫ו ר‬ ‫י ש‬ ‫ל‬ ‫ה‬ ‫נ פ‬ ‫, ת‬ ‫מ י‬ ‫י ק‬ ‫ן י י‬...
  • Page 36 AP-D DC-TP DG-CW AG­D AC­D ‫ד ו‬ ‫י צ‬ ‫ט‬ ‫י ר‬ ‫פ‬ DC-D AF­D DD-M14 AN­D — — — — — ‫ת‬ ‫ב‬ ‫י א‬ ‫ש‬ ‫ן ג‬ ‫מ‬ ‫ג‬ ‫( ה‬ ‫ז ח‬ ‫ש‬ ) ‫ה‬ ‫ק‬ ‫ב‬ ‫א‬...
  • Page 37 ‫ה‬ ‫ה‬ ‫ל ל‬ ‫ו ס‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ך‬ ‫ו ש‬ ‫מ‬ ‫י ל‬ ‫נ ו‬ ‫י צ‬ ‫פ ו‬ ) ‫א‬ Hilti ‫ל‬ ‫ש‬ ‫ה‬ ‫ח‬ ‫ט‬ ‫ב‬ ‫א‬ ‫ת‬ ‫ע‬ ‫ו צ‬ ‫ר‬ ‫ת‬ ‫נ ק‬ ‫ת‬...
  • Page 38 ‫ב ו‬ ‫ג ב‬ ‫ה ד‬ ‫ו ב‬ ‫ע ל‬ ‫ע‬ ‫ג ו‬ ‫נ ב‬ ‫ם‬ ‫י ק‬ ‫ו ח‬ ‫ל‬ ‫ב ל‬ ‫ם‬ ‫ש‬ Hilti ‫ל‬ ‫ש‬ #2261970 ‫ה‬ ‫ח‬ ‫ט‬ ‫ב‬ ‫א‬ ‫ה‬ ‫ל ב‬ ‫ח‬ ‫ם‬ ‫ע‬ Hilti ‫ל‬...
  • Page 39 ‫ת ו‬ ‫ר י‬ ‫ה ז‬ ‫. ד‬ ‫ו א‬ ‫מ‬ ‫ם‬ ‫ח‬ ‫ת‬ ‫ו י‬ ‫ה ל‬ ‫ל ו‬ ‫ל ע‬ ‫י‬ ‫ל כ‬ ‫ה‬ ‫. ה‬ ‫ע‬ ‫י צ‬ ‫פ‬ ‫ת‬ ‫נ כ‬ ‫ס‬ ‫. י‬ ‫ל כ‬ ‫ת‬...
  • Page 40 ‫. ן‬ ‫ו ע‬ ‫ש‬ ‫ה‬ ‫ן ו‬ ‫ו י כ‬ ‫ד‬ ‫ג נ‬ ‫ב‬ ‫ב ו‬ ‫ס ו‬ ‫ם‬ ‫י ג‬ ‫ר ב‬ ‫ה‬ ‫ח‬ ‫ת‬ ‫פ‬ ‫מ‬ ‫ב‬ ‫ש‬ ‫מ‬ ‫ת‬ ‫ש‬ ‫ה‬ ‫ך ד‬ ‫י ב‬ Kwik lock ‫ר‬...
  • Page 41 ‫פ‬ ‫ה‬ ‫ך‬ ‫ר ו‬ ‫צ ל‬ www.hilti.group ‫: ת‬ ‫ב‬ ‫ו ת‬ ‫כ ב‬ ‫ו א‬ ‫ך ל‬ ‫ש‬ Hilti Store ‫- ב‬ ‫א‬ ‫צ‬ ‫מ‬ ‫ת‬ ‫ך ל‬ ‫ש‬ ‫ר צ‬ ‫ו מ‬ ‫ה‬ ‫ר‬ ‫ו ב‬ ‫ע‬...
  • Page 42 ‫ח‬ ‫א‬ ‫ה‬ ‫ר ו‬ ‫ז ח‬ ‫י מ‬ ‫ה‬ ‫ת‬ ‫ר ב‬ ‫ח‬ ‫ל‬ ‫ה‬ ‫נ פ‬ ‫ו א‬ Hilti Store ‫- ב‬ ‫ה‬ ‫ל ל‬ ‫ו ס‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ק ל‬ ‫ס‬ ◀ ‫ם‬ ‫י ר‬ ‫מ‬...
  • Page 43 ‫ד‬ ‫ו ק‬ ‫ת‬ ‫ר ו‬ ‫צ ב‬ ‫ה ז‬ ‫ד‬ ‫ו ע‬ ‫י ת‬ ‫ף‬ ‫ו ס‬ ‫ב‬ ‫ם‬ ‫ג‬ ‫א‬ ‫צ‬ ‫מ‬ ‫ת‬ ‫ה‬ ‫ז ה‬ ‫ר‬ ‫ו ש‬ ‫י ק‬ ‫ה‬ ‫ת‬ ‫א‬ 2272031 ‫ת י‬ ‫ר ב‬ ‫ע‬...
  • Page 44 ‫ת י‬ ‫ר ב‬ ‫ע‬ 2272031 2272031...
  • Page 48 *2272031* 2272031 Hilti = registered trademark of Hilti Corp., Schaan Pos. 1 | 20211111...
