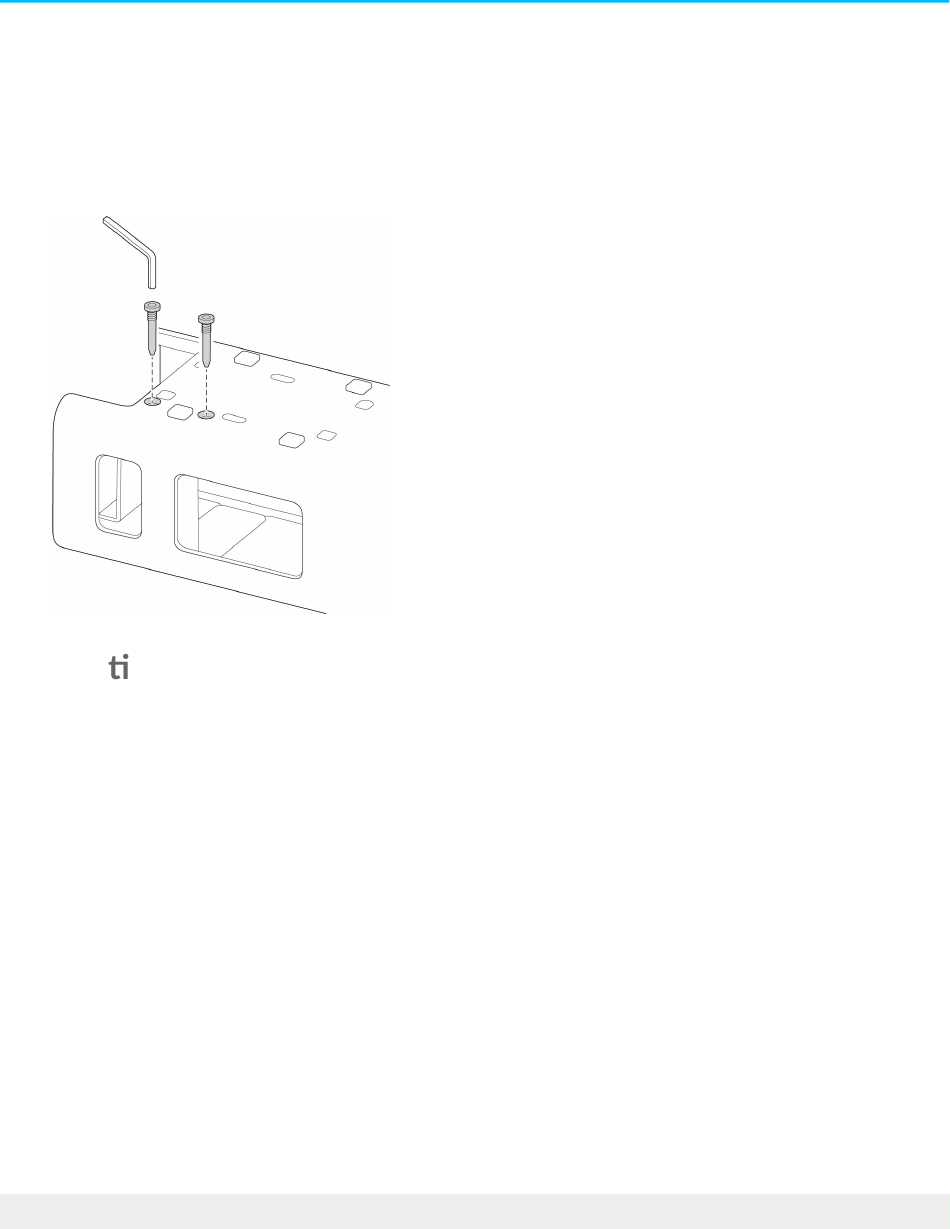

Remove guide pins
Guide pins for use with a PCIe Adapter are preinstalled on Lyve Mobile Mount. If you are connecting a
computer directly to Lyve Mobile Array's host port, you'll need to remove the guide pins. Use a 6mm hex
key wrench to unscrew the guide pins from the bottom of Lyve Mobile Mount.
(Op onal) Route cables through the front of Lyve
Mobile Mount
You can route cables through the front of Lyve Mobile Mount using the internal channel that runs the length of
the mount. Five plastic cable holder covers are provided to secure the cables in the channel. To attach a
cover, insert the rounded tab into a notch on the right side of the channel. Snap the hooked release tab into
the corresponding slot on the left of the channel.
