Operating Instructions • Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
SPECIFICATIONS
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350 RPM
Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 ft. lbs.
Air Inlet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" - 18 NPT
Maximum Air Pressure . . . . . . . . . . . . . . . . . . . 90 psig, 6.2 bar
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . 3.08 CFM
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.12"
Vibration Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.51 m/sec²
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 dbA
Sound Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 dbA
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.99 Lbs
CAT2000MR
• Parts Breakdown
WARNING
WARNING
• MAxiMuM rPM oF 350
• MAx. Air Pressure:
90 Psig, 6.2 bAr
• use oNly iMPACT wreNCh
soCKeTs ANd ACCessories
oN This Tool. do NoT
use hANd soCKeTs ANd
ACCeSSORIeS.
ALWAYS ReAd
iNsTruCTioNs beFore
usiNg Power Tools
ALWAYS WeAR
sAFeTy goggles
weAr heAriNg
ProTeCTioN
Avoid ProloNged
exPosure To vibrATioN
CAT2000MR

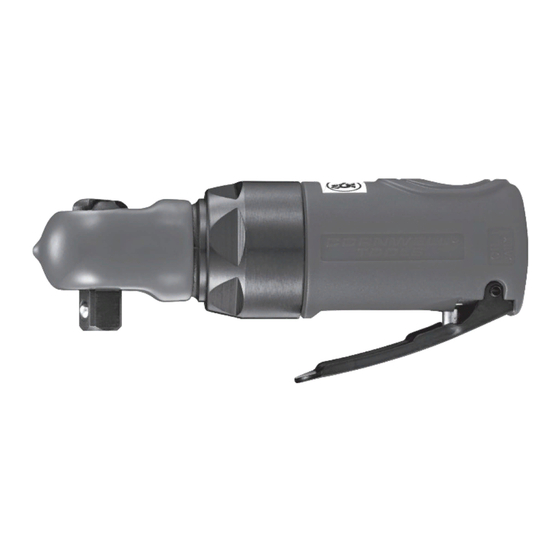

3/8" Mini Palm
Air Ratchet
Copyright © Professional Tool Products, 2014
All rights reserved
5/28/14
Advertisement
Related Manuals for Cornwell Tools CAT2000MR
Summary of Contents for Cornwell Tools CAT2000MR
- Page 1 Torque ........25 ft. lbs. CAT2000MR Air Inlet Size .
- Page 2 • Air powered tools can vi b rate during use. Vi b ra t ion, re p et i t ive mo t ions or un c om f ort a ble po s i t ions over ex t end e d pe r i o ds of time may be harm f ul to your CAT2000MR 5/28/14...
- Page 3 PARTS BREAKDOWN - CAT2000MR ref. # item # desCriPTioN ref. # item # desCriPTioN RS1000MRR01 Housing with Bushing RS26224A Planet Gear Carrier (4mm) RS1000MRR02 Throttle Lever RS26225 Needle Bearing RS706132 Pin RS26226 Bushing RS305A04 O-Ring (3.5 x 1.5mm) RS26227 Ratchet Housing RS305A05 O-Ring (4.5 x 1.7mm) RS1000MRR27 Clamp Nut RS305A06 Throttle Pin RS26229 Drive Bushing RS305A07 Spring RS26230 Ratchet Yoke RS305A10 O-Ring (12 x 2mm)
- Page 4 THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. CORNWELL SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY APPLICABLE LAW, ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CORNWELL CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. IN NO EVENT SHALL CORNWELL BE LIABLE TO THE PURCHASER OR TO THE USER OF A CORNWELL PRODUCT FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, EXPENSES, LOST REVENUES, LOST SAVINGS, LOST PROFITS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE PURCHASE, USE OR INABILITY TO USE THE CORNWELL PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or conditions, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state. Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan. CAT2000MR 5/28/14...
