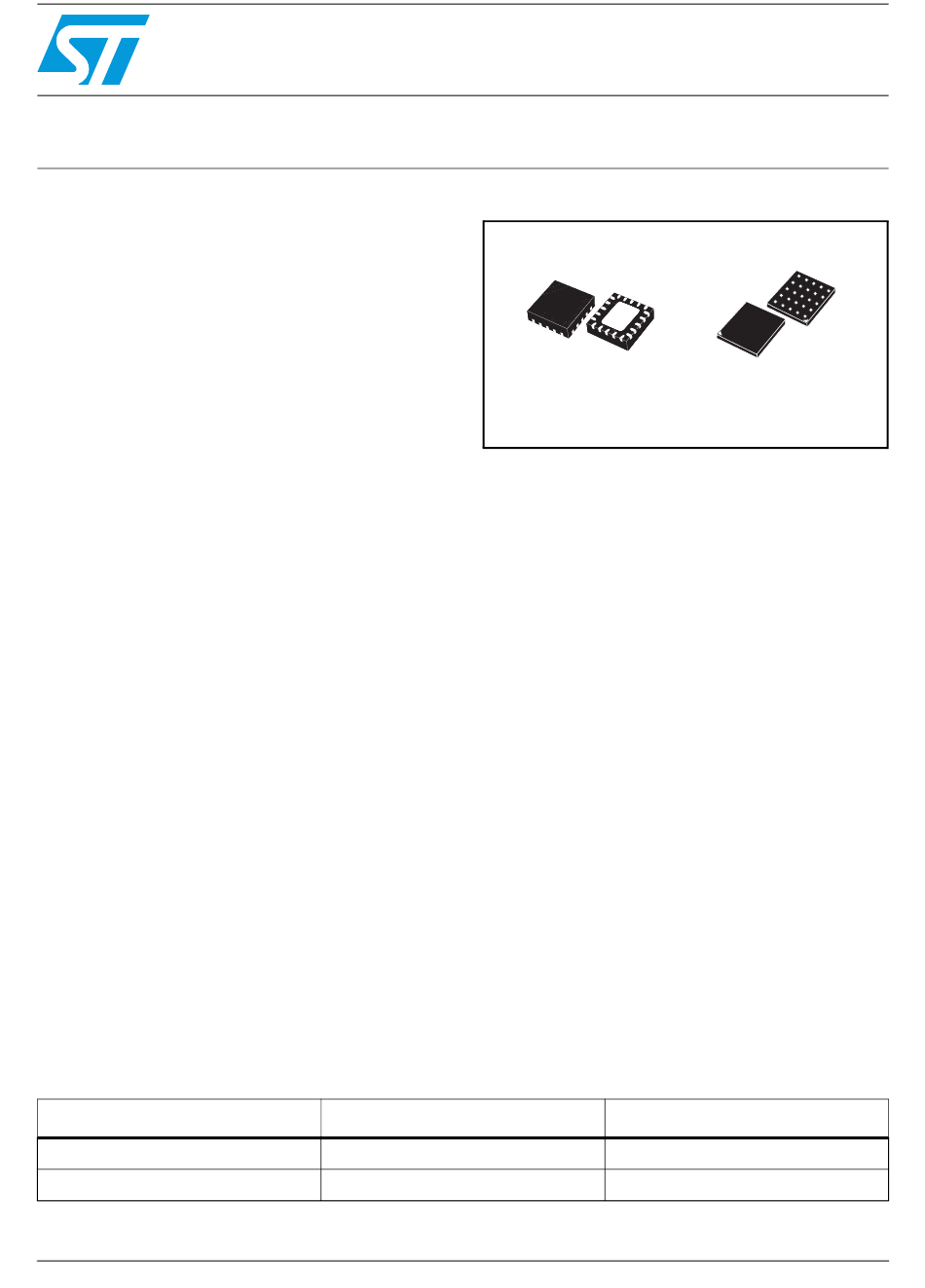

High power white led driver with i2c interface
Table of Contents

Advertisement

Quick Links

Features
Buck-boost dc/dc converter
Drives one power white LED up to 800 mA from
2.7 V to 5.5 V in QFN
Drives one power white LED up to 800 mA from
3.3 V to 5.5 V in BGA
Efficient up to 92%
Output current control
1.8 MHz typ. fixed frequency PWM
Synchronous rectification
Full I²C control
Operational modes:
– Shutdown mode
– Shutdown + NTC
– Ready mode + auxiliary red LED
– Flash mode: up to 800 mA
– Torch mode: up to 200 mA
Soft and hard triggering of flash
Flash and torch dimming with 16 exponential
values
Dimmable red LED indicator auxiliary output
Internally or externally timed flash operation
Digitally programmable safety time-out in flash
mode
LED overtemperature detection and protection
with external NTC resistor
Opened and shorted LED failure detection and
protection
Chip over temperature detection and protection
< 1 µA shutdown current
Table 1.
Device summary
Order code
STCF03PNR
STCF03TBR
1. Available on request.
September 2008
High power white LED driver with I²C interface
(1)
TFBGA25 (3x3 mm)
QFN20 (4x4)
Packages:
– QFN20 (4x4)
– TFBGA25 (3x3)
Applications
Cell phone and smart phone
Camera flashes/strobe
PDAs and digital still cameras
Description
The STCF03 is a high efficiency power supply
solution to drive a single flash LED in camera
phone, PDAs and other hand-held devices. It is a
buck - boost converter to guarantee a proper LED
current control over all possible conditions of
battery voltage and output voltage; the output
current control ensure a good current regulation
over the forward voltage spread characteristics of
the flash LED.
Thanks to the high efficiency of the converter
allows having the input current taken from the
battery remain under 1.5 A. (See
(continued))
Package
QFN20 (4x4 mm)
Rev 5
STCF03
TFBGA25 (3x3)
1: Description
Packaging
4500 parts per reel
3000 parts per reel
www.st.com
1/35
35
