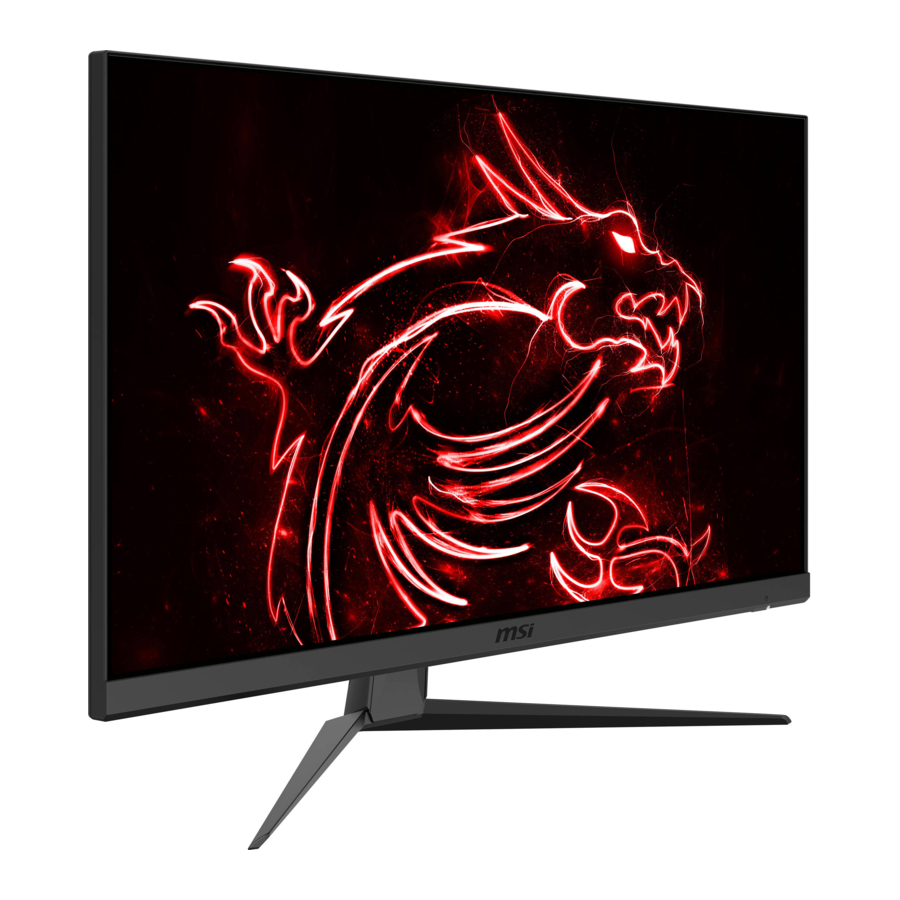

- Page 1 Optix Series LCD Monitor Optix G274 (3CC2) Optix G274R (3CC2) Optix G274RW (3CC2) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 6 Monitor Overview ....................8 Connecting the Monitor to PC ................11 OSD Setup ........................13 Navi Key ........................ 13 Hot Key ........................14 OSD Menus........................ -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Optix G274 Monitor Optix G274R Optix G274RW Quick Start Guide Documentation Registration Card... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4. - Page 5 Optix G274R/ Optix G274RW Getting Started...
-
Page 6: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ ∙ Please slightly tilt the monitor backwards before pivoting it. Optix G274 -5°... - Page 7 Optix G274R/ Optix G274RW -5° 20° 130mm 45° 45° 90° 90° Getting Started...
-
Page 8: Monitor Overview
Monitor Overview Optix G274 Getting Started... - Page 9 Optix G274R/ Optix G274RW Getting Started...
- Page 10 Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Power Button & Navi Key Cable Routing Hole HDMI 2.0 Port DisplayPort 1.2 Port Headphone Jack Power Jack...
-
Page 11: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the monitor power adapter & power cord. (Figure A) 4. Connect the power adapter to the monitor power jack. (Figure B) 5. - Page 12 Optix G274R/ Optix G274RW Getting Started...
-
Page 13: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Optix G274 OSD Setup... -
Page 14: Hot Key
Optix G274R/ Optix G274RW Up/Down/Left/Right: ∙ selecting function menus and items ∙ adjusting function values ∙ entering into/exiting from function menus Press (OK): ∙ launching the On-Screen Display (OSD) ∙ entering submenus ∙ confirming a selection or setting Hot Key ∙... -
Page 15: Osd Menus
OSD Menus ⚠ Important When receiving HDR signals, Night Vision, MPRT, Low Blue Light, HDCR, Brightness, Contrast, Color Temperature will be grayed out. Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙ Use Up or Down Button to select and preview mode effects. - Page 16 1st Level Menu 2nd/3rd Level Menu Description Response Time Normal ∙ Users can adjust Response Time in any mode. Fast ∙ Response Time will be grayed out while MPRT Sync is enabled. Fastest MPRT ∙ When MPRT is enabled, Brightness cannot be enabled and will be grayed out.
-
Page 17: Professional
1st Level Menu 2nd/3rd Level Menu Description Screen None ∙ Users can adjust Screen Assistance Assistance in any mode. Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. Professional 1st Level Menu 2nd Level Menu Description Pro Mode User ∙ Use Up or Down Button to select and preview mode effects. -
Page 18: Image
1st Level Menu 2nd Level Menu Description MPRT ∙ When MPRT is enabled, Brightness cannot be enabled and will be grayed out. ∙ HDCR and MPRT cannot be enabled simultaneously. ∙ Response time will be grayed out while MPRT is enabled. ∙... -
Page 19: Input Source
1st Level Menu 2nd/3rd Level Menu Description Screen Size Auto ∙ Users can adjust Screen Size in any mode, any resolution and any screen refresh rate. 16:9 Input Source 1st Level Menu 2nd Level Menu Description HDMI1 ∙ Users can adjust Input Source in any mode. HDMI2 Auto Scan ∙... -
Page 20: Setting
Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Users have to press the OK Button to confirm and apply the Language setting. English ∙ Language is an independent setting. Users’ own language setting will override Français the factory default. When users set Reset Deutsch to Yes, Language will not be changed. - Page 21 1st Level Menu 2nd Level Menu Description HDMI CEC ∙ HDMI CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, Xbox Series X/S, and various audio-visual devices that are CEC-capable. ∙ If HDMI CEC is set to ON: • The monitor will automatically power on when the CEC device is turned on.
-
Page 22: Specifications
Specifications Optix G274R Monitor Optix G274 Optix G274RW Size 27 inch Flat Curvature Panel Type Resolution 1920 x 1080 Aspect Ratio 16:9 Brightness 250 nits (typ.) Contrast Ratio 1000:1 Refresh Rate 170Hz Response Time 1ms (MPRT) ∙ Power Jack x1 ∙... - Page 23 Optix G274R Monitor Optix G274 Optix G274RW ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x H x D) 613.5 x 231.9 x 472.0 mm 613.4 x 196.4 x 532.0 mm 5.3 kg (net)
-
Page 24: Preset Display Modes
Preset Display Modes Optix G274 Optix G274R Standard Resolution Optix G274RW HDMI 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD... -
Page 25: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 26: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 27 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 28: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 29: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 30 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 31 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
