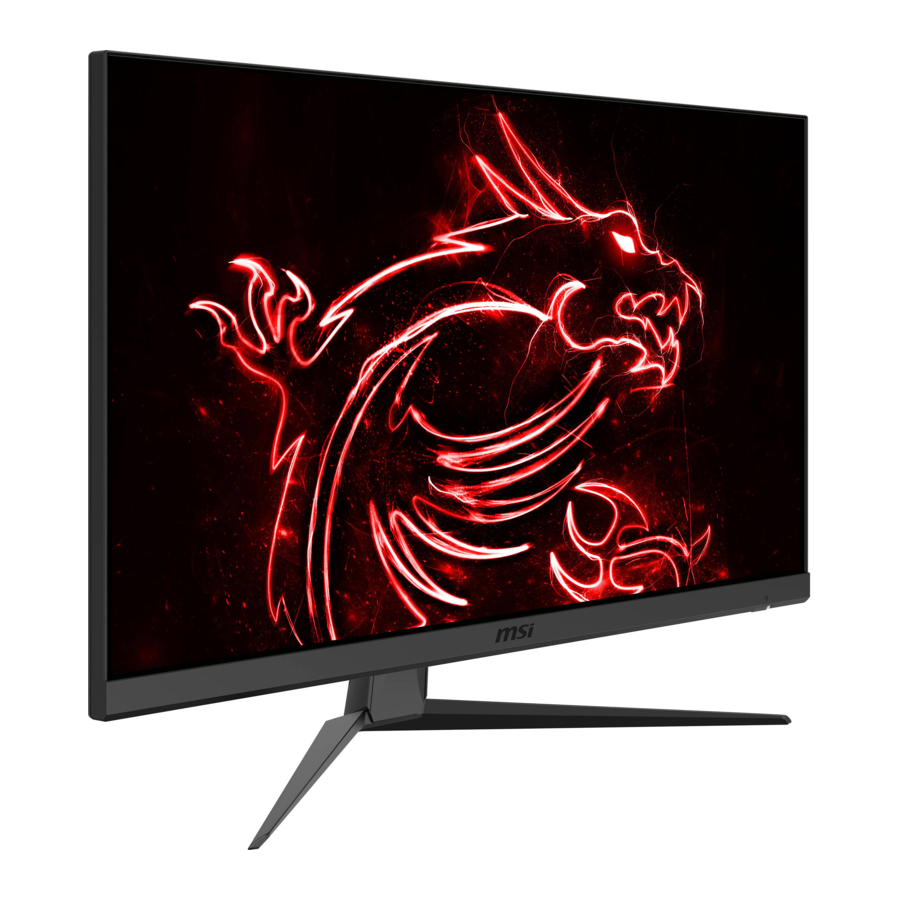

  • Page 1 Optix Series LCD Monitor Optix PAG272QR (3CB7) Optix PAG272QR2 (3CB7) Optix PAG272URV (3CB7) Optix PAG272R (3CB7)

  • Page 2: Table Of Contents

    Contents Copyright and Trademarks Notice ��������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Technical Support ���������������������������������������������������������������������������������������������������iii Safety Instructions ���������������������������������������������������������������������������������������������������iv CE Conformity ���������������������������������������������������������������������������������������������������������vi FCC-B Radio Frequency Interference Statement ���������������������������������������������������vi WEEE Statement ���������������������������������������������������������������������������������������������������vii Chemical Substances Information �������������������������������������������������������������������������vii RoHS Statement ����������������������������������������������������������������������������������������������������vii Getting Started �������������������������������������������������������������������������������1-1 Package Contents ������������������������������������������������������������������������������������������������ 1-2 Installing the Monitor Stand ����������������������������������������������������������������������������������...

  • Page 3: Copyright And Trademarks Notice

    Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied�...

  • Page 4: Safety Instructions

    Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the device or user’s manual should be noted� ◙ Refer servicing to qualified personnel only. Keep the User’s Guide that comes with the package for future reference� To prevent fire or shock hazard, keep this device away from humidity and high temperature�...
  • Page 5 Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products�...

  • Page 6: Ce Conformity

    1� this device may not cause harmful interference, and 2� this device must accept any interference received, including interference that may cause undesired operation� MSI Computer Corp� 901 Canada Court, City of Industry, CA 91748, USA (626)913-0828 www�msi�com...

  • Page 7: Weee Statement

    Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...

  • Page 9: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity� IMPORTANT • The illustrations are for reference only� Your monitor may vary in appearance� •...

  • Page 10: Package Contents

    Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Sunshade Cover (Optional) 5� Stand Screws x4 6� Power Adapter & Power Cord 7� DisplayPort Cable (Optional) 8� Quick Start Guide 9� Warranty Card 10� Registration Card 11� Rubber Plugs * Contact your place of purchase or local distributor if any of the items is damaged or missing�...

  • Page 11: Installing The Monitor Stand

    Getting Started Installing the Monitor Stand PAG272QR/ 272QR2/ 272URV IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel� The holes for installing the stand can be also used for wall mount� Please contact your dealer for proper wall mount kit�...
  • Page 12 PAG272R IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel� The holes for installing the stand can be also used for wall mount� Please contact your dealer for proper wall mount kit� 1� Align the latches of the stand to the monitor� 2�...
  • Page 13 Getting Started 4� Align the latches to place the VESA cover�...

  • Page 14: Installing The Sunshade Cover

    Installing the Sunshade Cover IMPORTANT To prevent the screen from breaking, please avoid touching and scratching display panel when adjusting monitor� 1� Take out the accessories: 3 pieces of top sunshade plates� Align the left and right plates with the middle plate, insert and slide the plates to proper position to complete the top sunshade cover installation�...
  • Page 15 Getting Started 3� Tighten the 6 screws correspondingly to secure the sunshade plates to the screen�...

  • Page 16: Adjusting The Monitor

    Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities� IMPORTANT Avoid touching the display panel when adjusting the monitor� PAG272QR/ PAG272QR2/ PAG272URV 130mm PAG272R...

  • Page 17: Monitor Overview

    Getting Started Monitor Overview PAG272QR/ PAG272QR2...
  • Page 18 PAG272URV/ PAG272R 1-10...
  • Page 19 Getting Started Power Jack HDMI 1�4/ 2�0 Port (Optional) DisplayPort 1�2/ 1�4 (Optional) Headphone Jack Navi Key Kensington Lock Power Button 1-11...

  • Page 20: Connecting The Monitor To Pc

    Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/DisplayPort cable from the monitor to your computer� 3� Assemble the monitor power adapter & power cord�(Figure A) 4� Connect the power adapter to the monitor power jack�(Figure B) 5�...

  • Page 21: Osd Setup

    OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�...

  • Page 22: Navi Key

    Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu� Your OSD function varies by models� Navi Key The Navi Key default settings are as follows� Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON)
  • Page 23 OSD Setup Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Game Mode ■ Press Middle ■ Selecting function menus Button to confirm and items selection and exit� ■ Allowing upward ■ Press Up and adjustment in function Down Buttons to values...
  • Page 24 Users may enter the OSD Menu to customize their own Navi Key Hot Keys. More Hot Key options are as below� Navi Key Hot Key Options Operations Brightness ■ Press Middle Button to save value and exit� ■ Press Up and Down Buttons to adjust� ■...

  • Page 25: Osd Setup Via Navi Key

    OSD Setup OSD Setup via Navi Key Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu� Use the Up, Down, Left, Right buttons to tune the desired function menus to suit your personal preferences� h Gaming 1st Level Menu 2nd/3rd Level Menu...
  • Page 26 1st Level Menu 2nd/3rd Level Menu Description Anti Motion Blur ■ For PAG272QR, PAG272QR2, and (OFF) PAG272R� ■ Brightness cannot be adjusted when Anti (ON) Motion Blur is set to ON� ■ When Response Time is set to Fastest with at least 75Hz Screen Refresh Rate, Anti Motion Blur will be automatically enabled�...
  • Page 27 OSD Setup 1st Level Menu 2nd/3rd Level Menu Description FreeSync ■ For PAG272QR, PAG272QR2, and (OFF) Premium PAG272R� ■ FreeSync Premium prevents screen tearing� (ON) ■ DisplayPort or HDMI default is ON and can be adjusted ON/OFF in any mode, any resolution, any input source and any screen refresh rate�...
  • Page 28 HDCR ■ Users can adjust HDCR in any Mode� (OFF) ■ HDCR enhances image quality by increasing the contrast of images� (ON) ■ When HDCR is set to ON, Brightness will be grayed out� ■ HDCR and Anti Motion Blur cannot be enabled simultaneously�...
  • Page 29 OSD Setup 1st Level Menu 2nd/3rd Level Menu Description Screen Size Auto ■ Users can adjust Screen Size in any mode, any resolution and any screen refresh rate� ■ Default is Auto� 16:9 h Input Source 1st Level Menu 2nd/3rd Level Menu Description HDMI1 Users can adjust Input Source in any Mode�...
  • Page 30 h Setting 1st Level Menu 2nd/3rd Level Menu Description Language 繁體中文 ■ Language factory default is English� ■ Users have to press the Middle Button to confirm English and apply the Language setting� Français ■ Language is an independent setting� Users’ own Deutsch language setting will override the factory default�...

  • Page 31: Appendix

    Appendix IMPORTANT All information is subject to change without prior notice�...

  • Page 32: Specifications

    Specifications Model PAG272QR PAG272QR2 PAG272URV PAG272R (3CB7) (3CB7) (3CB7) (3CB7) Size 27 inch Curvature Flat Panel Type Resolution 2560x1440 2560x1440 3840x2160 1920x1080 @165Hz @165Hz @60Hz @144Hz Aspect Ratio 16:9 Brightness 400 nits (typ�) 300 nits (typ�) 400 nits (typ�) 250 nits (typ�) Contrast Ratio 1000:1 Refresh Rate...
  • Page 33 Appendix Model PAG272QR PAG272QR2 PAG272URV PAG272R (3CB7) (3CB7) (3CB7) (3CB7) VESA Mounting ■ Plate Type: 75 x 75 mm ■ Screw Type: M4x9 mm ▶ Thread Diameter: 7 mm ▶ Thread Pitch: 7�9 mm ▶ Thread Length: 35 mm Dimension (W x H x D) 619 x 234 x 551 mm 619 x 229 x 454 mm Weight...

  • Page 34: Preset Display Modes

    Preset Display Modes Standard Resolution Optix PAG272QR (3CB7) Optix PAG272QR2 (3CB7) HDMI1 HDMI2 640x480 @60Hz 640x480 @67Hz 640x480 @72Hz 640x480 @75Hz SVGA 800x600 @56Hz 800x600 @60Hz 800x600 @72Hz 800x600 @75Hz 1024x768 @60Hz 1024x768 @70Hz 1024x768 @75Hz SXGA 1280x1024 @60Hz 1280x1024 @75Hz WXGA+ 1440x900 @60Hz WSXGA+...
  • Page 35 Appendix Video Timing 1080P @119.88/ 120Hz Resolution 480P @59.94Hz 480P @59.94/ 60Hz 480P @59.94/ 60Hz 720P @59.94/ 60Hz 1080i @59.94/ 60Hz 1080P @59.94/ 60Hz 576P @50Hz 576P @50Hz 720P @50Hz 1080i @50Hz 1080P @50Hz 1080P @29.97/ 30Hz 2160P @29.97/ 30Hz 2160P @50Hz 2160P @59.94/ 60Hz Standard...
  • Page 36 Video Timing 1080P @59.94/ 60Hz Resolution 480P @59.94Hz 480P @59.94/ 60Hz 480P @59.94/ 60Hz 720P @59.94/ 60Hz 1080i @59.94/ 60Hz 1080P @50Hz 240P @59.94/ 60Hz 576P @50Hz 720P @50Hz 1080i @50Hz 1080P @50Hz 2160P @29.97/ 30Hz 2160P @50Hz 2160P @59.94/ 60Hz Standard Resolution Optix PAG272R (3CB7)
  • Page 37 Appendix Video Timing 1080P @119.88/ 120Hz Resolution 480P @59.94Hz 480P @59.94/ 60Hz 480P @59.94/ 60Hz 720P @59.94/ 60Hz 1080i @59.94/ 60Hz 1080P @59.94/ 60Hz 576P @50Hz 576P @50Hz 720P @50Hz 1080i @50Hz 1080P @50Hz...

  • Page 38: Troubleshooting

    Troubleshooting The power LED is off. ■ Press the monitor power button again� ■ Check if the monitor power cable is properly connected� No image� ■ Check if the computer graphics card is properly installed� ■ Check if the computer and monitor are connected to electrical outlets and are turned on�...
