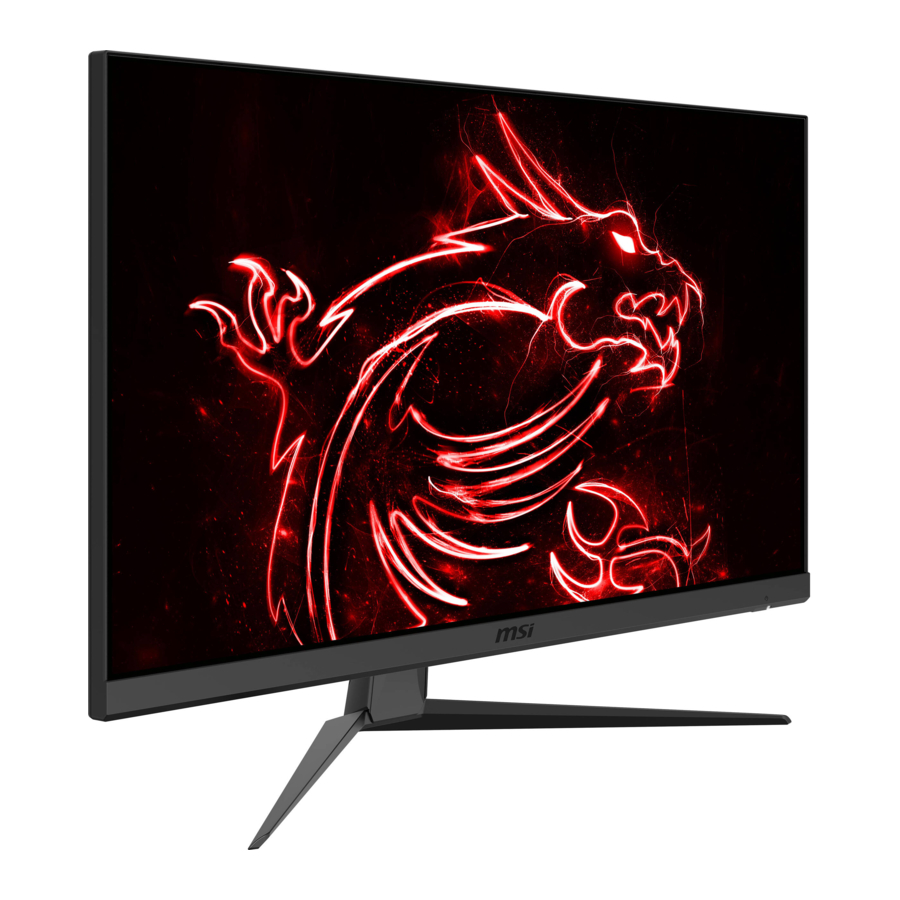

Optix Series
LCD Monitor
Optix PAG301CR (3CA4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Optix Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MSI Optix Series

  • Page 1 Optix Series LCD Monitor Optix PAG301CR (3CA4)
  • Page 2: Table Of Contents

    Contents Copyright and Trademarks Notice ��������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Technical Support ���������������������������������������������������������������������������������������������������iii Safety Instructions ���������������������������������������������������������������������������������������������������iv CE Conformity ���������������������������������������������������������������������������������������������������������vi FCC-B Radio Frequency Interference Statement ���������������������������������������������������vi WEEE Statement ���������������������������������������������������������������������������������������������������vii Chemical Substances Information �������������������������������������������������������������������������vii RoHS Statement ����������������������������������������������������������������������������������������������������vii 1. Getting Started ........... 1-1 Package Contents ������������������������������������������������������������������������������������������������ 1-2 Installing the Monitor Stand ����������������������������������������������������������������������������������...
  • Page 3: Copyright And Trademarks Notice

    Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied�...
  • Page 4: Safety Instructions

    Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the device or user’s manual should be noted� ◙ Refer servicing to qualified personnel only. Keep the User’s Guide that comes with the package for future reference� To prevent fire or shock hazard, keep this device away from humidity and high temperature�...
  • Page 5 Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products�...
  • Page 6: Ce Conformity

    1� this device may not cause harmful interference, and 2� this device must accept any interference received, including interference that may cause undesired operation� MSI Computer Corp� 901 Canada Court, City of Industry, CA 91748, USA (626)913-0828 www�msi�com...
  • Page 7: Weee Statement

    Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...
  • Page 9: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity� IMPORTANT • The illustrations are for reference only� Your monitor may vary in appearance� •...
  • Page 10: Package Contents

    Package Contents 1� Monitor 2� Stand 3� Stand Base 4� Screws Pack 5� Power Adatper & Power Cord 6� DisplayPort Cable 7� Quick Start Guide 8� Warranty Card * Contact your place of purchase or local distributor if any of the items is damaged or missing�...
  • Page 11: Installing The Monitor Stand

    Getting Started Installing the Monitor Stand 1� Fit the stand to the monitor and tighten the stand with the screws� 2� Place the protection cover� 3� Connect the base to the stand and tighten the base screw to secure the base� IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel�...
  • Page 12: Adjusting The Monitor

    Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities� IMPORTANT Avoid touching the display panel when adjusting the monitor�...
  • Page 13: Monitor Overview

    Getting Started Monitor Overview...
  • Page 15 Getting Started Power LED Lit in blue after the monitor is turned on� If no signal input, the LED will turn into red� Lit in red when the monitor is in Stand-by mode� Menu Key Select Next Item/ Decrease Key Select Previous Item/ Increase Key Enter Key Power Button...
  • Page 16: Connecting The Monitor To Pc

    Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/DisplayPort cable from the monitor to your computer� 3� Connect the power adapter to the monitor power jack� (Figure A) 4� Plug the power cord into the electrical outlet� (Figure B) 5�...
  • Page 17: Osd Setup

    OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�...
  • Page 18: Osd Key

    OSD Key The monitor comes with a set of OSD Key that helps to control the On-Screen Display (OSD) menu�...
  • Page 19 OSD Setup Without entering OSD menu, you can use these OSD keys as hot keys for quick settings� OSD Key Function Basic Operations BRIGHTNESS ■ Press button to enter this setting� ■ Press button to adjust value� ■ Press button to confirm and exit. ■...
  • Page 20: Osd Setup Menu

    OSD Setup Menu Press button to launch the On-Screen Display (OSD) main menu� In OSD screen, use buttons to tune the desired function to suit your personal preferences� These OSD keys operations are as follows� OSD Key Basic Operations ■ Launching the OSD main menu ■...
  • Page 21 OSD Setup h BRIGHTNESS 1st Level Menu 2nd/3rd Level Menu Description BRIGHTNESS 0-100 Adjust brightness� Default is 80� CONTRAST 0-100 Adjust contrast� Default is 50� STANDARD/ RTS/ FPS/ Select display mode� Default is STANDARD� TEXT/ Movie/ GAME mode ON/OFF Default is OFF� SHARPNESS Default is 2�...
  • Page 22 h OSD SETTING 1st Level Menu 2nd/3rd Level Menu Description LANGUAGE ENGLISH Select OSD language� FRANÇAIS DEUTSCH 简体中文 ITALIANO ESPAÑOL PORTUGUÊS TÜRKÇE POLSKI NEDERLANDS 日本語 한국어 OSD H� POS� 0-100 Adjust the horizontal position of OSD. Default is 50. OSD V� POS� 0-100 Adjust the vertical position of OSD�...
  • Page 23: Appendix

    Appendix IMPORTANT All information is subject to change without prior notice�...
  • Page 24: Specifications

    Specifications Model Optix PAG301CR Size 29�5 inch Curvature 1800R Panel Type Resolution 2560*1080 (Best Resolution) Aspect Ratio 21:9 Brightness (nits) Contrast Ratio 3000:1 Refresh Rate 200Hz Response Time 5 ms (MPRT) 8 ms (GTG) Input Interface HDMI 2�0 x2, DP 1�2 x2 View Angles 178°(H) , 178°(V) DCI-P3 / sRGB...
  • Page 25: Troubleshooting

    Appendix Troubleshooting The power LED is off. Check if the monitor power cable is properly connected� No image. ■ Check if the computer graphics card is properly installed� ■ Check if the computer and monitor are connected to electrical outlets and are turned on�...
