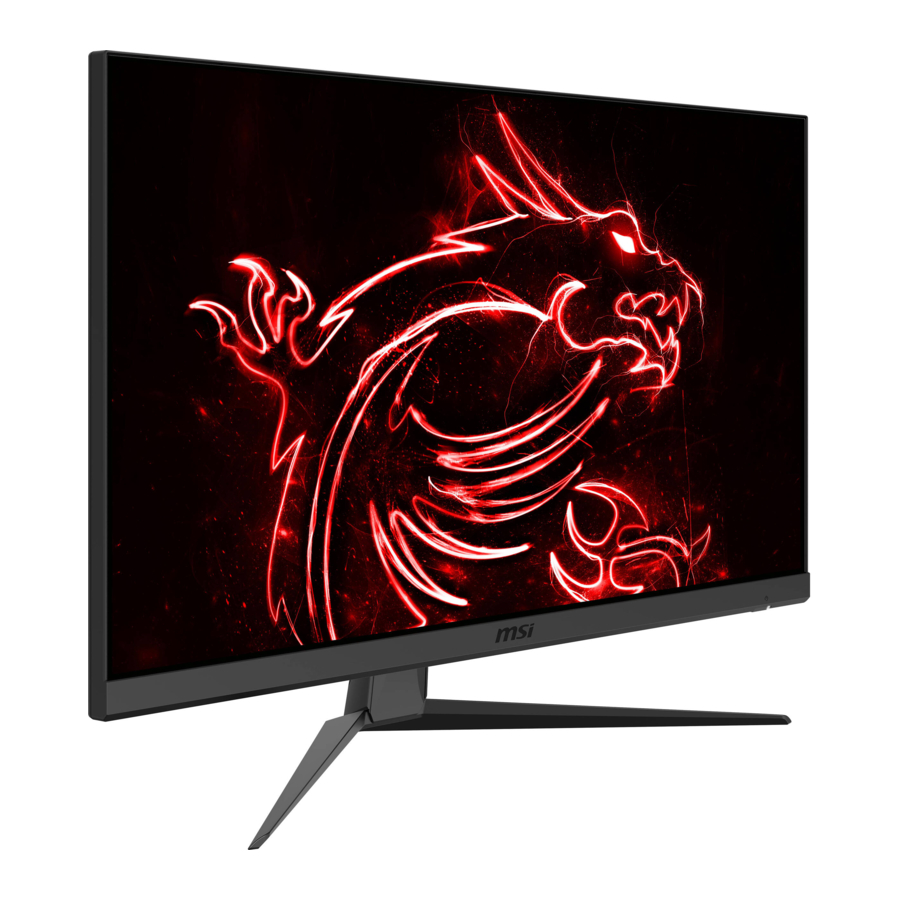

- Page 1 Optix Series LCD Monitor Optix MAG2732 （ 3CB6） Optix MAG273R2 （ 3CB6）...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 6 Monitor Overview ....................7 Connecting the Monitor to PC ................9 OSD Setup ........................10 Navi Key ........................ 10 Hot Key ........................10 OSD Menus........................ -
Page 3: Getting Started
Optix MAG2732 （ 3CB6） Monitor Optix MAG273R2 （ 3CB6） Quick Start Guide Registration Card Documentation Warranty Card MSI Reward Program Card Stand with Screw(s) Stand Base with Screw(s) Accessories Power Cord Power Adapter USB Upstream Cable (for USB Type B Upstream Port) -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand ⚠ Important ∙ Place the monitor on a soft, protected surface to avoid scratching the display panel. Do not use any sharp objects on the panel. ∙ The groove for installing the stand bracket can also be used for wall mount. Please ∙... - Page 5 Optix MAG2732 1. Leave the monitor in its protective foam packaging. Align the stand to the monitor groove. 2. Tighten the stand with screws. 3. Connect the stand base to the stand and tighten the screw to secure the stand base.
-
Page 6: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ Optix MAG2732 Optix MAG273R2 130mm Getting Started... -
Page 7: Monitor Overview
Monitor Overview Getting Started... - Page 8 Power Button Navi Key Cable Routing Hole Macro Key To activate OSD Application. Kensington Lock Power Jack USB 2.0 Type-B Upstream Port For USB Upstream Cable. ⚠ To Monitor Important Check the package for USB Upstream Cable and connect it to the PC and monitor.
-
Page 9: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the monitor power adapter & power cord. (Figure A) 4. Connect the power adapter to the monitor power jack. (Figure B) 5. -
Page 10: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/Down/Left/Right: ∙... -
Page 11: Osd Menus
OSD Menus Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙ All items can be adjusted by users. ∙ Use Up or Down Button to select and preview mode effects. Racing ∙ Press the OK Button to confirm and apply your mode type. - Page 12 1st Level Menu 2nd/3rd Level Menu Description MPRT ∙ Default is OFF. ∙ MPRT (Motion Picture Response Time) can be enabled only at Screen Refresh Rate of 85Hz or higher. ∙ When MPRT is enabled, Panel Response Time must meet 1ms MPRT.
-
Page 13: Professional
1st Level Menu 2nd/3rd Level Menu Description Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ DisplayPort or HDMI default is OFF and can be adjusted ON/OFF in any mode, any resolution, any input source and any screen refresh rate. ∙ MPRT will be disabled if Adaptive- Sync is enabled. -
Page 14: Image
1st Level Menu 2nd Level Menu Description Image ∙ Image Enhancement enhances image Enhancement edges to improve their acutance. Weak ∙ Users can adjust Image Enhancement in any mode. Medium Strong Strongest Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙... -
Page 15: Input Source
Input Source 1st Level Menu 2nd Level Menu Description HDMI1 ∙ Users can adjust Input Source in any mode. HDMI2 Auto Scan ∙ Users can use the Navi Key to select Input Source at below status: • While “Auto Scan” is set to “OFF” with the monitor at power saving mode;... -
Page 16: Setting
Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Language factory default is English. ∙ Users have to press the OK Button to English confirm and apply the Language setting. Français ∙ Language is an independent setting. Users’ own language setting will override Deutsch the factory default. - Page 17 1st Level Menu 2nd Level Menu Description ECO Mode ∙ ECO Mode adjusts the monitor backlight to improve energy efficiency. ∙ When ECO Mode is set to ON: • Brightness curve will be adjusted. • Game Mode, Pro Mode, HDCR and MPRT will be grayed out.
-
Page 18: Specifications
Specifications Model Optix MAG2732 Optix MAG273R2 Size 27 inch Panel Type Flat Panel Type Resolution 1920 x 1080 @165Hz Aspect Ratio 16:9 Brightness (nits) 250 (typ.) Contrast Ratio 1000:1 165Hz Refresh Rate Response Time 1ms (MPRT) ∙ HDMI x2 Input Interface ∙... - Page 19 Model Optix MAG2732 Optix MAG273R2 ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x H x D) 616.8 x 447 x 228.63mm 616.8 x 551.4 x 266.5mm 5.15 Kg (net)
-
Page 20: Preset Display Modes
Preset Display Modes Optix MAG2732/ Optix MAG273R2 Standard Resolution HDMI 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD 1920x1080 @60Hz... -
Page 21: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 22: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 23 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 24: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 25: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 26 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 27 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
