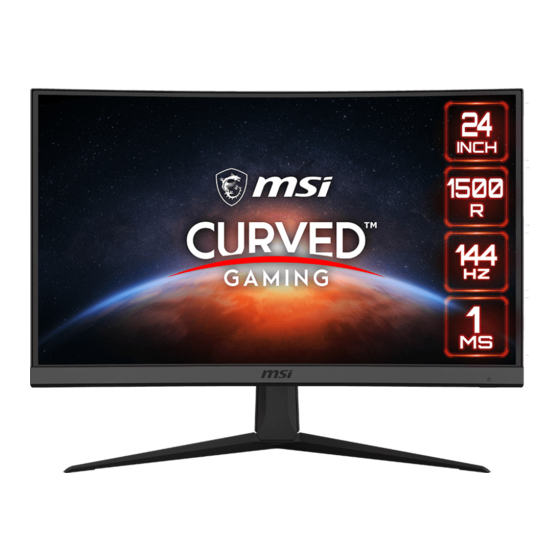

- Page 1 Optix Series LCD Monitor Optix G24C6 (3BA0) Optix G24C6P (3BA0) Optix G27C6 (3CA9) Optix G27C6P (3CA9)
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand (Optix G24C6 / Optix G27C6) ........4 Installing the Monitor Stand (Optix G24C6P / Optix G27C6P) ........ 5 Adjusting the Monitor ..................... 6 Monitor Overview ....................7 Connecting the Monitor to PC ................ -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor Optix G24C6 / Optix G24C6P / Optix G27C6 / Optix G27C6P Quick Start Guide Documentation Warranty Card... -
Page 4: Installing The Monitor Stand (Optix G24C6 / Optix G27C6)
Installing the Monitor Stand (Optix G24C6 / Optix G27C6) 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4. -
Page 5: Installing The Monitor Stand (Optix G24C6P / Optix G27C6P)
Installing the Monitor Stand (Optix G24C6P / Optix G27C6P) 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4. -
Page 6: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ Optix G24C6 / Optix G27C6 Optix G24C6P / Optix G27C6P 130mm Getting Started... -
Page 7: Monitor Overview
Monitor Overview Optix G24C6 / Optix G27C6 Getting Started... - Page 8 Optix G24C6P / Optix G27C6P Getting Started...
- Page 9 Power Button Navi Key Kensington Lock Power Jack HDMI Port DisplayPort Headphone Jack Getting Started...
-
Page 10: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the monitor power adapter & power cord. (Figure A) 4. Connect the power adapter to the monitor power jack. (Figure B) 5. -
Page 11: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/Down/Left/Right: ∙... -
Page 12: Osd Menus
OSD Menus Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙ All items can be adjusted by users. ∙ Use Up or Down Button to select and preview mode effects. Racing ∙ Press the OK Button to confirm and apply your mode type. - Page 13 1st Level Menu 2nd/3rd Level Menu Description MPRT ∙ When MPRT is enabled, Brightness cannot be enabled and will be grayed out. ∙ MPRT and HDCR cannot be enabled simultaneously. Refresh Rate Location Left Top ∙ Users can adjust Refresh Rate in any mode.
-
Page 14: Professional
1st Level Menu 2nd/3rd Level Menu Description FreeSync ∙ FreeSync Premium prevents screen Premium tearing. ∙ DisplayPort or HDMI default is OFF and can be adjusted ON/OFF in any mode, any resolution, any input source and any screen refresh rate. ∙... -
Page 15: Image
1st Level Menu 2nd Level Menu Description Image ∙ Image Enhancement enhances image Enhancement edges to improve their acutance. Weak ∙ Users can adjust Image Enhancement in any mode. Medium Strong Strongest Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙... -
Page 16: Input Source
Input Source 1st Level Menu 2nd Level Menu Description HDMI1 ∙ Users can adjust Input Source in any mode. HDMI2 Auto Scan ∙ Users can use the Navi Key to select Input Source at below status: • While “Auto Scan” is set to “OFF” with the monitor at power saving mode;... -
Page 17: Setting
Setting 1st Level Menu 2nd Level Menu Description 繁體中文 Language ∙ Language factory default is English. English ∙ Users have to press the OK Button to confirm and apply the Language setting. Français ∙ Language is an independent setting. Deutsch Users’... -
Page 18: Specifications
Specifications Optix Optix Optix Optix Model G24C6 G24C6P G27C6 G27C6P (3BA0) (3BA0) (3CA9) (3CA9) Size 24 inch 27 inch Curvature 1500R Panel Type Resolution 1920 x 1080 @144Hz 1920 x 1080 @165Hz 16:9 Aspect Ratio Brightness (nits) 250 (typ.) Contrast Ratio 3000:1 Refresh Rate 144Hz... - Page 19 Optix Optix Optix Optix Model G24C6 G24C6P G27C6 G27C6P (3BA0) (3BA0) (3CA9) (3CA9) ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm 536.7 x 536.7 x 611.5 x...
-
Page 20: Preset Display Modes
Preset Display Modes Optix G24C6 (3BA0) Optix G27C6 (3CA9) Optix G24C6P (3BA0) Optix G27C6P (3CA9) Standard Resolution HDMI / DP HDMI / DP 640x480 @60Hz 640x480 @67Hz 640x480 @72Hz 640x480 @75Hz Dos-Mode 720x480@60Hz 720x576@50Hz SVGA 800x600 @56Hz 800x600 @60Hz 800x600 @72Hz 800x600 @75Hz 1024x768 @60Hz 1024x768 @70Hz... -
Page 21: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 22: Safety Instructions
Safety Instructions ∙ Read the safety instructions carefully and thoroughly. ∙ All cautions and warnings on the device or user’s manual should be noted. ∙ Refer servicing to qualified personnel only. ∙ Keep the User’s Guide that comes with the package for future reference. ∙... -
Page 23: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 24 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 25 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
