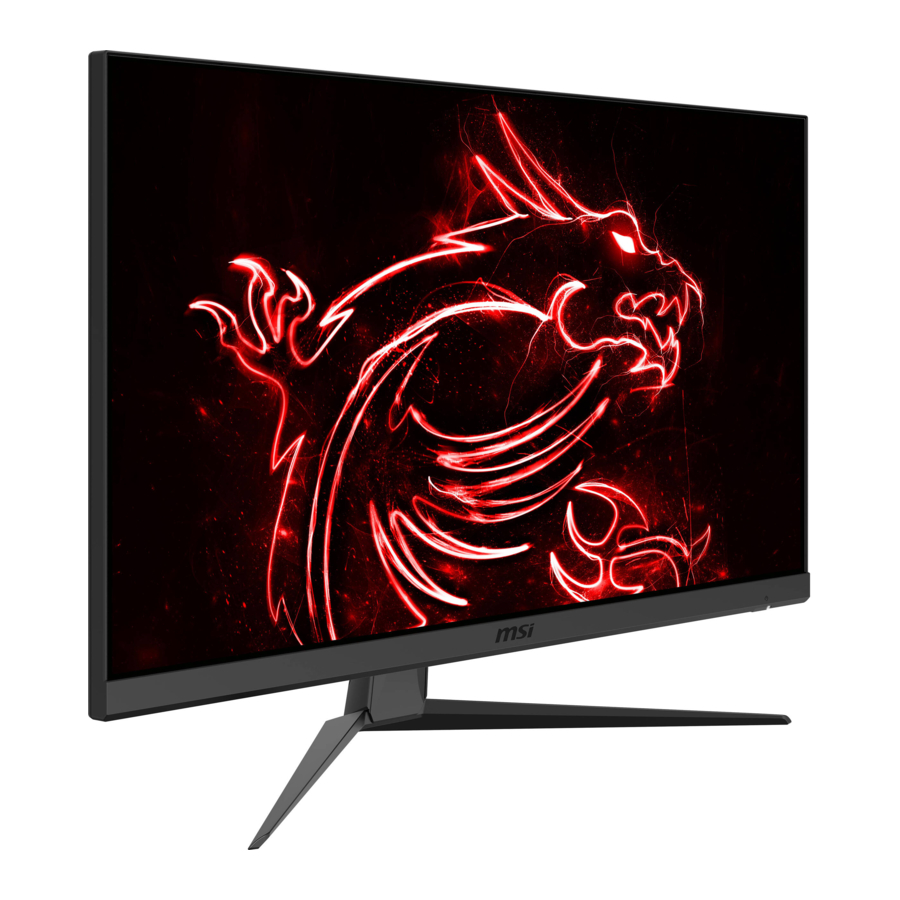

  • Page 1 Optix Series LCD Monitor Optix AG32CV (3KA0) Optix AG32C (3KA0)
  • Page 2: Table Of Contents

    Contents Copyright and Trademarks Notice ��������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Technical Support ���������������������������������������������������������������������������������������������������iii Safety Instructions ���������������������������������������������������������������������������������������������������iv CE Conformity ���������������������������������������������������������������������������������������������������������vi FCC-B Radio Frequency Interference Statement ���������������������������������������������������vi WEEE Statement ���������������������������������������������������������������������������������������������������vii Chemical Substances Information �������������������������������������������������������������������������vii RoHS Statement ����������������������������������������������������������������������������������������������������vii Getting Started ������������������������������������������������������� 1-1 Package Contents ������������������������������������������������������������������������������������������������ 1-2 Installing the Monitor Stand ����������������������������������������������������������������������������������...
  • Page 3: Copyright And Trademarks Notice

    Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied�...
  • Page 4: Safety Instructions

    Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the device or user’s manual should be noted� ◙ Refer servicing to qualified personnel only. Keep the User’s Guide that comes with the package for future reference� To prevent fire or shock hazard, keep this device away from humidity and high temperature�...
  • Page 5 Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products�...
  • Page 6: Ce Conformity

    1� this device may not cause harmful interference, and 2� this device must accept any interference received, including interference that may cause undesired operation� MSI Computer Corp� 901 Canada Court, City of Industry, CA 91748, USA (626)913-0828 www�msi�com...
  • Page 7: Weee Statement

    Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...
  • Page 9: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity� IMPORTANT • The illustrations are for reference only� Your monitor may vary in appearance� •...
  • Page 10: Package Contents

    Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Power Cord 5� HDMI Cable (Optional) 6� DisplayPort Cable (Optional) 7� DVI-D Cable (Optional) 8� Quick Start Guide 9� Warranty Card * Contact your place of purchase or local distributor if any of the items is damaged or missing�...
  • Page 11: Installing The Monitor Stand

    Getting Started Installing the Monitor Stand 1� Fit the stand to the monitor and tighten the stand with the screws� 2� Connect the base to the stand and tighten the base screw to secure the base� 3� Place the protection cover� IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel�...
  • Page 12: Adjusting The Monitor

    Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities� IMPORTANT Avoid touching the display panel when adjusting the monitor�...
  • Page 13: Monitor Overview

    Getting Started Monitor Overview...
  • Page 14 Menu Key Select Key Select Key Enter Key Power Button LED Indicator: Blue: On Blinking Blue: Standby DVI-D Port HDMI Port DisplayPort Power Jack...
  • Page 15: Connecting The Monitor To Pc

    Getting Started Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the DVI-D/HDMI/DisplayPort cable from the monitor to your computer� 3� Assemble the monitor power adapter & power cord.(Figure A) 4� Connect the power cord to the monitor power jack� (Figure B) 5�...
  • Page 17: Osd Setup

    OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�...
  • Page 18: Osd Key

    OSD Key The monitor comes with a set of OSD Key that helps to control the On-Screen Display (OSD) menu�...
  • Page 19 OSD Setup Without entering OSD menu, you can use these OSD keys as hot keys for quick seetings� OSD Key Function Basic Operations Game Mode ■ Press button to enter this setting� ■ Press button to select� ■ Press button to confirm and exit. Screen Assistance ■...
  • Page 20: Osd Setup Menu

    OSD Setup Menu Press button to launch the On-Screen Display (OSD) main menu� In OSD screen, buttons to tune the desired function to suit your personal preferences� These OSD keys operations are as follows� OSD Key Basic Operations ■ Exiting the current menu ■...
  • Page 21 OSD Setup h GAMING 1st Level Menu 2nd/3rd Level Menu Description Game Mode User User mode� First person shooting game mode� Racing Racing game mode� Strategic game mode� RPG game mode� Night Vision ■ This function optimizes background brightness and is recommended for FPS games� Normal Strong Strongest...
  • Page 22 1st Level Menu 2nd/3rd Level Menu Description Alarm Clock Location Left Top ■ Users can adjust Alarm Clock in any Mode� ■ Default Alarm Clock Location is Left Top� Right Top Users can select their own location� Left Bottom Right Bottom Customize 15:00 00:01~99:59...
  • Page 23 OSD Setup h Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ■ Users can adjust Brightness in User, RTS, RPG and Reader mode� Contrast 0-100 ■ Users can adjust Contrast in any Mode� Sharpness ■ Users can adjust Sharpness in any Mode� ■...
  • Page 24 h Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ■ Language factory default is English� ■ Users have to press the Middle Button to confirm English and apply the Language setting� Français ■ Language is an independent setting� Users’ own Deutsch language setting will override the factory default�...
  • Page 25: Appendix

    Appendix IMPORTANT All information is subject to change without prior notice�...
  • Page 26: Specifications

    Specifications Model Optix AG32CV (3KA0) / Optix AG32C (3KA0) Size 31�5 inch Curvature 1800R Panel Type Resolution 1920 x 1080@165Hz Aspect Ratio 16:9 Brightness (nits) Contrast Ratio 3000:1 Refresh Rate 165Hz Response Time Input Interface DVI-D x 1, HDMI 2�0 x1, DP x1 View Angles 178°(H) , 178°(V) DCI-P3/ sRGB...
  • Page 27: Preset Display Modes

    Appendix Preset Display Modes Optix AG32CV (3KA0) / Optix AG32C (3KA0) Standard Resolution HDMI / DP DVI-D 640x480 @60Hz 640x480 @67Hz 640x480 @72Hz 640x480 @75Hz Dos-Mode 720x400@70Hz 720x480@60Hz 720x576@50Hz SVGA 800x600 @56Hz 800x600 @60Hz 800x600 @72Hz 800x600 @75Hz 1024x768 @60Hz 1024x768 @70Hz 1024x768 @75Hz SXGA...
  • Page 28: Troubleshooting

    Troubleshooting The power LED is off. ■ Press the monitor power button again� ■ Check if the monitor power cable is properly connected� No image. ■ Check if the computer graphics card is properly installed� ■ Check if the computer and monitor are connected to electrical outlets and are turned on�...
