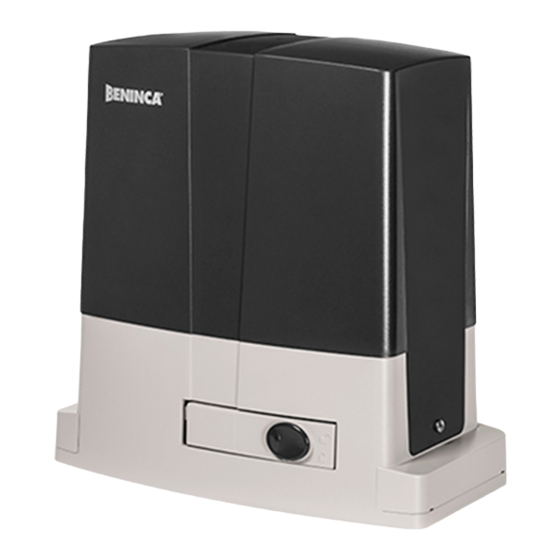

Beninca BULL 5M User Manual
Hide thumbs
Also See for BULL 5M:
- Manual (42 pages) ,
- Operating instructions and spare parts catalogue (33 pages) ,
- Manual (16 pages)
Related Manuals for Beninca BULL 5M
Summary of Contents for Beninca BULL 5M

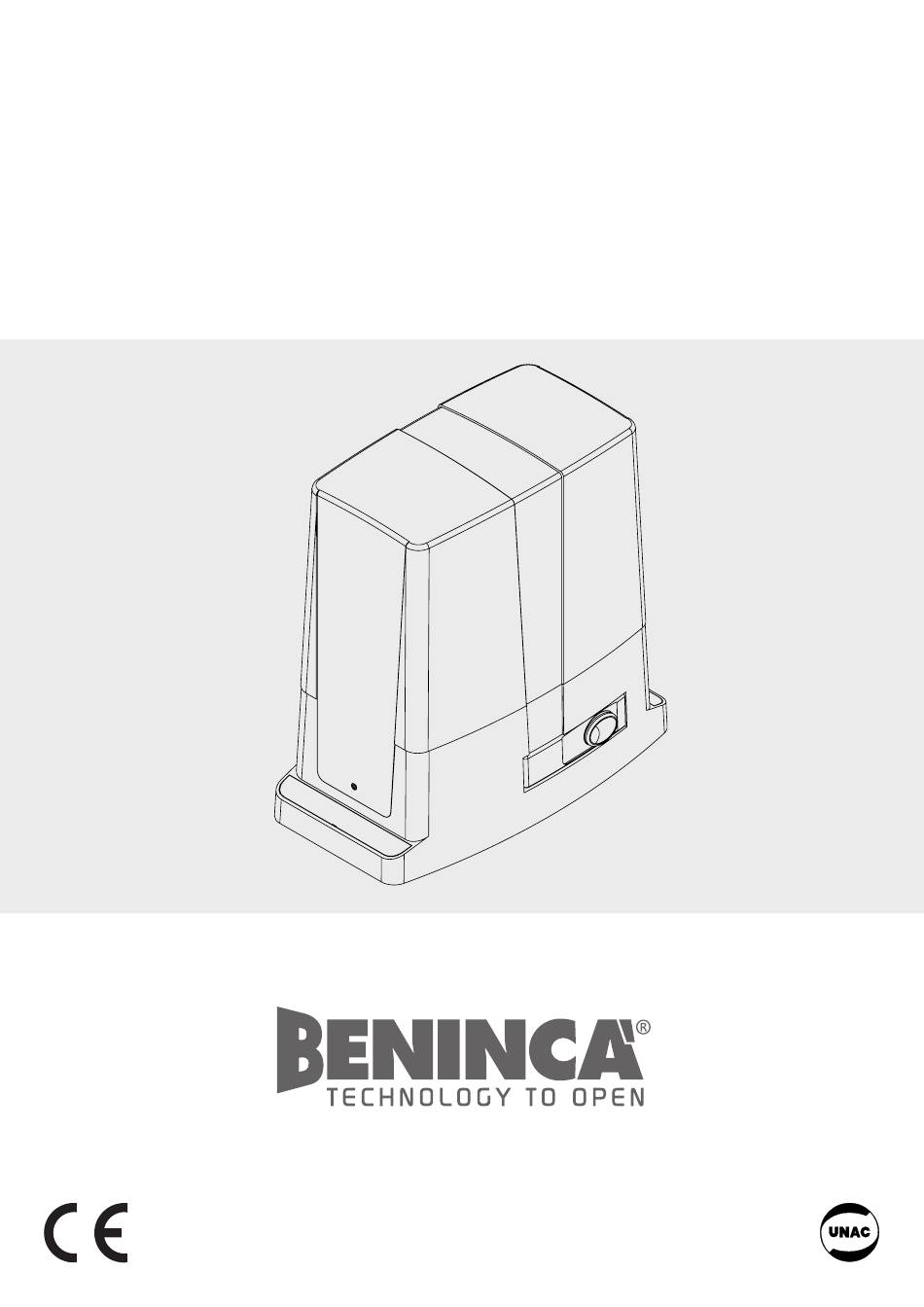

- Page 1 L854200293 03/2021 rev. 0 BULL 5M - BULL 5M.S BULL 8M - BULL 8 M.S BULL 5 OM - BULL 5 OM.S BULL 8 OM - BULL 8 OM.S UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 3 24mm max 20mm...
- Page 4 RI.M4P RI.M4Z 78-98 mm 103 mm ≈1 mm min = 100 mm min = 0 mm max = 120 mm max= 20 mm...
- Page 5 K Max 35 mm 3 mm 74 mm 35 mm 63 mm BULL 5M.S BULL 5OM.S BULL 8M.S BULL 8OM.S...
-
Page 7: General Information
This automatic system, with 230Vac single-phase power supply for sliding FIG.1 gates, is available in the following versions: Overall dimensions of the gear motor expressed in mm. BULL 5M/OM POSITIONING OF THE FOUNDATION PLATE for gates with maximum weight equal to 500kg FIG.2-3-4-5 BULL 8M/8OM It is very important to keep to dimension X shown in Fig.2. - Page 8 N.B.: The limit switch bracket should be positioned so that the gate can be Key selector or digital keyboard stopped without hitting the mechanical stopper. Flashing light Antenna SPECIFICATIONS BULL 5M BULL 5OM BULL 8M BULL 8OM Power supply 230Vac 50Hz...
-
Page 9: Manutenzione
BULL ISTRUZIONI PER L’UTILIZZATORE USER’S HANDBOOK NORME DI SICUREZZA SAFETY MEASURES • Non sostare nella zona di movimento dell'anta. • Do not stand within the gate movement area. • Non lasciare che i bambini giochino con i comandi o in prossimità •... - Page 10 BULL 5M BULL 8M BULL 8M-CORE BULL 5OM BULL 8OM Ref. Note Code Code Code Code Code 9760021 9760021 9760021 9760021 9760021 MAG.E 9686702 9686510 9686510 9688216 9686510 9686770 9686770 9686770 9686770 9686770 9686328 9686328 9686328 9686328 9686328 9686329 9686329...
- Page 11 Declare that the DOC is issued under our sole responsibility and belongs to the following product: Modello/Tipo: Model/Product: BULL 5M / BULL 5M.S / BULL 5 OM / BULL 5 OM.S BULL 5M / BULL 5M.S / BULL 5 OM / BULL 5 OM.S Tipo di prodotto:...
- Page 12 Oświadcza, że dokument został wydany na własną odpowiedzialność i dotyczy produktu: Modelo/Tipo: Model/Typ: BULL 5M / BULL 5M.S / BULL 5 OM / BULL 5 OM.S BULL 5M / BULL 5M.S / BULL 5 OM / BULL 5 OM.S Tipo de producto: Rodzaj produktu: Motorreductor electromecánico 230Vac para portones correderos...
