Powercase Quick Installation Guide
1. Introduction

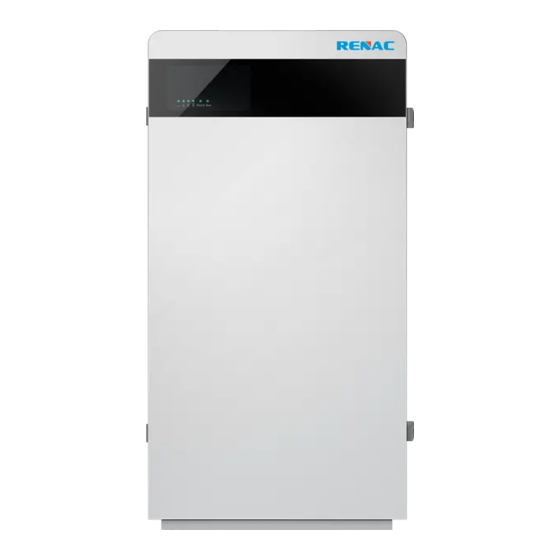

Powercase is a battery box which is compatible with RENAC hybrid inverter (ESC Series). Configured with powercase,
customers just need to connect several wires between inverter and Powercase / battery. And one hybrid inverter can be
connected 2 powercases total 14.32kWh.

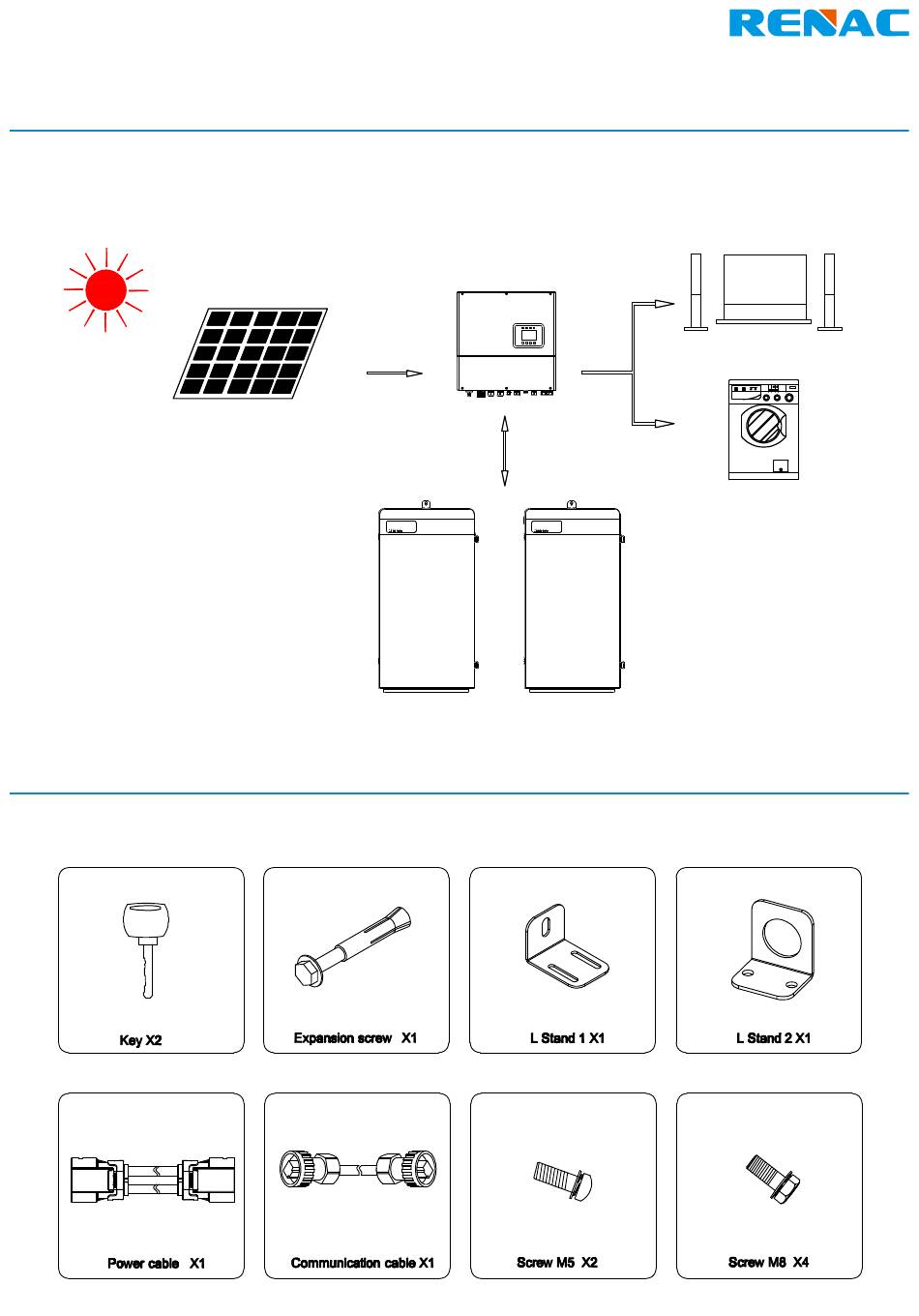

2. Packing List
Check that if there is any distortion or impaired during transportation.
Main powercase accessories:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renac ESC Series
Summary of Contents for Renac ESC Series
- Page 1 Powercase Quick Installation Guide 1. Introduction Powercase is a battery box which is compatible with RENAC hybrid inverter (ESC Series). Configured with powercase, customers just need to connect several wires between inverter and Powercase / battery. And one hybrid inverter can be connected 2 powercases total 14.32kWh.
- Page 2 Slave powercase accessories: 3. Installation (1 Powercase 7.16kWh) 3.1 Mounting Fix the cabinet on the wall. If you install two L Stand 2 for powercase, it will help you to fix the cabinet and make the installation more convenient.
- Page 3 3.2 Open the box Unlock and open the cabinet as follow. 3.3. Set battery Address Set the ADD switch of the main battery to 0001, set the slave battery to 0002. 3.4 Wire connection 3.4.1 Inner Wire connection Plug the battery cables as below figure shown, the color of positive cable is red, the negative cable is black.
- Page 4 3.4.2 Outer Wire connection Step1. Plug the power cable (the length is 80cm) into the battery port of power case. Step2. Install the other side of the cable to the battery port of inverter (The color of positive cable is red, the negative cable is black) and install the battery communication cable (the blue cable is the communication cable).
- Page 5 Turn on the breaker and switch on the power button. 4. Installation (2 Powercases 14.32kWh) One RENAC hybrid inverter can be connected 2 powercases in parallel for a total of 14.32 kWh. 4.1 Connect the inner wires for slave powercase as below.
- Page 6 Overview of the installation with 2 powercases: Slave cabinet Main cabinet 4.3 Set the battery address for two powercases. Set the ADD switch of the main Powercase to 0001,0002 Set the ADD switch of the slave Powercase to 0003,0004 Below are the details for the settings: ADD Switch Settings Item Top Battery...
