Quick Installation Guide
Powercase

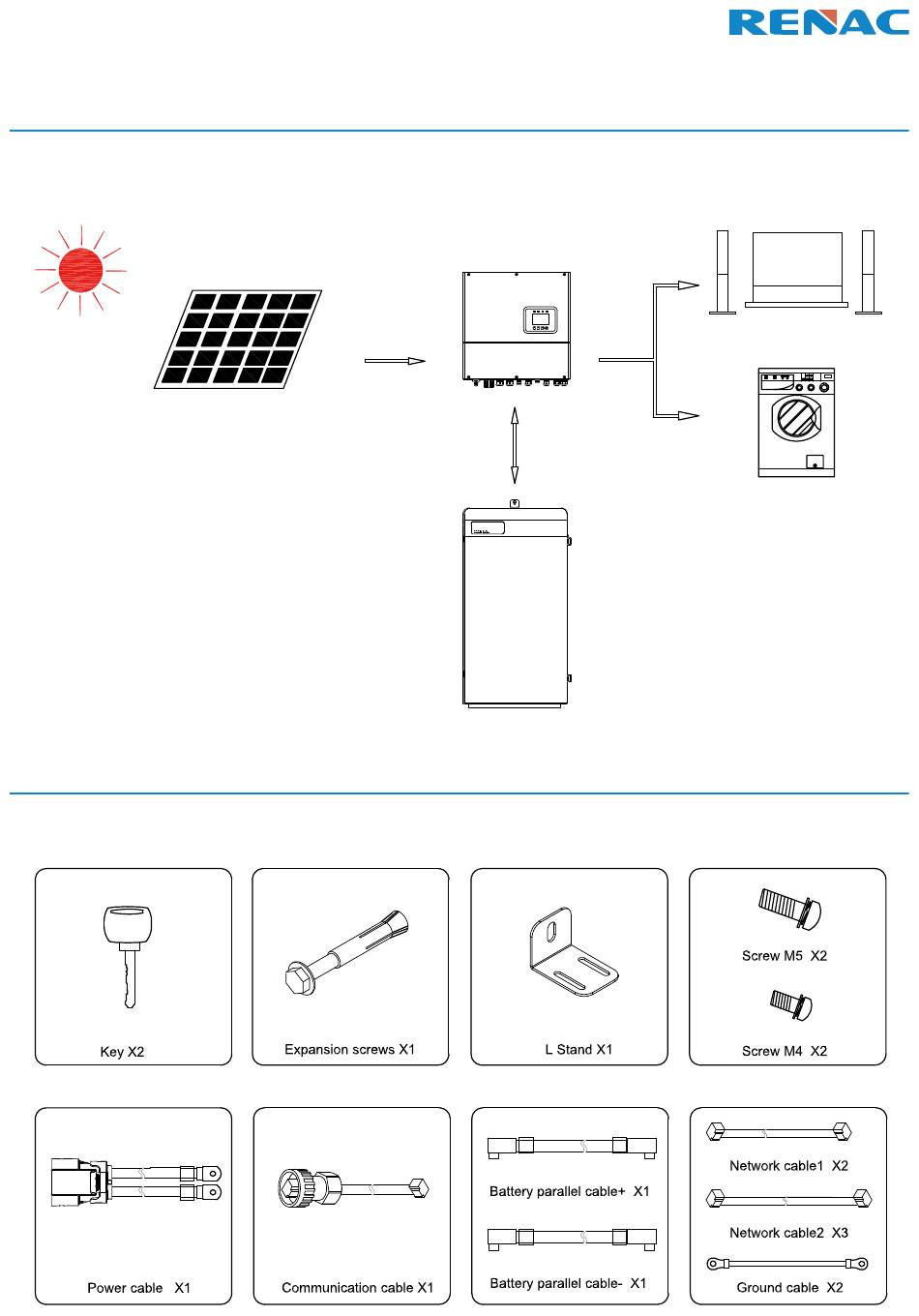

1. Introduction

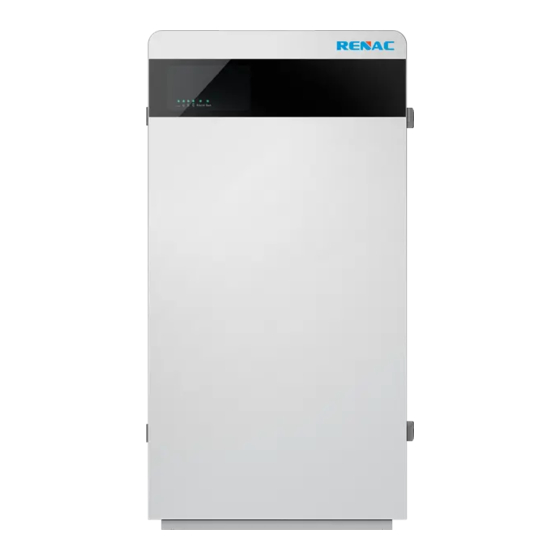

Powercase is a battery box which is compatible with RENAC hybrid inverter (ESC Series). Configured with powercase,
customers just need to connect several wires between inverter and powercase / battery.
2. Packing List
Check that if there is any distortion or impaired during transportation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renac ESC Series
Summary of Contents for Renac ESC Series
- Page 1 Quick Installation Guide Powercase 1. Introduction Powercase is a battery box which is compatible with RENAC hybrid inverter (ESC Series). Configured with powercase, customers just need to connect several wires between inverter and powercase / battery. 2. Packing List Check that if there is any distortion or impaired during transportation.
- Page 2 3. Mounting Fix the cabinet on the wall. 4. Open the box Unscrew screws and open the cabinet as follow. 5. Installation 5.1 Put the battery in the cabinet, set the ADD switch of the main battery to 1, set the slave battery to 2. Remark: When the battery is put into the cabinet, you need to push the battery to the left side of cabinet.
- Page 3 5.2 Wire connection 5.2.1 Inner Wire connection Step1. Plug the communication cable into the RS485/CANS port of battery. Function CANH CANL Step2. Plug the battery cables (Comes with the cabinet) into the battery power port. The color of positive cable is red, the negative cable is black.
- Page 4 Step3. Connect battery 1 and battery 2 with parallel cables. The color of positive cable is red, the negative cable is black, and the blue cable is the communication cable. Step4. Install the inner ground cables and close cover of the cabinet.
- Page 5 5.2.2 Outer Wire connection Step1. Plug the power cable (the length is 80cm) into the battery port of power case. Step2. Install the other side of the cable to the battery port of inverter (The color of positive cable is red, the negative cable is black) and install the battery communication cable (the blue cable is the communication cable).
- Page 6 6. Operation of power case Open the lid, the breaker is in this place. 422-00066-00...
