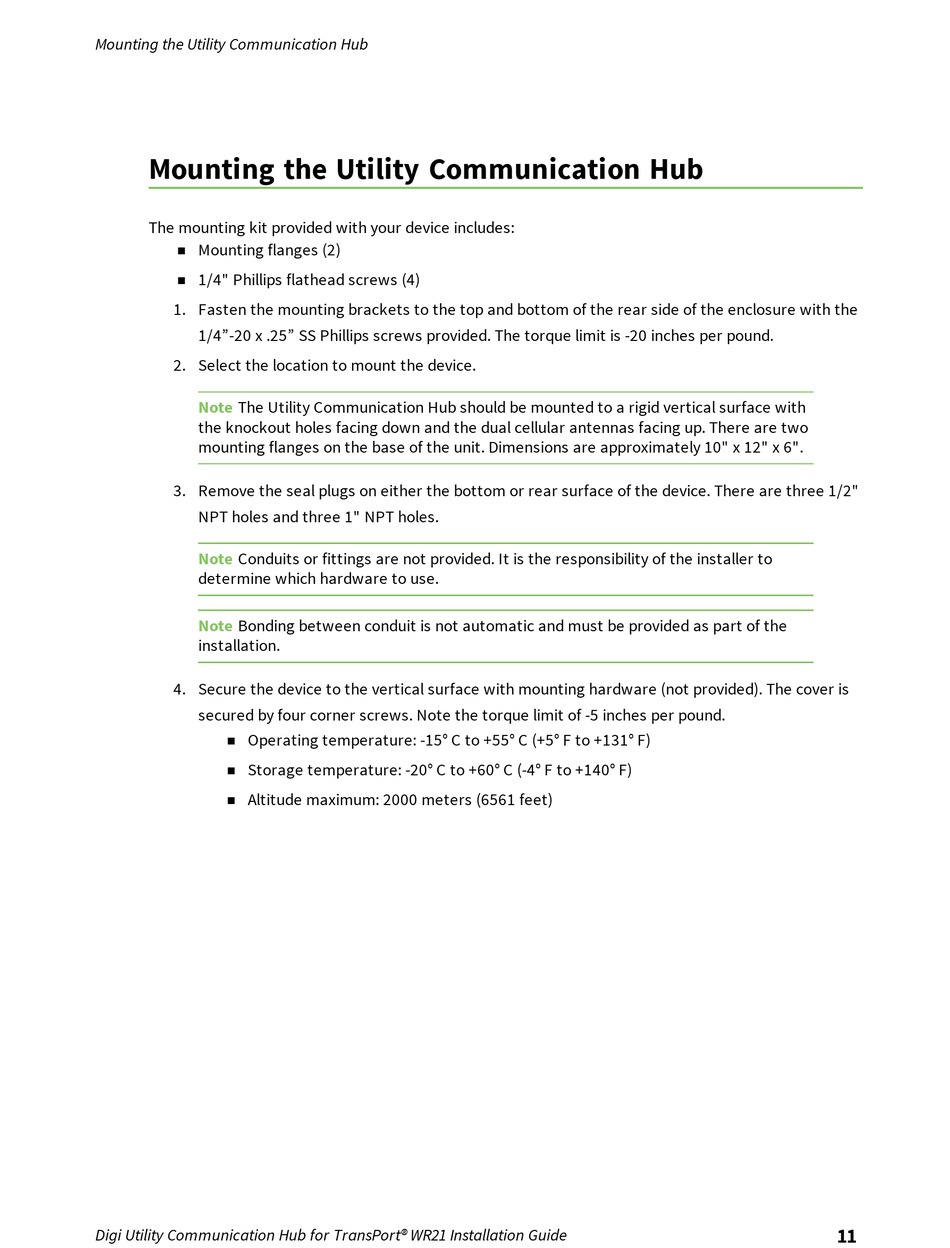

Mounting the Utility Communication Hub

Mounting the Utility Communication Hub
The mounting kit provided with your device includes:
Mounting flanges (2)
n
1/4" Phillips flathead screws (4)
n
1. Fasten the mounting brackets to the top and bottom of the rear side of the enclosure with the
1/4"-20 x .25" SS Phillips screws provided. The torque limit is -20 inches per pound.
2. Select the location to mount the device.
Note The Utility Communication Hub should be mounted to a rigid vertical surface with
the knockout holes facing down and the dual cellular antennas facing up. There are two
mounting flanges on the base of the unit. Dimensions are approximately 10" x 12" x 6".
3. Remove the seal plugs on either the bottom or rear surface of the device. There are three 1/2"
NPT holes and three 1" NPT holes.
Note Conduits or fittings are not provided. It is the responsibility of the installer to
determine which hardware to use.
Note Bonding between conduit is not automatic and must be provided as part of the
installation.
4. Secure the device to the vertical surface with mounting hardware (not provided). The cover is
secured by four corner screws. Note the torque limit of -5 inches per pound.
Operating temperature: -15° C to +55° C (+5° F to +131° F)
n
Storage temperature: -20° C to +60° C (-4° F to +140° F)
n
Altitude maximum: 2000 meters (6561 feet)
n
