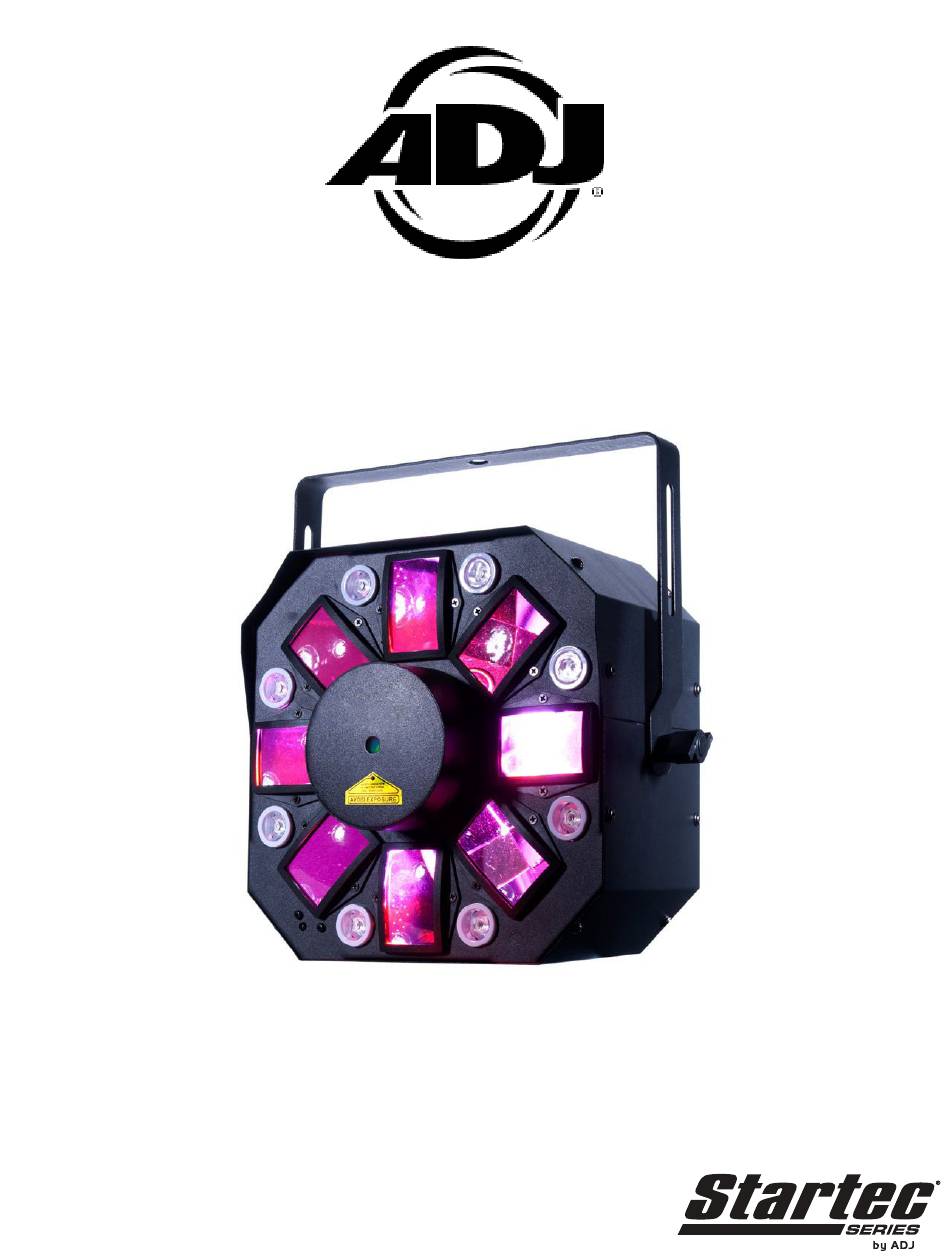

STINGER II
User Manual
Rev. 03/31/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Startec Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ Startec Series

Summary of Contents for ADJ Startec Series

  • Page 1 STINGER II User Manual Rev. 03/31/2022...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS General Information Limited Warranty (USA Only) General Instructions | Features | Warranty Registration | Handling Precautions Safety Precautions Laser Warning and Safety Set Up Installation Laser Warning Labels System Menu Operation Primaty-Secondary Set Up | Power Cord Daisy Chain UC IR/Airstream Control DMX Traits Fuse Replacement | Cleaning | Trouble Shooting...

  • Page 4: General Information

    GENERAL INFORMATION Unpacking: Thank you for purchasing the Stinger II by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to have been dam- aged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact.

  • Page 5: Limited Warranty (Usa Only)

    LIMITED WARRANTY (USA ONLY) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.

  • Page 6: Handling Precautions

    During operation the housing may become extremely hot. Avoid touching the unit with bare hands while in use. ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser- vance of this manual or any unauthorized modification to this unit.

  • Page 7: Safety Precautions

    SAFETY PRECAUTIONS LASER RADIATION AVOID DIRECT EYE EXPOSURE Maximum output <5 mW Wavelength: 405, 532nm Class IIIa laser product This device complies with 21 CFR chapter I, Subchapter J, or CFR 1040.10 and 1040.11 • Safety Issues: This unit may “pop” the fuse if the maximum allotted load of 2 amps is reached or exceeded.
  • Page 8 SAFETY PRECAUTIONS RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION! FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT AT A WAVELENGTH OF 398NM - 431NM. WEAR PROPER EYE AND SKIN PROTECTION. AVOID PROLONGED PERIODS OF EXPOSURE. AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN. AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).

  • Page 9: Laser Warning And Safety

    LASER WARNINGS AND SAFETY NON-INTERLOCKED HOUSING WARNING This device contains high power laser devices. Do not open the laser housing, as doing so may re- sult in exposure to unsafe levels of laser radiation. Without the protective housing in place, the laser power levels can cause instant blindness, skin burns, and fires.
  • Page 10 LASER WARNINGS AND SAFETY After the device has been set up, and prior to public use, test the laser to ensure proper function. Do not use if defects of any kind are detected. DO NOT USE IF LASER EMITS ONLY ONE OR TWO LASER BEAMS RATHER THAN DOZENS/HUNDREDS, as this could indicate damage to the dif- fraction grating optic, and could allow emission of higher laser levels above Class 3R.

  • Page 11: Setup

    SETUP Power Supply: The ADJ Stinger II contains an automatic voltage switch, which will automaically sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, and this unit can be plugged in anywhere.
  • Page 12 2 and 3 of a male XLR connector (DATA+ and DATA-). This unit is inserted into the female XLR connector of the last unit in your daisy chain to terminator the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior. Termination reduces signal errors and avoids signal transmission problems and interference.

  • Page 13: Installation

    INSTALLATION The unit should be mounted using a mounting clamp (not provided), and affixing the clamp to the mounting bracket that is provided with the unit. Always ensure that the unit is firmly fixed to avoid vibration and slipping during operation. Always ensure that the structure to which you are attaching the unit is secure and is able to support at least 10 times the unit’s weight.

  • Page 14: Laser Warning Labels

    LASER WARNING LABELS...

  • Page 15: System Menu

    SYSTEM MENU DMX Address Channel Mode Show Mode UV Speed Primary Secondary 1 Secondary 2 Sound State Sound Sense Auto Test Display Inversion Fixture Hours Software Version Reset...
  • Page 16 SYSTEM MENU System Menu: When making adjustments, press ENTER to confirm your setup, then press and hold the MENU button for at least 3 seconds. To exit without making any adjustments, press the MENU button. The display will lock after 30 seconds after 30 seconds of inactivity, and can be unlocked by pressing the MENU button for 3 seconds.
  • Page 17 SYSTEM MENU SOSE - In this mode you can adjust the sound sensitivity. 1. Press the MENU button until “SOSE” is displayed, then press ENTER. 2. A number between 0-100 will be displayed. Press the UP or DOWN buttons to adjust the sound sensitivity.

  • Page 18: Operation

    OPERATION Universal DMX Control: This function allows you to use a universal DMX-512 controller to control the patterns, rotation, and strobing. A DMX controller allows you to create unique programs tailored to your individual needs. 1. The Stinger II features 2 DMX channel modes: a 2 channel mode and a 9 channel mod. See the DMX Traits section of this manual for detailed information.

  • Page 19: Primaty-Secondary Set Up | Power Cord Daisy Chain

    PRIMARY-SECONDARY SET UP This function will allow you to link up to 16 units together and operate without a controller. In a Primary-Secondary set up, one unit will act as the controlling unit and the others will react to the controlling unit’s programs.

  • Page 20: Uc Ir/Airstream Control

    To control the fixture, the remote must be aimed at the front of the fixture. Maximum range is 30 feet. The Stinger II comes with the Airstream IR remote transmitter. The ADJ Airstream IR is a universal infrared remote control App that is used to control a variety of UC IR compatiable fixtures. You can download the Airstream IR App in the iOS App store.

  • Page 21: Dmx Traits

    DMX TRAITS CHANNEL DMX VALUES FUNCTION Show Mode 000 - 009 No function 010 - 044 Show 1 045 - 079 Show 2 080 - 114 Show 3 115 - 149 Show 4 150 - 184 Show 5 185 - 219 Show 6 220 - 255 Random Show...
  • Page 22 DMX TRAITS CHANNEL DMX VALUES FUNCTION Laser Strobe Control 000 - 009 No Strobe 010 - 244 Strobing, slow to fast 245 - 255 Sound Active Strobing LED Rotation 000 - 009 No Rotation 010 - 127 Clockwise Rotation, slow to fast 128 - 255 Counter-Clockwise Rotation, slow to fast Laser Rotation...

  • Page 23: Fuse Replacement | Cleaning | Trouble Shooting

    FUSE REPLACEMENT Disconnect the unit from its power source, then remove the power cord from the unit. Locate the fuse holder inside the power socket, then insert a flat-head screw driver into the power socket and gently pry out the fuse holder. Remove the bad fuse and replace with a new one. Please note that the fuse holder also contains a slot for holding a spare fuse.

  • Page 24: Specifications

    ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands support@adj.eu / www.adj.eu...
