Summary of Contents for ADJ StarTec Series

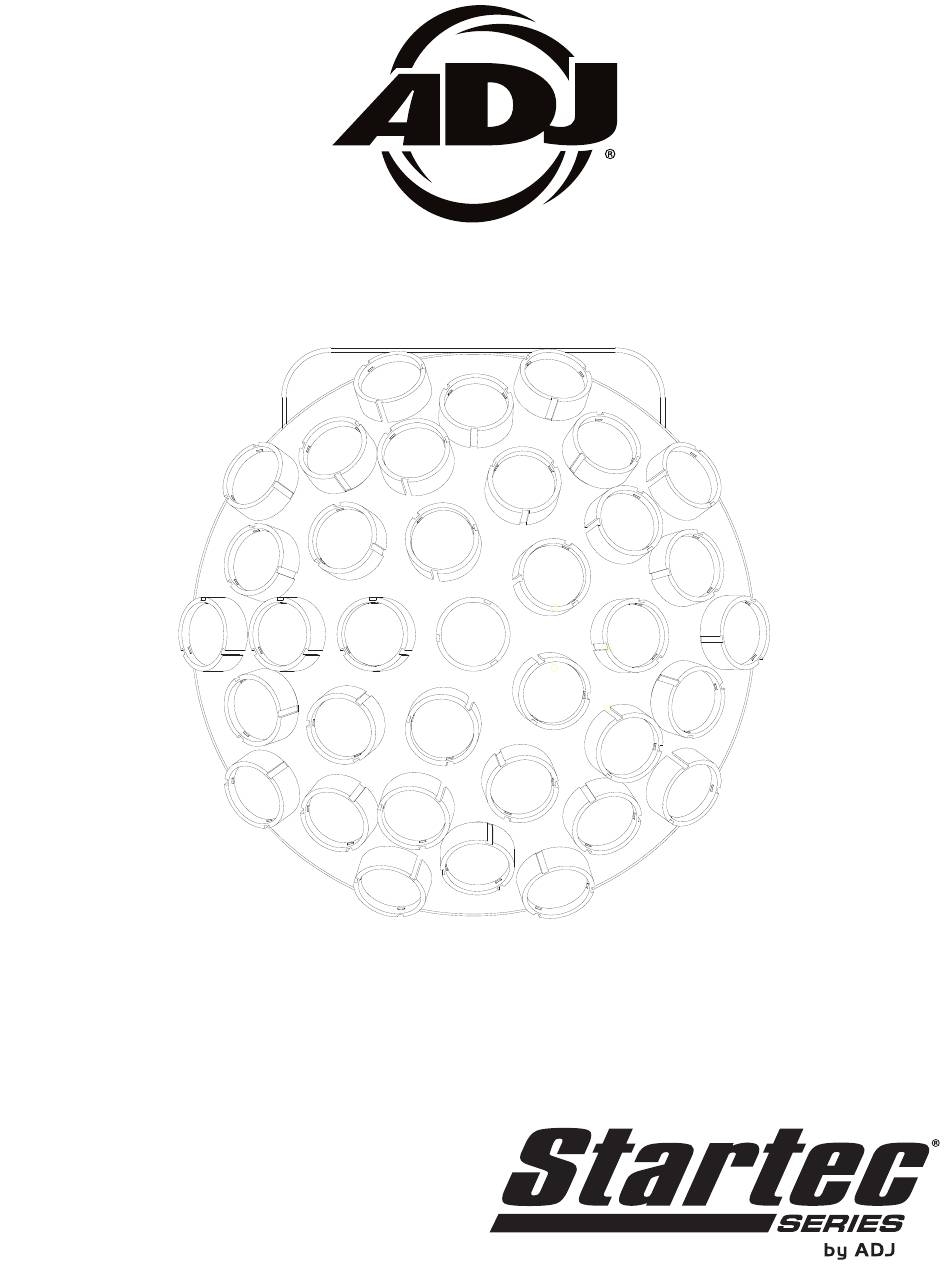

- Page 1 CONTOUR User Instructions...
- Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
System Menu Operating Instructions Master-Slave Configuration ADJ UC Laser IR/Airstream IR Control DMX Channel Modes Dimensional Drawings Fuse Replacement I Trouble Shooting I Cleaning Limited Warranty (USA Only) Specifications ADJ Products, LLC - www.adj.com - Contour User Manual Page 2... -
Page 4: Introduction
Contour Introduction Unpacking: Thank you for purchasing the Contour by ADJ Products, LLC. Every Contour has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact. -
Page 5: Features I Warranty I Installation
• Electronic Dimming 0-100% • DMX-512 Protocol | 3pin DMX In/Out Connections • Three DMX Modes: 3 / 7 / 9 • ADJ UC Laser IR and Airstream IR compatible (Transmitter Not Included) • Multiple Unit Power Linking Included: • 1 x Power Cord •... -
Page 6: Safety Guidelines
A. Objects have fallen, or liquid has been spilled into the appliance. B. The appliance has been exposed to rain or water. C. The appliance does not appear to operate normally or exhibits a marked change in performance. ADJ Products, LLC - www.adj.com - Contour User Manual Page 5... - Page 7 1 Ground 2 Cold 2 Cold 1 Ground Pin 1 = Ground Pin 2 = Data Compliment (negative) 3 Hot 3 Hot Pin 3 = Data True (positive) Figure 3 ADJ Products, LLC - www.adj.com - Contour User Manual Page 6...
-
Page 8: Dmx Setup
2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior. Termination reduces signal errors and... -
Page 9: Dmx Addressing
1, the second unit to 4 (3 + 1), the third unit to 7 (4 + 3), and so on. (See chart below for more de- tails.) Unit 1 Unit 2 Unit 3 Unit 4 Channel mode Address Address Address Address 3 channels 7 channels 9 channels ADJ Products, LLC - www.adj.com - Contour User Manual Page 8... -
Page 10: Overview
Contour Overview LCD DISPLAY CONTROL PANEL (MENU/UP/DOWN/ENTER) DMX IN DMX OUT SAFETY CABLE RIGGING POINT POWER OUT POWER IN & FUSE SOCKET ADJ Products, LLC - www.adj.com - Contour User Manual Page 9... -
Page 11: System Menu
Backlight ON Backlight OFF Display Reverse ON diSP Display Reverse OFF XXXH Total Running Hours FhrS Current Software Version U X.X Factory Default dEFA Press ENTER To Restore Factory Settings ADJ Products, LLC - www.adj.com - Contour User Manual Page 10... -
Page 12: Operating Instructions
1. Press the MENU button until “SLnd” is displayed, and press ENTER. Either “MASt” or “SL 1” will be displayed. 2. Press the UP or DOWN buttons until your desired setting is displayed, press ENTER to confim. ADJ Products, LLC - www.adj.com - Contour User Manual Page 11... - Page 13 2. A number between 000-099 will be displayed. Press the UP or DOWN buttons to adjust the sound sensitivity. 0 being the least sensitive, and 099 being the most sensitive. 3. When you have found your desired setting press ENTER to confirm. ADJ Products, LLC - www.adj.com - Contour User Manual Page 12...
-
Page 14: Master-Slave Configuration
4. On the slave unit(s) press the MENU button until “SLND” is displayed, and press ENTER. Use the UP and DOWN buttons to scroll to the “SL 1” setting and press ENTER. 5. The slave unit(s) will now follow the master unit. ADJ Products, LLC - www.adj.com - Contour User Manual Page 13... -
Page 15: Adj Uc Laser Ir/Airstream Ir Control
ADJ UC Laser IR/ Airstream IR Control The ADJ UC Laser IR infrared remote gives you control of various functions. To control the Contour you must aim the remote at the front of the fixture and be no more than 30 feet away. -
Page 16: Dmx Channel Modes
Show 12 208 - 223 Show 13 224 - 239 Show 14 240 - 255 Show 15 SHOW SPEED/SOUND ACTIVE 000 - 250 Show Speed Slow-Fast 251- 255 Sound Active ADJ Products, LLC - www.adj.com - Contour User Manual Page 15... -
Page 17: Dimensional Drawings
Contour Dimensional Drawing 9.85” / 250.6mm 9.75” / 247.5mm ADJ Products, LLC - www.adj.com - Contour User Manual Page 16... -
Page 18: Fuse Replacement I Trouble Shooting I Cleaning
3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew). ADJ Products, LLC - www.adj.com - Contour User Manual Page 17... -
Page 19: Limited Warranty (Usa Only)
ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual. -
Page 20: Specifications
3 / 7 / 9 Warranty: 2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC - www.adj.com - Contour User Manual Page 19...
