About this edition of user instructions The current edition of the user instructions applies to the following models and versions of the orbital shaker-incubator: • ES-20/80 ........................V.1GD Edition 1.04 – December of 2021 Orbital shaker-incubator ES-20/80 Operating manual Page 3...
Do not place a load exceeding the maximum load value mentioned in the Specifications section of this manual. BIOLOGICAL SAFETY • The user is responsible to carry out appropriate decontamination if hazardous material spills on or penetrates into the equipment. Edition 1.04 – December of 2021 Orbital shaker-incubator ES-20/80 Page 4 Operating manual...

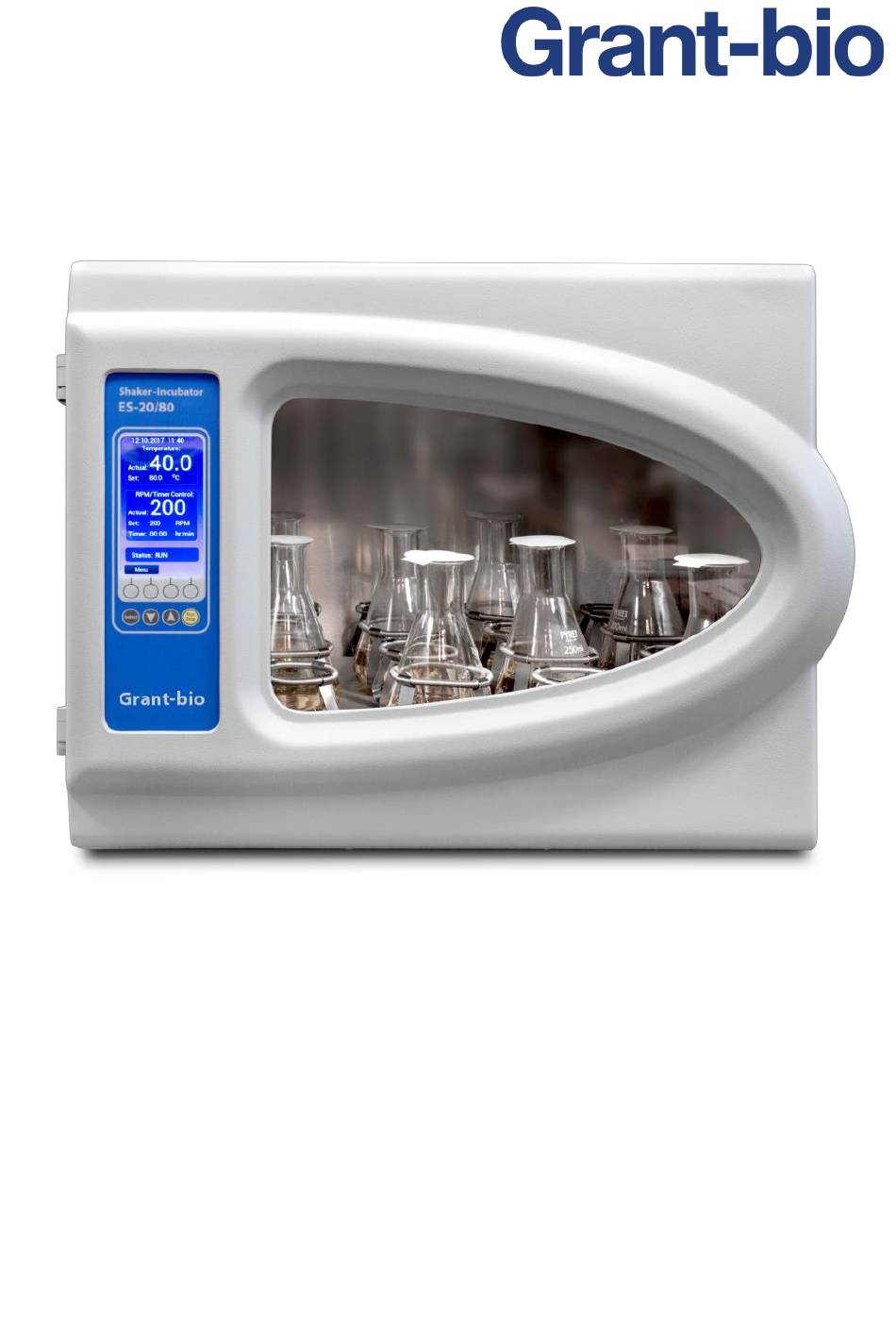

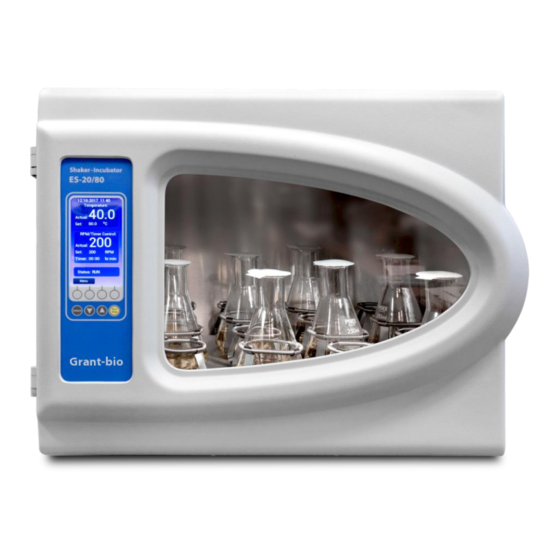

General information ES-20/80 shaker-incubator for biotechnological and pharmaceutical laboratories is a profes- sional category equipment. The typical applications include - microbial and cell culture cultivation, pro- tein expression, solubility studies, general mixing, as well as other various applications in the fields of biology and chemistry.
4.2. Complete set. Package contents: 4.2.1. Standard set: ES-20/80, Orbital shaker-incubator ................. 1 pce. Power cable ........................1 pce. Spare fuse (inside fuse holder) ..................1 pce. Four screws and a hex driver ................... 1 set USB drive with software and software manual ..............1 pce.
Page 7
Fix them in place with screws included with components. Maximum number of clamps or racks can be found in the table below. FC-50 FC-100, FC-250 FC-500 FC-1000 TR-21/50, TR-44/15 Edition 1.04 – December of 2021 Orbital shaker-incubator ES-20/80 Operating manual Page 7...
(fig. 3). Fix the screws tightly. 5.6. Connect the power cables to the units and to grounded mains sockets. 5.7. Maintenance. Check the screw fixation and unit stack stability once a month. Edition 1.04 – December of 2021 Orbital shaker-incubator ES-20/80 Page 8 Operating manual...
Page 9
Figure 3. Washers on the screw Figure 6. Stacking three Figure 4. Stacking three Figure 5. Stacking three units, top level units, base level units, middle level Edition 1.04 – December of 2021 Orbital shaker-incubator ES-20/80 Operating manual Page 9...
Press the Run Stop key. The platform will start rotating and the timer indicator will start counting the time interval. Caution! If the speed is set to zero, pressing the Run Stop key will start the timer, but the platform will not move. Edition 1.04 – December of 2021 Orbital shaker-incubator ES-20/80 Page 10 Operating manual...
Page 11
100% of memory is used up in approximately 1 month. 6.9. At the end of operation, set the Power switch in position O (off). Disconnect the power cable from electric circuit. Edition 1.04 – December of 2021 Orbital shaker-incubator ES-20/80 Operating manual Page 11...
Recommended interval between prolonged operations – not less than 8 hours Only with the stacking kit installed. Base side-mounted leg parts are required for third level stacking Accurate within ±10% Edition 1.04 – December of 2021 Orbital shaker-incubator ES-20/80 Page 12 Operating manual...
V.1GD 230 V, 50/60 Hz, no platforms 8.2. To inquire about or order the optional accessories, contact Grant or your local Grant representative. 8.3. Optional accessories for ES-20/80: Model Description HSP-30/100 Platform with clamps for 30 flasks of 100 ml...
Check and replace with a correct fuse if necessary, see table below: Model & version Fuse ES-20/80 V.1GD (230 V) M 4 A Fuse type M - time lag Medium Edition 1.04 – December of 2021...
This product does not contain any Substances of Very High Concern (SVHCs) at greater than 0.1% that have to be identified in accordance with Regulation (EC) No 1907/2006 and therefore does not have an entry in the SCIP database. Edition 1.04 – December of 2021 Orbital shaker-incubator ES-20/80 Operating manual Page 15...
Page 16
Representative in the European Union (Cambridge) Ltd Grant Instruments Europe B.V Shepreth Strawinskylaan 411 Cambridgeshire WTC, Tower A, 4th Floor SG8 6GB 1077 XX Amsterdam The Netherlands Tel: +44 (0) 1763 260811 Email: grant@eu.grantinstruments.com Email: salesdesk@grantinstruments.com www.grantinstruments.com Orbital shaker-incubator / ES-20/80 / 1.04...
