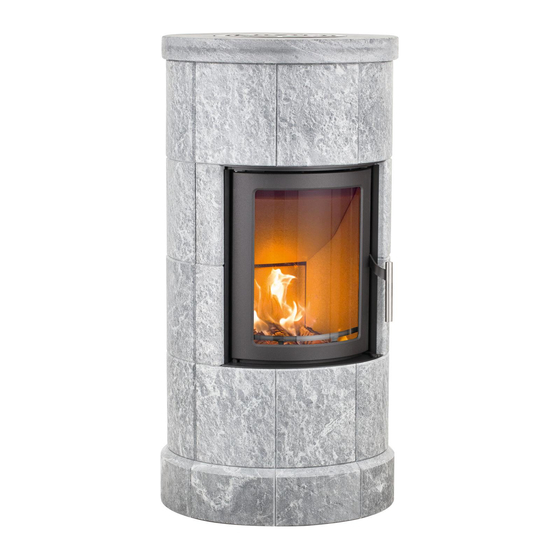

Heta SCAN-LINE 10 Operating And Installation Instructions
  1. Manuals
  2. Brands
  3. Heta Manuals
  4. Indoor Fireplace
  5. SCAN-LINE 10
  6. Operating and installation instructions

Heta SCAN-LINE 10 Operating And Installation Instructions

Hide thumbs Also See for SCAN-LINE 10:

Advertisement

Quick Links

Download this manual
oPeratinG anD installation
instrUCtions
sCan-line 10/20/30 20B/30B
www.heta.dk
en
Danish DesiGn . Danish QUality . Danish ProDUCtion
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCAN-LINE 10 and is the answer not in the manual?

Questions and answers

Related Manuals for Heta SCAN-LINE 10

Summary of Contents for Heta SCAN-LINE 10

  • Page 1 10/20/30 20B/30B www.heta.dk Danish DesiGn . Danish QUality . Danish ProDUCtion...
  • Page 2 Heta stove. Especially if you follow the following advice and instructions. Scan-Line 10/20/30 20B/30B have been approved according to the EN 13240, NS 3058, NS 3059 and A15 Austria. These approvals, means that the wood stove meets a variety of specifications and requirements, ensuring it is made of quality materials, minimum environmental impact and that it has an optimum fuel economy.

  • Page 3: Installation Instructions

    installation instrUCtions safety clearances the nonflammable surface used to cover the floor area must match national and local regulations. Stoves must always be installed in line with nati- the chimney connection onal and, if applicable, local regulations. It is im- portant to abide by local regulations regarding The chimney opening must follow national and setting up chimneys and connection to same.
  • Page 4 • No wind is blowing. ful firing. The flue gas temperature at nominal • The chimney is too low and sheltered. output is 246°C when expelled to an exterior • The chimney contains false air. temperature of 20°C. The flue gas mass flow is • The chimney and flue gas pipe are blocked.
  • Page 5 of about 4.18 kW/hour per kg, and one litre The use of lighter fluid, oils or heating oil contains about 10 kW/hour. any liquid fuels is strictly forbid- den from use in a wood stove. release Fully open the combustion air and leave the At combustion 1000 litres of heating oil forms door ajar (about 1 cm open).

  • Page 6: Maintenance

    optimal firing wood is placed in the stove. This may result in the production of large volumes of gas, and this To achieve optimal firing and the highest possi- gas can explode if the intake of primary and se- ble effect, it is important to make sure that the air condary air is insufficient.
  • Page 7 Heta representative, who in turn will • Assembly / disassembly of warranty repair contact Heta to solve the claim. To file a claim • Any secondary damages of the stove or it’s please provide date of installation, picture of the...
  • Page 8 troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot.

  • Page 9: Operational Problems

    When cleaning the chimney, soot and air channel for the start-up airflow. Cleaning after sweeping or before replacing vermiculite stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. stovedrawings/measurments scan-line 10 1259 1068 ø100...
  • Page 10 stovedrawings/measurments scan-line 20 1330 1521 1068 ø100 stovedrawings/measurments scan-line 20B 1521 1330 1186 ø100...
  • Page 11 stovedrawings/measurments scan-line 30 1592 1783 1330 1068 ø100 stovedrawings/measurments scan-line 30B 1592 1783 1330 1186 ø100...
  • Page 12 installation instrUCtions Combustible material 1000 1000 Furnitures Furnitures Clearances ** Minimum Distance according distance to EN 13240 * Distance to wall for placement of first ring (bottom ring). If a minimum distance to combustibles is used, this must always be approved by the local authorities (chimney sweep) before starting installation of the stove.
  • Page 13 No.1 0023-2184 1013-025451 No.2 0023-2188 1013-025440 No.3 1013-025454 0023-2187 No.4 1013-025482 0023-2186 0023-2189 3512-0016 0023-0093 Scan-Line 10 Scan-Line 20 Scan-Line 30 Scan-Line 20B Scan-Line 30B No. 1 No. 2 No. 3 No. 4...
  • Page 14 Important The cuts in the rings must be placed as shown in illustration. For models For standard models with oven Divided Divided Divided Divided Divided Divided Divided Divided Divided Divided Divided Divided Divided Divided Front Front...
  • Page 15 8 x A 2 x No.1 Front No. 2 1x C No. 3 3512-0016 7 x B Front 2 x No. 2 Front...
  • Page 16 Standard models 1 x C No. 2 2 x No. 1 7 x B No. 3 5 x B 2 x D 2 x No.4 5 X B 2 X D...
  • Page 17 Models with oven 1 x C 5 x B 2 x No.1 2 x D 7 x B 2 x No. 4 No. 3 No. 2 All models 3512-0015 2 x E...
  • Page 18 20 and 21 of the Clean Air Act 1993 by section 15 of the The Scan-Line 10, 20, 30, 20B, 30B have all Deregulation Act 2015. Similarly, in Scotland ap- been recommended as suitable for use in smo- pliances are exempted by publication on a list by ke control areas when burning dry wood logs.
  • Page 19 Certifikat no. 2354 Manufacturer Heta A/S Ecodesign Adress Jupitervej 22, DK 7620 Lemvig EU Declaration of Conformity E-mail heta@heta.dk Website www.heta.dk DoC Scan-Line 500 2354-2018 Telephone +45 9663 0600 Product fiche Model identifier Scan-Line 500, 510, 520, 520B, 550, 551, 560B, 560S, 590, Turin, Turin B, Napoli, 10-20-20B-30-30B, Tour...
