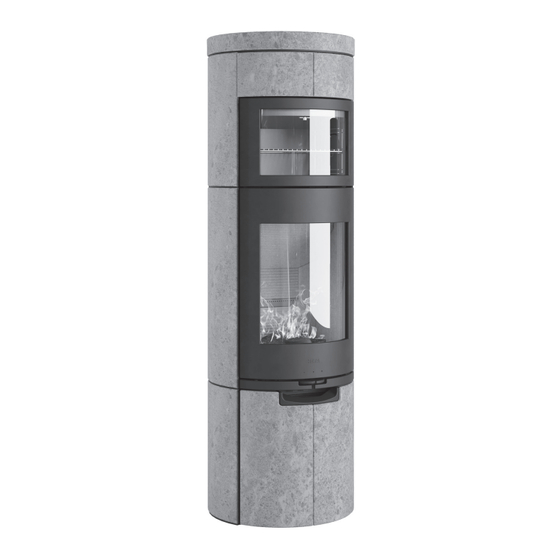

Heta SCAN-LINE 910 Operating And Installation Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
oPeratinG anD installation
instrUCtions
sCan-line 910 - 920B - 920s
Scan-Line 910-920B-920S SCA is exempt for use in smoke control areas
when burning dry wood
PenDinG
eCoDesiGn reaDy
www.heta.dk
en
Danish DesiGn . Danish QUality . Danish ProDUCtion
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCAN-LINE 910 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heta SCAN-LINE 910

Summary of Contents for Heta SCAN-LINE 910

  • Page 1 910 - 920B - 920s Scan-Line 910-920B-920S SCA is exempt for use in smoke control areas when burning dry wood PenDinG eCoDesiGn reaDy www.heta.dk Danish DesiGn . Danish QUality . Danish ProDUCtion...

  • Page 2: Table Of Contents

    Scan-Line 910 - 920B and 920S have been approved according to the EN 13240, NS 3058, NS 3059. And the Scan-Line 910 - 920B and 920S SCA series are modified so that they are also recommended as exempt for use within smoke control areas (SCA) throughout the UK (see clean air act Appendix A) of the air supply regulation so that it can’t be closed completely.

  • Page 3: Before Installation

    It is important that upon receipt check your Heta product completely and report any damage or defects to your dealer. The packaging must be disposed of as follows: Wood is untreated and able to burn in the stove.
  • Page 4 With your new wood stove you should find the following: Operating / Q.C. check Instruction manual Heta glove Graphite spray for lubrication 0023-9002 0027-0130 Data plate required tools are not supplied. 8057 0000-DK Heta A/S Jupitervej 22 . DK-7620 Lemvig . Denmark EN 13240:2001/A2:2004 - AEA - NS 3058/3059, Aus §15A...

  • Page 5: Operating Instructions

    1. oPeratinG instrUCtions 1.4 lighting the stove 1.1 Before using Place two pieces of wood on the bottom. Stack Before the wood stove is used make sure re- kindling on top in layers with air between. Set quired installation conditions, are met. See ting fire starter (bag, brick, paraffin) on the top, page now you are ready to light the fuel.

  • Page 6: Emptying The Ash

    1.6 emptying the ash bers in one layer, perpendicular to the chamber opening. Fig. 5. By using the shaker grate, it rotates back and forth so the ash falls through the holes and into Now open the combustion air completely. If the the ashtray, see fig.

  • Page 7: Risk Of Explosion

    flames haveburnt out ficiency. Heta wood stoves are constructed so and the tree is transformed into glowing char- that it itself provides an optimal blend of com- coal. bustion air. This provides a high efficiency/heat, clean glass and low environmental impact.

  • Page 8: Fuel

    reduced draft can occur when: examples of fuel values • The temperature difference is too small for different woods and their typical densities between smoke gasses and outdoor per cubic meter, specified for 100% wood with temperature, for eg. poorly insulated chimney a moisture content of 18%.

  • Page 9: Chimney Fire

    1.15 Cleaning the oven You should attempt not to spill anything directly onto the oven coating. Where necessary, use an aluminium tray or a Heta roasting tin no. (no. 0050-0304) to catch any spills. Clean the oven using hot water and washing-up liquid.

  • Page 10: Cleaning Behind The Oven

    1.16 Cleaning behind the oven 3 x 8 - L = 1,3 m 0023-3013...

  • Page 11: Lubricate The Moving Parts Of The Stove With Graphite Spray

    1.17 lubricate the moving parts of the stove with graphite spray Before using graphite spray, you should cover the exposed surfaces so that lubricants are applied only to the moving parts. Always test the graphite spray on a hidden surface to make sure the can is working as intended.

  • Page 12: Diagram For Maintenance

    Report all claims to the dealer or where the stove was purchased, who in turn will contact Heta to solve the claim. To file a claim please provide date of installation, picture of the silver data sticker, model and a description of the issue and pictures.

  • Page 13: Troubleshooting

    1.20 troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot.

  • Page 14: Cleaning/Replacing Bicks After Chimney Sweeping

    1.21 Cleaning after sweeping or before replacing vermiculite stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. Order of removing Fire bricks. Replace in reverse order. Starting with Fig. 6.

  • Page 15: Stove Data Table En 13240

    Includes 1 set of accumulation stones. (25 kg) The nominal output is the output to which the stove has been tested. Testing is conducted with the combustion air open 31% for Scan-Line 910-920B-920S stove data table in accordance to norwegian fire wall Oventype Norwegian fire wall...

  • Page 16: Parts

    1.23 Parts - inside fire chamber Pos. Name Qty. 1 0023-006028 Vermiculite, rear, bottom 2 0023-006261 Vermiculite, side, right 3 0023-006465 Vermiculite, side, left 4 0023-011495 Baffle 5 0023-012044 Baffle, small 6 0023-012060 Vermiculite, rear, top 7 0023-012061 Vermiculite, rear, right 8 0023-012062 Vermiculite, rear, left 9 0030-0201...
  • Page 17 Parts - Door Pos. Name Qty. 6000-005970 Close roller, completet 0008-1002 M6x6 Hexagon socket set screw 0008-2304 M4x6 Hexalobular socket pan head 0008-9082 6x35 Round head rivet 0021-006404 Glass 0023-3008 Glass gasket ø12 L = 1.84 m 0023-3010 Textile glass 6 mm with adhesive, black L = 1.3 m 0023-3010 Textile glass 6 mm...
  • Page 18 Parts - Glass door Pos. Name Qty. 1 0008-0036 M4x6 Hexagon socket cap screw 2 0008-1002 M6x6 Hexagon socket set screw 3 0008-2304 M4x6 Hexalobular socket pan head 4 0008-9082 6x35 Round head rivet 5 0021-006557 Glass for stove door 6 0023-3008 Glass gasket ø12 soft L = 1.84 m 7 0023-3010...
  • Page 19 Parts - Baking oven door Pos. Name Qty. 0008-0036 M4x6 With flat head 0008-1002 Set screw 0008-018935 Round head rivet steel 0021-020355 Glass 0023-3010 Glass gasket Textile glass 6 mm, with adhesive, black L=0.36 m 0030-019579 Baking oven door 0050-0301 Rails for baking racks 0050-0302 Baking racks...
  • Page 20 Secretary of State in accor- Air Act requirements dance with changes made to sections 20 and The Scan-Line 910-920B-920S have all been re- 21 of the Clean Air Act 1993 by section 15 of the commended as suitable for use in smoke con- Deregulation Act 2015.

  • Page 21: Installation Instructions

    flue gas pipe ve or on page 15 of this manual. must be sealed with fireproof material and / or beading. Heta A/S stresses that it is of utmost importance that this is done correctly with very 2.2 floor tight joints.

  • Page 22: Combustion Air And Ventilation

    Combustion air and Ventilation stalled to an outside air supply. The stove is approved as a room air dependent The Scan-Line 910-920B-920S requires the ad- ditional ventilation, when not connected to direct stove in accordance with EN 13240. All the combustion air in the inset stove comes from air, because it has a greater output than 5 kW.
  • Page 23 Scan-Line 920B ø516 ø100 Scan-Line 920S ø516 ø100...

  • Page 24: Installing The Stones

    2.6 scan-line 910-920B-920s installing the stones stone overview 1013-028339 Convection grate for Scan-Line 910 6000-028445 Assembled convection grate for Scan-Line 920B and Scan-Line 920S No. 8 No. 7 No. 6 No. 5 No. 4 No. 3 No. 2 0023-022143 No. 1...
  • Page 25 stone overview limestone / Greywood Lime stone Greywood Item No. Item No. 920B 920S 0023-029443 0023-029833 0023-029440 0023-029830 0023-029438 0023-029828 0023-029439 0023-029829 0023-029441 0023-029831 0023-029437 0023-029827 0023-029436 0023-029826 0023-029442 0023-029832 0023-029444 0023-029834 No. 1 1013-028321 1013-028321 No. 2 1013-028425 1013-028425 No.
  • Page 26 12,5 12,5 0008-0086 No. 1 1013-028810 Scan-Line 910 Adjustment tool No. 2 No. 3 No. 6 No. 4 No. 5 Scan-Line 920B-920S No.8 No. 7 set up in level NV 17 NV 17...
  • Page 27 flue 6000-028445 Purchased accumu- lation stones are installed before the smoke pipe. 6000-028445 0023-022143 1013-028339 Scan-Line 910 Scan-Line 920B Scan-Line 920S installing the stones 0008-0212 No. 1 No. 2 No. 3 NV 10 0008-0212...
  • Page 28 installing the cover for fresh air Silicone to hold the cover to the stone. Cover 1013-029185 Must be installed if fresh air is not connected. installing stones on the drawer Soapstone 8 x 0008-0035 M6 x 8 Limestone / Greywood 0030-028402 8 x 0008-0006 M6 x 812 0008-0212...
  • Page 29 910 installing a second row of stones No. 5 No. 4 No. 6 No. 4 and No. 5...
  • Page 30 scan-line 920B installing a second row of stones No. 4 No. 3 No. 5 Only Limestone / Greywood...
  • Page 31 No. 8 No. 7 scan-line 920B adjustment of the front stone scan-line 920B Possible adjustment of the front stone To adjust the height - place 1-4 spacers under each front stone. 8 x 1013-029856...
  • Page 32 scan-line 920B installing purchased accumulation stones 0023-022142 0023-022143 scan-line 920B installing the top Info When the stove is hot, the front stones will lift, with the rise of the combustion chamber when hot...
  • Page 33 scan-line 920s installing a second row of stones No. 4 No. 5 No. 3 Only Limestone / Greywood No.8 No.7...
  • Page 34 scan-line 920s adjustment of the front stone scan-line 920s Possible adjustment of the front stone To adjust the height - place 1-4 spacers under each front stone. 8 x 1013-029856...
  • Page 35 scan-line 920s installing accumulation stones 0023-022142 scan-line 920s installing purchased accumulation stones 0023-022142 0023-022142 0023-022143 0023-022143 6000-028445 Info When the stove is hot, the front stones will lift, with the rise of the combustion chamber when hot.

  • Page 36: Door Stop Location

    ø100 mm, the draught in the flue depends on this air for optimal combu- stion. Heta recommends max. 4 meters of direct air Flexi-pipe to the floor pipe, with max. 3, 90° bends and a min. of ø100...

  • Page 37: Clearances For Installation En 13240

    / insulated / insulated / insulated / dimensions in floor stove flue pipe flue pipe uninsulated flue uninsulated uninsulated uninsulated flue pipe flue pipe flue pipe pipe Scan-Line 910- 50/75 400/425 600/650 1000/1000 50/75 0(<65K) 525/635 0(<65K) 920B-920S...

  • Page 39: Eu Declaration Of Conformity

    DoC Scan-Line 910-920B-920S 2409-2019 Telephone +45 9663 0600 Product fiche Model identifier Scan-Line 910, 920B, 920S serie The identified product described above is in Notified body relevant to the assessment and verification of conformity with: constancy of performance The relevant EU harmonized regulations: Danish Technological Institute, DK-8000 Aarhus No.
