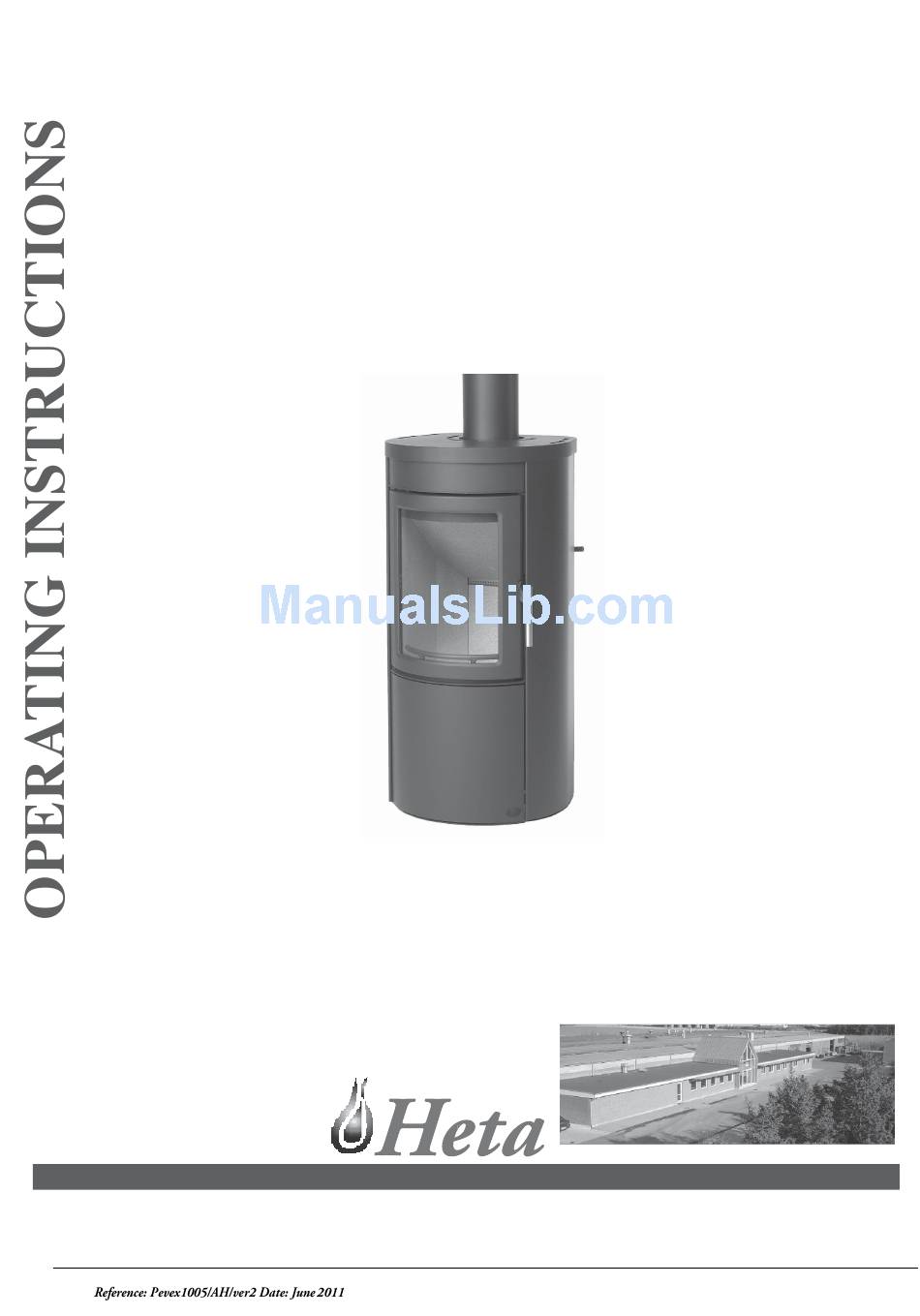

- Page 1 Scan-Line 500D Series (500D, 510D, 520D, 530D) APPROVED FOR USE BY DEFRA IN SMOKE CONTROL AREAS WHEN BURNING DRY WOOD LOGS (when fitted with a permanent stops on primary and secondary air) www.heta.dk www.heta.dk Installation and Operating Instructions for Scanline 500 Stove Series...
-
Page 2: Installation Instructions
Congratulations on your new stove. We are sure that you will be happy with your investment, especially if you follow the advice and instructions we have put together in these operating instructions. The Scanline 500 series has been approved according to the EN 13240, DINplus, NS3058 and 15a B-VG and has been fully tested and approved for use in smoke control areas throughout the UK (see clean air act Appendix A). -
Page 3: Instructions For Use
It is important that the chimney is fitted with roof support so that the top panel of the stove is not required to bear the entire weight of the chimney (excessive weight may damage the stove). Draft conditions Poor draft may result in smoke being emitted from the stove when the door is opened. The minimum chimney draft to ensure satisfactory combustion in stoves of this kind is 10 PA. - Page 4 Mountain Poplar pine Willow It is advised not to use very oil containing woods like teak tree and mahogany, as this can cause damage to the glass. Heating value in wood You have to use about 2.4 kg normal wood to replace one litre of heating oil. All woods have almost the same heating value per kg, which is about 5.27 kW/ hour for absolute dry wood.
- Page 5 LIGHTING INSTRUCTIONS FOR HETA STOVES 1. Place some scrunched up 2. Fully open the primary and With plenty of air the newspaper and firelighters on the secondary air controls. Light flames will burn brightly quickly base of the stove and stack some...
-
Page 6: Operational Problems
Refuelling You should normally refuel the stove while there is still a good layer of embers (insufficient burning embers will cause excessive smoke to occur when you refuel the stove). Distribute the embers across the bottom grate, place pieces of fuel (max 0.7 kg) on the embers in a single layer perpendicular to the firing opening. -
Page 7: Maintenance
wood burns too quickly, this may be due to excessive chimney draught. You should also check to make sure that the door seal and seal on back of the stones is intact and correctly fitting. If the stove it generating too little heat, this may be because you are firing with wet wood. In this case, much of the heating energy is used to dry the wood, resulting in poor heating economics and an increased risk of soot deposits in the chimney. - Page 8 Emptying the ash pan, fig 5-8 Fig 5 Fig 6 Fig 7 Fig 8 Cleaning and replacing the fire bricks fig 9-12 Fig 9 Fig 10 Fig 11 Fig 12 Installation and Operating Instructions for Scanline 500 Stove Series Page 8 of 10...
- Page 9 Changing to back smoke outlet fig. 13-20 Fig 17 Fig 13 Fig 14 Fig 18 Fig 15 Fig 19 Fig 20 Fig 16 The stove is prepared for a fresh air intake. Installation and Operating Instructions for Scanline 500 Stove Series Page 9 of 10...
- Page 10 Appendix A The Clean Air Act 1993 and Smoke Control Areas Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke control area.
