Before Installation

Before you start installing the intelligent Touch Manager, perform the following preparatory
checks.
• Check that the intelligent Touch Manager comes with all accessories.
• Confirm where the terminals and switches of the intelligent Touch Manager are located.
• Check that an appropriate space for installing the intelligent Touch Manager is available.
1.1

Checking that all accessories are included

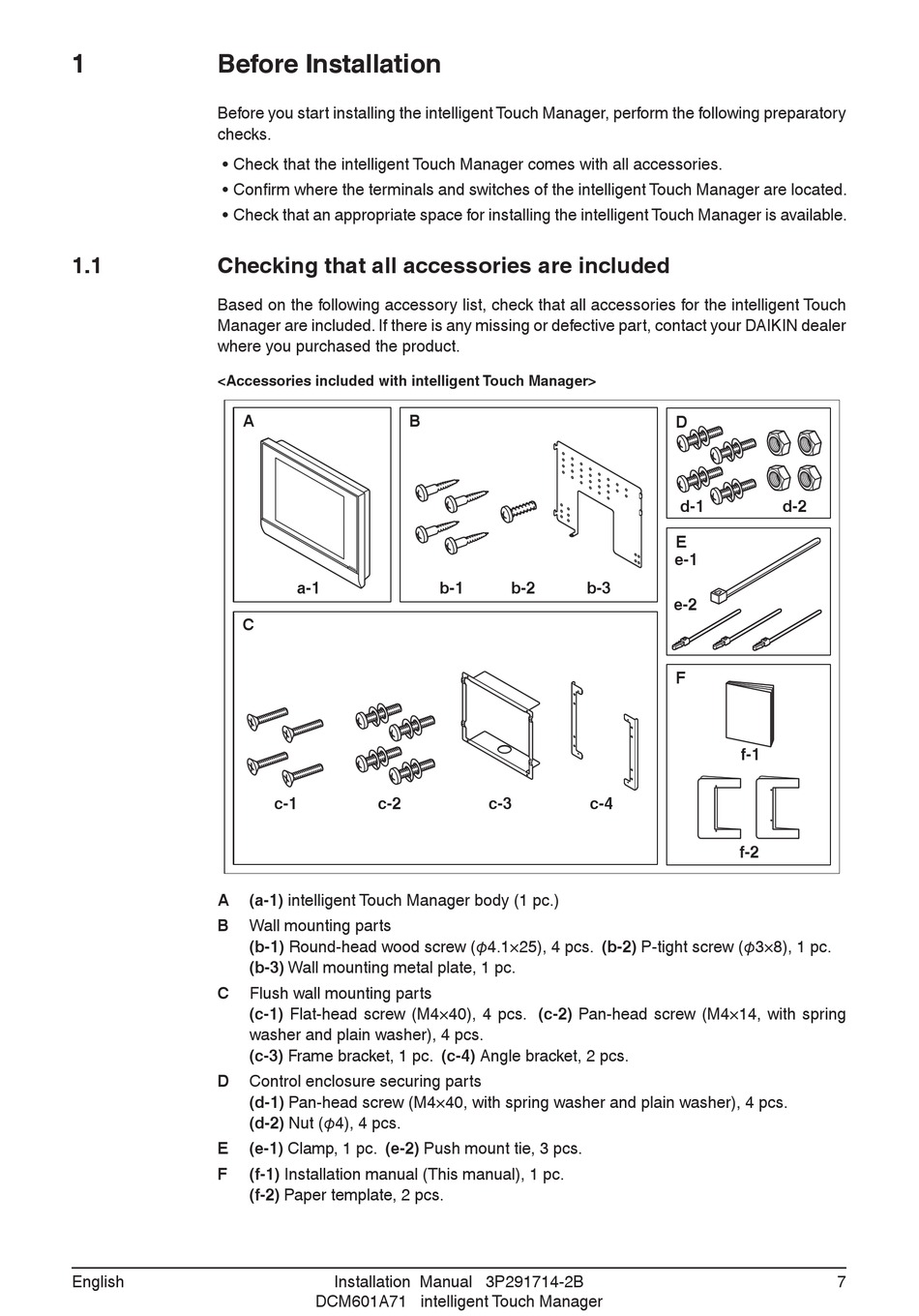

Based on the following accessory list, check that all accessories for the intelligent Touch
Manager are included. If there is any missing or defective part, contact your DAIKIN dealer
where you purchased the product.
<Accessories included with intelligent Touch Manager>
A
C
A
B
C
D
E
F
English
B
a-1
c-1 c-2
(a-1) intelligent Touch Manager body (1 pc.)
Wall mounting parts
(b-1) Round-head wood screw (φ4.1×25), 4 pcs. (b-2) P-tight screw (φ3×8), 1 pc.
(b-3) Wall mounting metal plate, 1 pc.
Flush wall mounting parts
(c-1) Flat-head screw (M4×40), 4 pcs. (c-2) Pan-head screw (M4×14, with spring
washer and plain washer), 4 pcs.
(c-3) Frame bracket, 1 pc. (c-4) Angle bracket, 2 pcs.
Control enclosure securing parts
(d-1) Pan-head screw (M4×40, with spring washer and plain washer), 4 pcs.
(d-2) Nut (φ4), 4 pcs.
(e-1) Clamp, 1 pc. (e-2) Push mount tie, 3 pcs.
(f-1) Installation manual (This manual), 1 pc.
(f-2) Paper template, 2 pcs.
Installation Manual 3P291714-2B
DCM601A71 intelligent Touch Manager
b-1 b-2 b-3
c-3 c-4
D
d-1 d-2
E
e-1
e-2
F
f-1
f-2
