Connecting power supply
Connect the intelligent Touch Manager to an power supply.
Be sure to perform the operation during power-off conditions. Do not turn the
power supply on until all connections are made. Not doing so may cause an
electric shock.
2.7.1
Terminal location and schematic connection diagram
Connect the power supply to the three terminals, L
(Live), N (Neutral), and ground in the POWER sec-
tion.
English
WARNING
Installation Manual 3P291714-2B
DCM601A71 intelligent Touch Manager

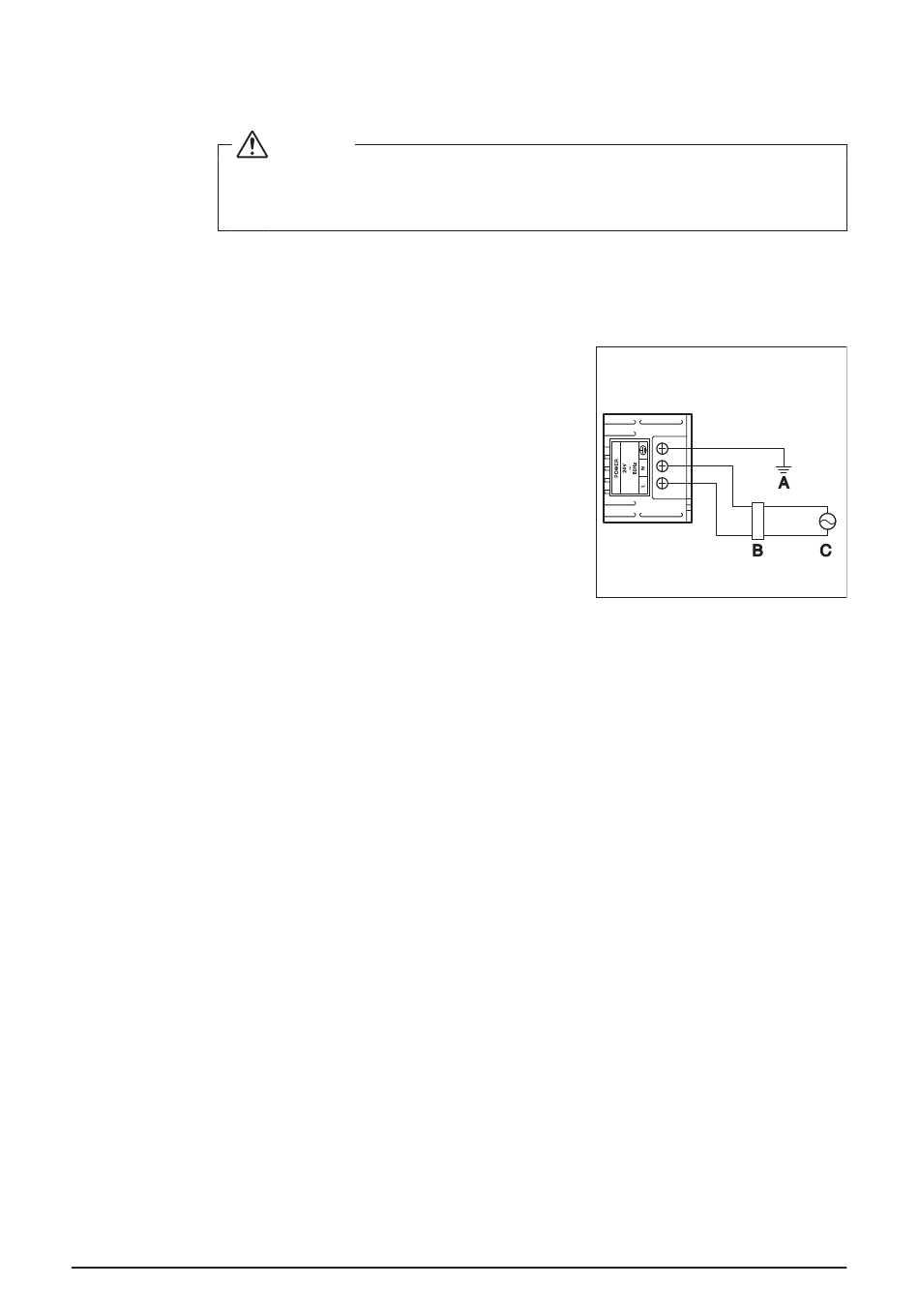

< Schematic power connection dia-
gram>
A
Earth
B
Earth leakage breaker
C
Power supply 24VAC 60 Hz
23
