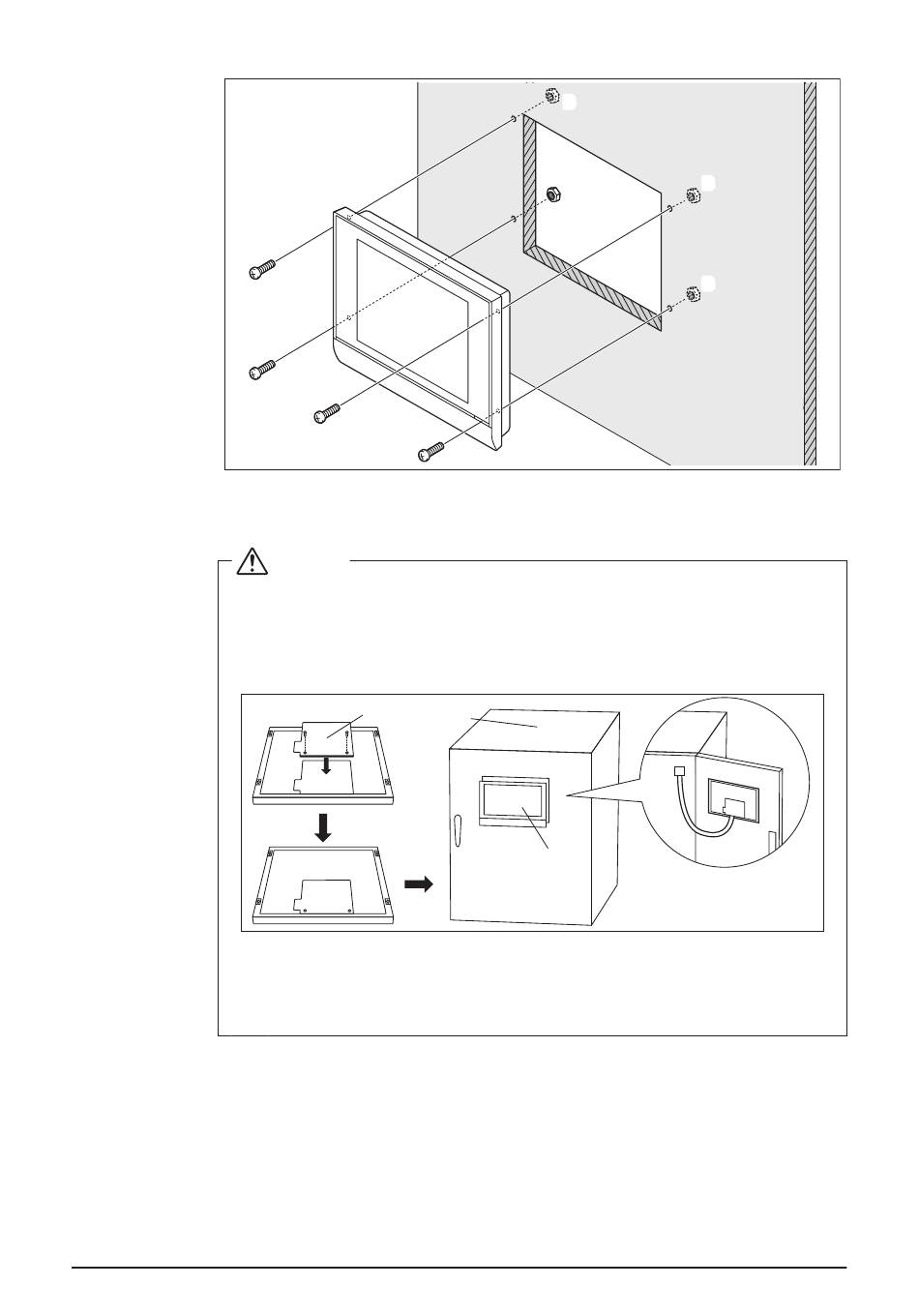

<Installing intelligent Touch Manager body to control enclosure>
A
B
If the intelligent Touch Manager is directly mounted to the control enclosure, you
will be exposed to the power line connection terminals when opening the control
enclosure door.
Touching electrical junctions by hand may result in an electric shock. Attach the
terminal cover to the rear face for your safety.
A
B
C
English
A
A
A
A
Pan-head screw
Nut
CAUTION
A
Terminal cover
Control enclosure
intelligent Touch Manager
Installation Manual 3P291714-2B
DCM601A71 intelligent Touch Manager
