2.3.1

Terminal location and schematic connection diagram

Using a LAN cable, connect the LAN port to the network hub.

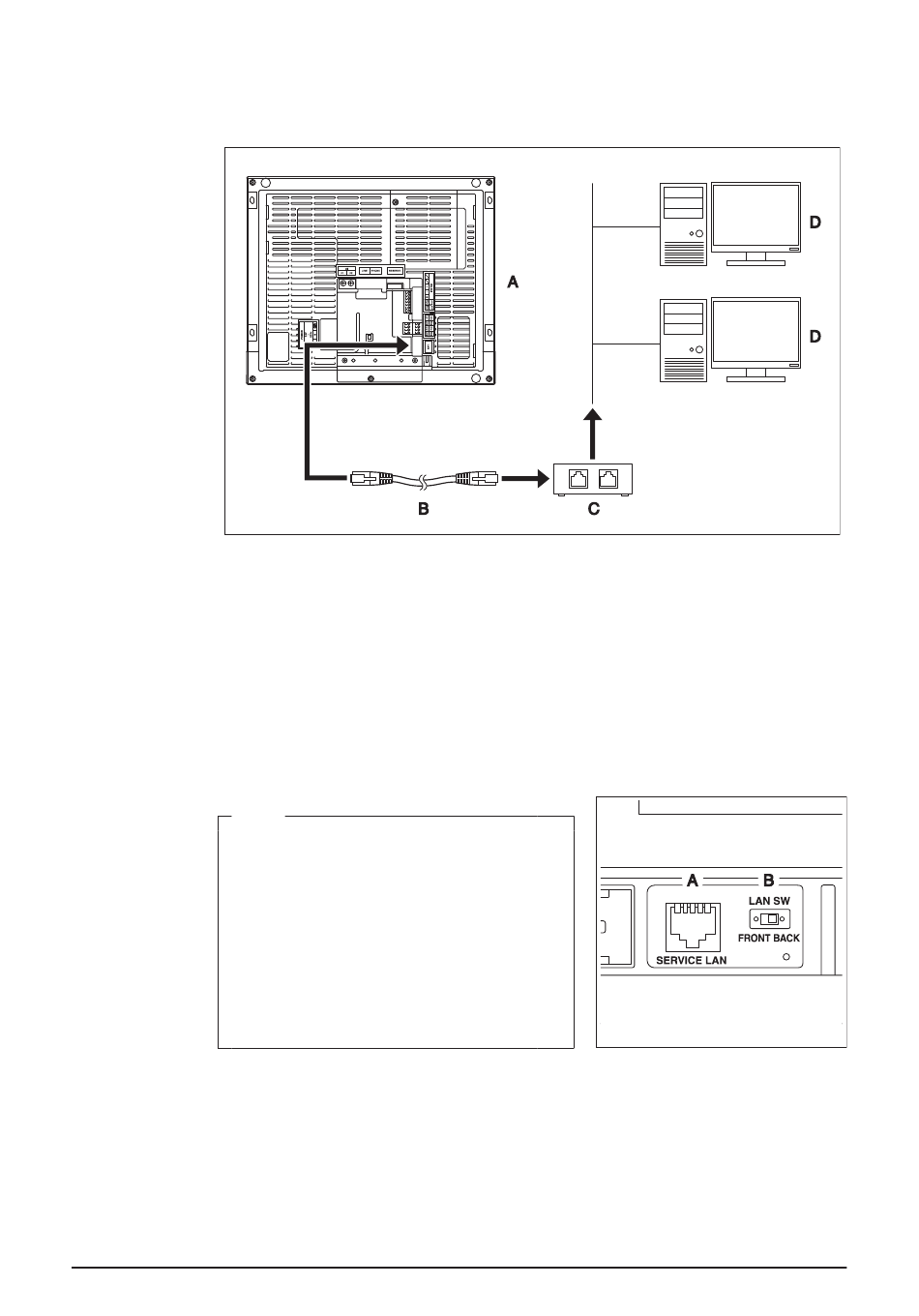

<LAN connection schematic diagram>
A
B
C
D
2.3.2

Wiring specifications

• Applicable cable standard: 100Base-TX or 10Base-T
• Connector standard: RJ-45
NOTE
• When you connect the intelligent Touch Man-
ager to the LAN temporarily during installation
or maintenance, use the SERVICE LAN port
located on the front face.
The SERVICE LAN port is enabled by chang-
ing the position of the LAN SW switch beside
the SERVICE LAN to the FRONT position.
• You cannot close the cover when the switch
set to "FRONT". To close the cover, select
"BACK".
18
Rear face of intelligent Touch Manager
LAN cable
Hub
PC
Installation Manual 3P291714-2B
DCM601A71 intelligent Touch Manager
<SERVICE LAN socket and LAN SW
switch>
A
SERVICE LAN
B
LAN SW
English
