Setting address with navigation remote controller

The operation procedure of the navigation remote controller is as follows.
NOTE
You cannot perform the following procedure when the display backlight is off. In this
case, press any key to turn on the backlight before starting the procedure.

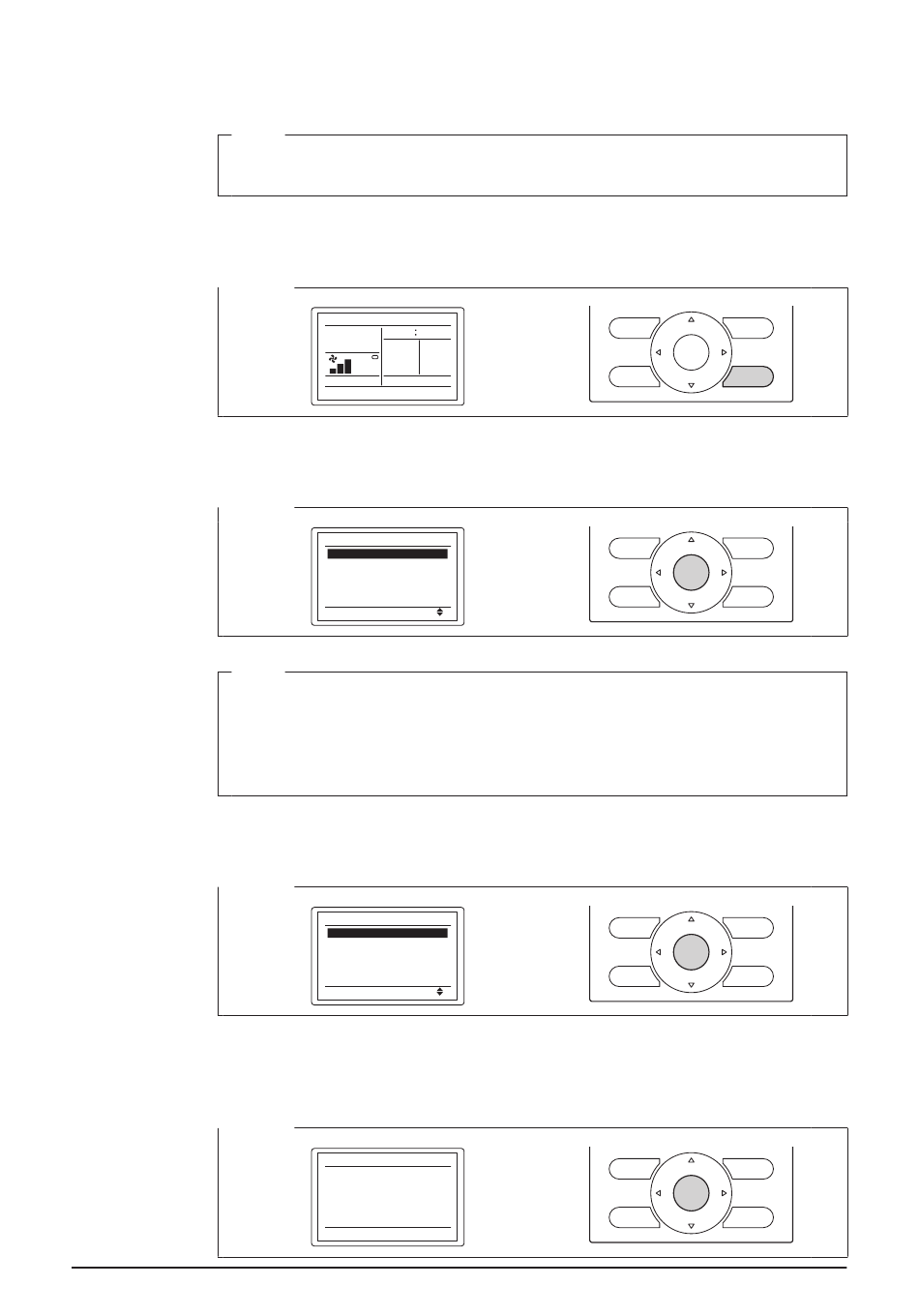

1. Press and hold the Cancel button for 4 seconds or more.
The "Service setting" menu is displayed.
<Step 1>
2. Using the Up/Down buttons, select "Group Address" and press the Menu/OK button.
The "Group Address" menu is displayed.
<Step 2>
NOTE
The "Group Address" menu is not displayed when the intelligent Touch Manager is not
powered on. Power on the intelligent Touch Manager and wait for a while before trying
to operate the remote controller. The "Group Address" menu is not displayed also when
the intelligent Touch Manager is not communicating with the indoor units normally.
Check that the cables are connected correctly.
3. Using the Up/Down buttons, select "Group Address (Group)" and press the Menu/OK button.
The current address setting is displayed.
<Step 3>
4. Press the Menu/OK button to release the current address setting.
The mode indication changes from "Set" to "Release". You are now ready to change the
DIII-NET address.
<Step 4>
38
5 31
Thu
P
Cool
Room Set to
82
78
F
F
S e r v i c e S e t t i n g s 2/3
Group Address
Indoor unit AirNet Address
Error Histor y
Indoor Unit Status
Outdoor Unit Status
Forced Fan ON
Setting
Group Address
Group Address (Group)
Group Address (Unit)
Setting
Group Address (Group)
Gr Addr. Set
1-00
Release
