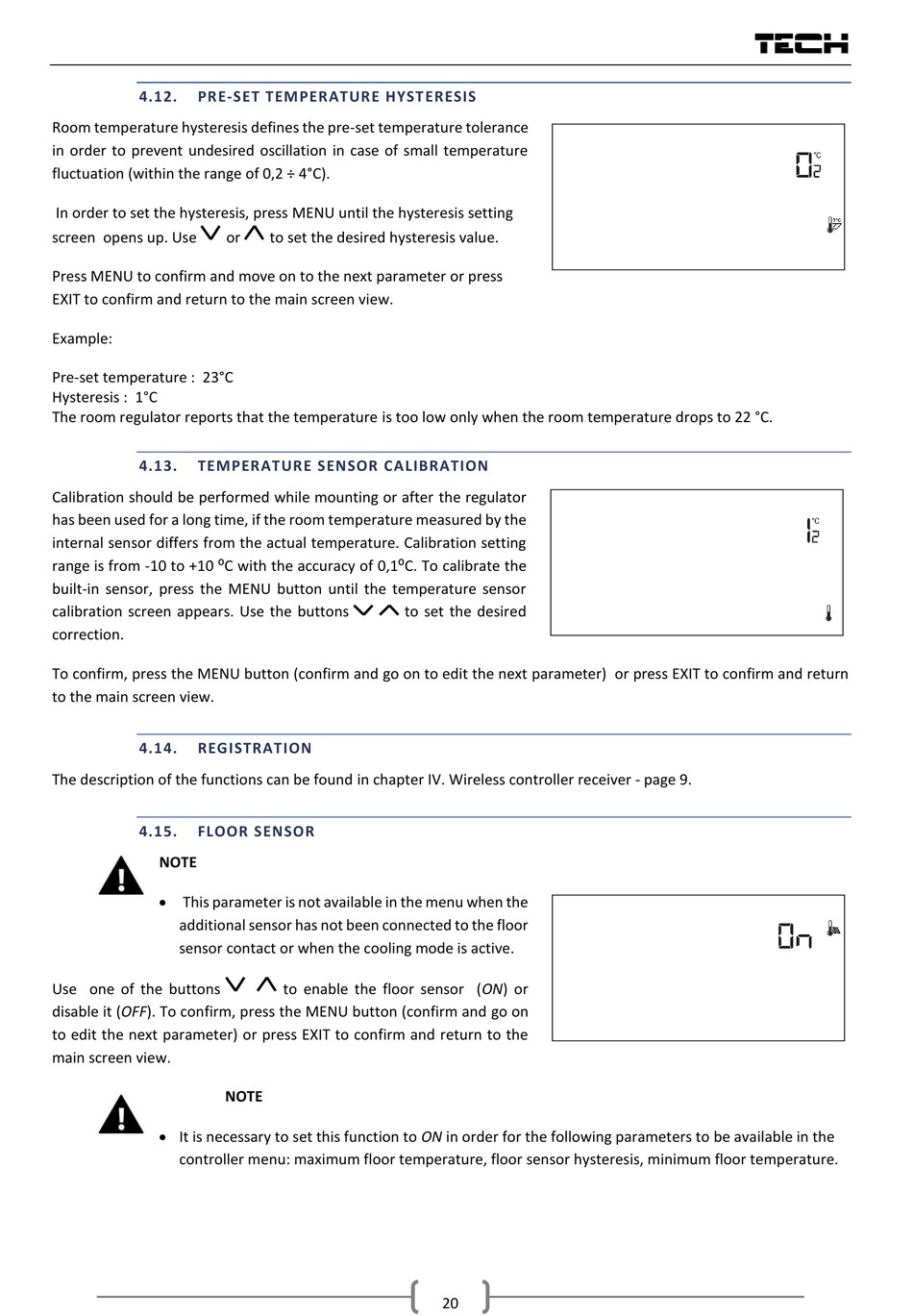

4.12. PRE-SET TEMPERATURE HYST ERESIS
Room temperature hysteresis defines the pre-set temperature tolerance
in order to prevent undesired oscillation in case of small temperature
fluctuation (within the range of 0,2 ÷ 4°C).
In order to set the hysteresis, press MENU until the hysteresis setting
screen opens up. Use
Press MENU to confirm and move on to the next parameter or press
EXIT to confirm and return to the main screen view.
Example:
Pre-set temperature : 23°C
Hysteresis : 1°C
The room regulator reports that the temperature is too low only when the room temperature drops to 22 °C.
4.13.

TEMPERATURE SENSOR CALIBRATION

Calibration should be performed while mounting or after the regulator
has been used for a long time, if the room temperature measured by the
internal sensor differs from the actual temperature. Calibration setting
range is from -10 to +10 ⁰C with the accuracy of 0,1⁰C. To calibrate the
built-in sensor, press the MENU button until the temperature sensor
calibration screen appears. Use the buttons
correction.
To confirm, press the MENU button (confirm and go on to edit the next parameter) or press EXIT to confirm and return
to the main screen view.
4.14.

REGISTRATION

The description of the functions can be found in chapter IV. Wireless controller receiver - page 9.
4.15.

FLOOR SENSOR

NOTE
 This parameter is not available in the menu when the
additional sensor has not been connected to the floor
sensor contact or when the cooling mode is active.
Use one of the buttons
disable it (OFF). To confirm, press the MENU button (confirm and go on
to edit the next parameter) or press EXIT to confirm and return to the
main screen view.
 It is necessary to set this function to ON in order for the following parameters to be available in the
controller menu: maximum floor temperature, floor sensor hysteresis, minimum floor temperature.
or to set the desired hysteresis value.
to enable the floor sensor (ON) or
NOTE
to set the desired
20
TECH
