TECH

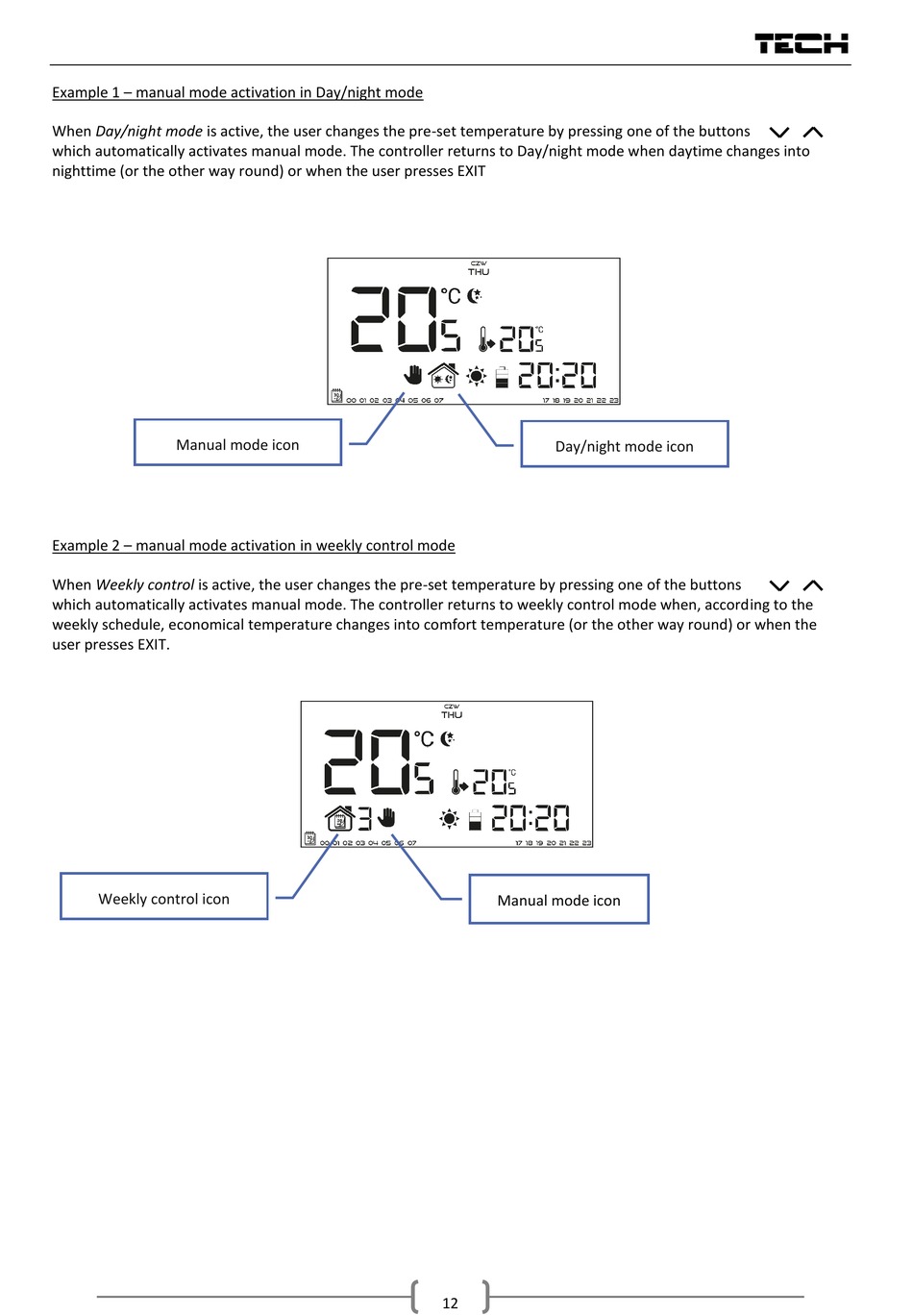

Example 1 – manual mode activation in Day/night mode
When Day/night mode is active, the user changes the pre-set temperature by pressing one of the buttons
which automatically activates manual mode. The controller returns to Day/night mode when daytime changes into
nighttime (or the other way round) or when the user presses EXIT
Manual mode icon
Day/night mode icon
Example 2 – manual mode activation in weekly control mode
When Weekly control is active, the user changes the pre-set temperature by pressing one of the buttons
which automatically activates manual mode. The controller returns to weekly control mode when, according to the
weekly schedule, economical temperature changes into comfort temperature (or the other way round) or when the
user presses EXIT.
Weekly control icon
Manual mode icon
12
