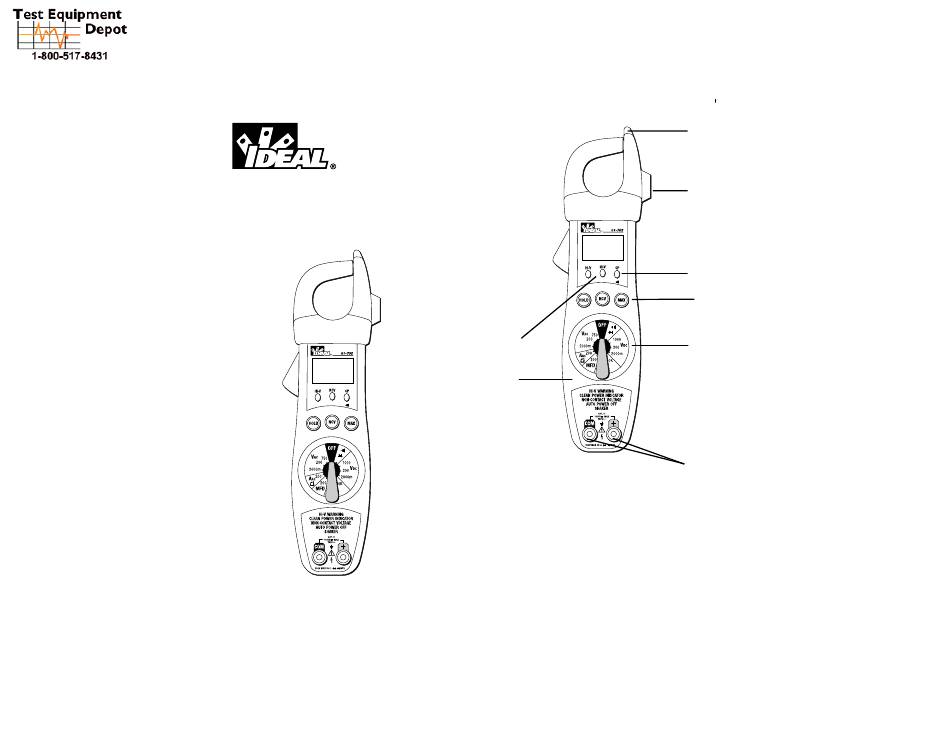

99 Washington Street
Melrose, MA 02176
Fax 781-665-0780
TestEquipmentDepot.com

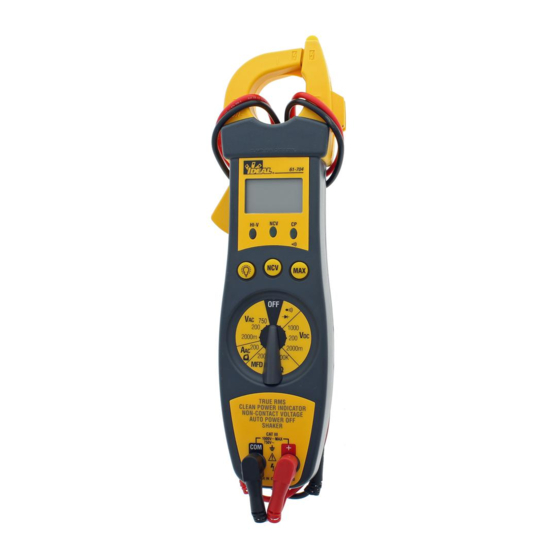

700 Series
200 Amp Clamp Meters
#61-700
#61-701
#61-702
5
4
1. Non-contact voltage (NCV) (#61-701 and #61-702)
With the NCV tab on the tip of the clamp close to an AC
voltage, press the NCV button. The NCV LED will light and
the beeper will beep. The closer the NCV tab is to AC volt-
age, the louder the beep.
To differentiate between hot and neutral in an outlet, insert
the NCV tab into each slot in the outlet. The beeper will be
much louder on the hot side of the outlet than the neutral.
1
2
3
6
7
8
2
Advertisement
Table of Contents
Related Manuals for Test Equipment Depot IDEAL 700 Series
Summary of Contents for Test Equipment Depot IDEAL 700 Series
- Page 1 99 Washington Street Melrose, MA 02176 Fax 781-665-0780 TestEquipmentDepot.com #61-700 #61-701 #61-702 700 Series 200 Amp Clamp Meters 1. Non-contact voltage (NCV) (#61-701 and #61-702) With the NCV tab on the tip of the clamp close to an AC voltage, press the NCV button. The NCV LED will light and the beeper will beep.
- Page 2 Fully discharge all capacitors before measuring. for non-contact voltage. On the #61-700, this is a reset button to reset the hold and max values. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com...
- Page 3 Accuracy is specified as ± (% of reading + number of least significant digits). Range Resolution Accuracy Models Display 200A 0.1A 199.9 ±(3%+5) 61-700, 61-701, 61-702 Frequency response: 50Hz - 60Hz; ±(5%+5) 60Hz - 400Hz. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com...
- Page 4 Frequency response: 50Hz - 500Hz; ±(2%+5) 500Hz - 1KHz; Range Resolution Accuracy Model 50Hz - 500Hz on 600V and 750V ranges. Display 2k~40kHz 40.0 ±(0.1%+3) 61-700, 61-701 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com...
- Page 5 400V and 90V. If the diode under test is defective, “000” 5. Measure the resistance. (short circuit) or “OL” (non-conductive) is displayed. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com...
- Page 6 To avoid electrical shock, remove test lead before opening the cover. Repairs or servicing not covered in this manual should only be performed by qualified personnel. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com...
