Summary of Contents for Test Equipment Depot 9305

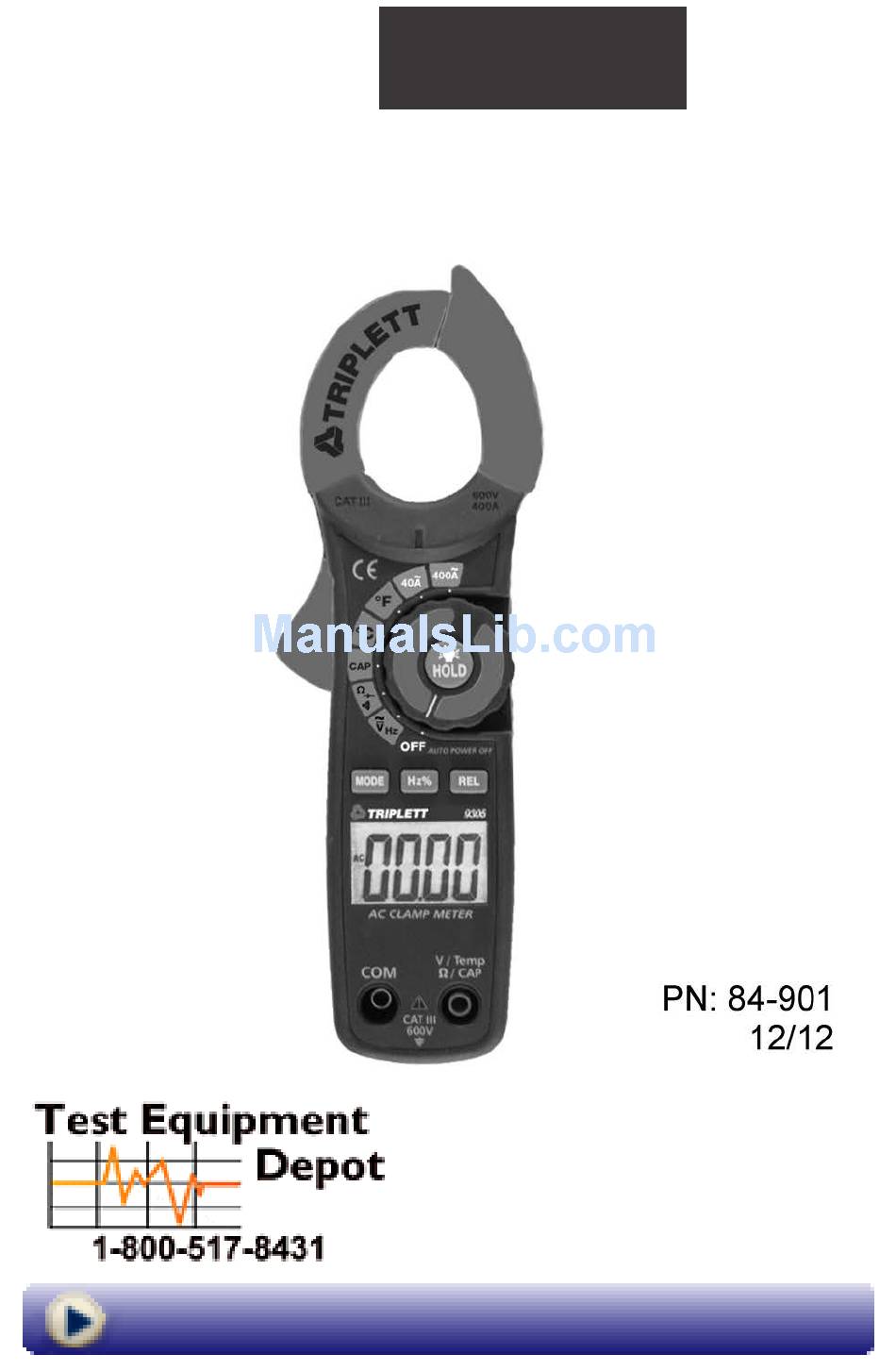

- Page 1 9 3 0 5 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
-
Page 2: Safety Notes
Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present Double insulation SAFETY NOTES •... - Page 3 CAUTIONS Improper use of this meter can cause damage, shock, injury or death. Read and understand this user manual before operating the meter. Always remove the test leads before replacing the battery. Inspect the condition of the test leads and the meter itself for any damage before operating the meter.
-
Page 4: Meter Description
Meter Description 1. Current clamp 2. Non-contact AC voltage indicator light 3. Clamp trigger 4. Data Hold button/Backlite 5. Rotary Function swith 6. MODE select button 7. Hz% Hlod button 8. Relative button 9. LCD display 10. COM input jack 11. -
Page 5: Specifications
Specifications Function Range & Accuracy (% of reading) Resolution 40.00AAC ± (2.5 % + 8 digits) AC Current (50/60Hz) 400.0 AAC ± (2.8 % + 8 digits) 400.0 mVDC ± (0.8% + 2 digits) 4.000 VDC ± (1.5% + 2digits) DC Voltage 40.00 VDC 400.0 VDC... - Page 6 Clamp size Opening 1.2" (30mm) approx Diode Test Test current of 0.3mA typical; Open circuit voltage 1.5V DC typical. Continuity Check Threshold <150Ω; Test current < 0.5mA Low Battery Indication “ ” is displayed Overrange Indication “OL” is displayed Measurements Rate 2 per second, nominal Input Impedance 10MΩ...
-
Page 7: Operation
Operation NOTICES: Read and understand all warning and precaution statements listed in the safety section of this operation manual prior to using this meter. Set the function select switch to the OFF position when the meter is not in use. AC Current Measurements WARNING: Ensure that the test leads are disconnected from the meter before making current... - Page 8 Resistance Measurements Insert the black test lead into the negative COM terminal and the red test lead into the positive terminal. Set the function switch to the Ω •))) position. Touch the test probe tips across the circuit or component under test.
- Page 9 1. Set the function switch to °C or °F. 2. Insert the Temperature Probe into the negative (COM) and the V jacks, making sure to observe the correct polarity. Test Equipment Depot - 800.517.8431 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
- Page 10 3. Touch the Temperature Probe head to the part whose temperature you wish to measure. Keep the probe touching the part under test until the reading stabilizes (about 30 seconds). 4. Read the temperature in the display. The digital reading will indicate the proper decimal point and value.
-
Page 11: Mode Button
NOTE: The detector is designed with high sensitivity. Static electricity or other sources of energy may randomly cause the red indicator to light. This is normal operation. MODE BUTTON To select DC/ACV,OHM/ Diode/Continuity Data Hold Button / Backlite To freeze the LCD meter reading, press the data hold button. While data hold is active, the HOLD display icon appears on the LCD. -
Page 12: Range Button
RANGE BUTTON When the meter is first turned on, it automatically goes into AutoRanging. This automatically selects the best range for the measurements being made and is generally the best mode for most measurements. For measurement situations requiring that a range be manually selected, perform the following: 1. - Page 13 Triplett Three Year Limited Triplett warrants instruments and test equipment manufactured by it to be free from defective material or workmanship and agrees to repair or replace such products which, under normal use and service, disclose the defect to be the fault of our manufacturing, with no charge within three years of the date of original purchase for parts and labor.
- Page 14 PURCHASE, AND THE PROVISIONS OF THE WARRANTY ARE EXPRESSLY IN LIEU OF ANY OTHER WARRANTIES EXPRESSED OR IMPLIED. The purchaser agrees to assume all liability for any damages and bodily injury which may result from the use or misuse of the product by the purchaser, his employees, or others, and the remedies provided for in this warranty are expressly in lieu of any other liability Triplett may have, including incidental or...
- Page 15 Notes...
- Page 16 Test Equipment Depot - 800.517.8431 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
