MikroTik NetMetal Series User Manual

NetMetal-series
This User Manual covers NetMetal models:
NetMetal 5,
NetMetal 5SHP,
NetMetal 5 triple,
NetMetal 5SHP triple.

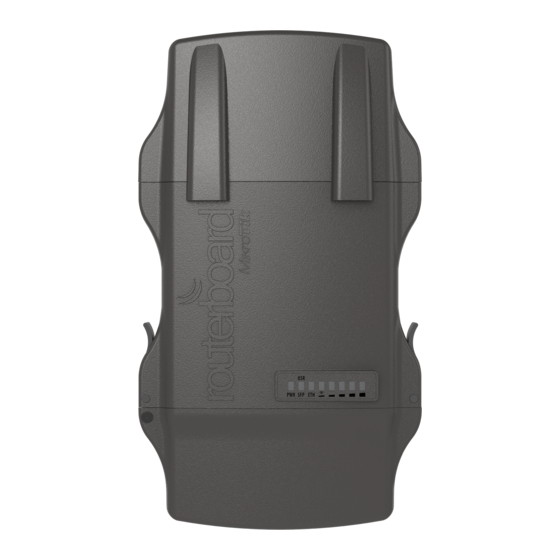

The NetMetal is a solid and waterproof outdoor device. It has a high power wireless interface, and one Gigabit Ethernet connector, which supports MDI-X
auto-detection. The device has two or three RP-SMA connectors for connecting external antennas (depends on model). The device is packaged with a 24
V power adapter, a PoE injector, and two mounting loops. There are four models available – two Three-chain devices (with miniPCIe slot and without), and
two Dual-chain models (with miniPCIe slot and without). Extra places for more RP-SMA connectors are available on the unit in this case.

First use

1. Connect the device to the included PoE injector with Ethernet cable;
2. Connect the PoE injector into the computer;
3. Connect the power adapter to the PoE injector;
4. Download WinBox configuration tool
5. Default IP: 0.0.0.0, user name:
6. DHCP Client enabled on the bridge;
7. Once connected configure the device, so it has an active Internet connection
8. Upgrade the RouterOS software to the latest version
9. In the "QuickSet, CPE" menu set up the following: Choose your country, to apply country regulation settings;
10. Set the antenna gain, depending on the antenna used;
11. Set up your router password in the bottom field.

Mounting

The NetMetal is designed to be used outdoors and mounted on pole or DIN rail.
When mounting, please ensure that the cable feed is pointing downwards.
The IP rating scale of this device is IP66. We recommend using Cat6 shielded cables.
Warning! This equipment should be installed and operated with a minimum distance of 20 cm between the device and your body. Operation of this
equipment in the residential environment could cause radio interference.
Mounting and configuration of this device should be done by a qualified person.
The mounting hose clamp is provided with the package.
https://mt.lv/winbox ;
admin
and there is no password, use
https://mt.lv/upgrade
Neighbors tab and connect through MAC address;
https://mt.lv/configuration
;
;
