V-ZUG-Home
Install the app, network your appliances and
benefit from a wide range of useful functions.
Operating instructions
Combair V2000
Oven

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Combair V2000 and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG Combair V2000

Summary of Contents for V-ZUG Combair V2000

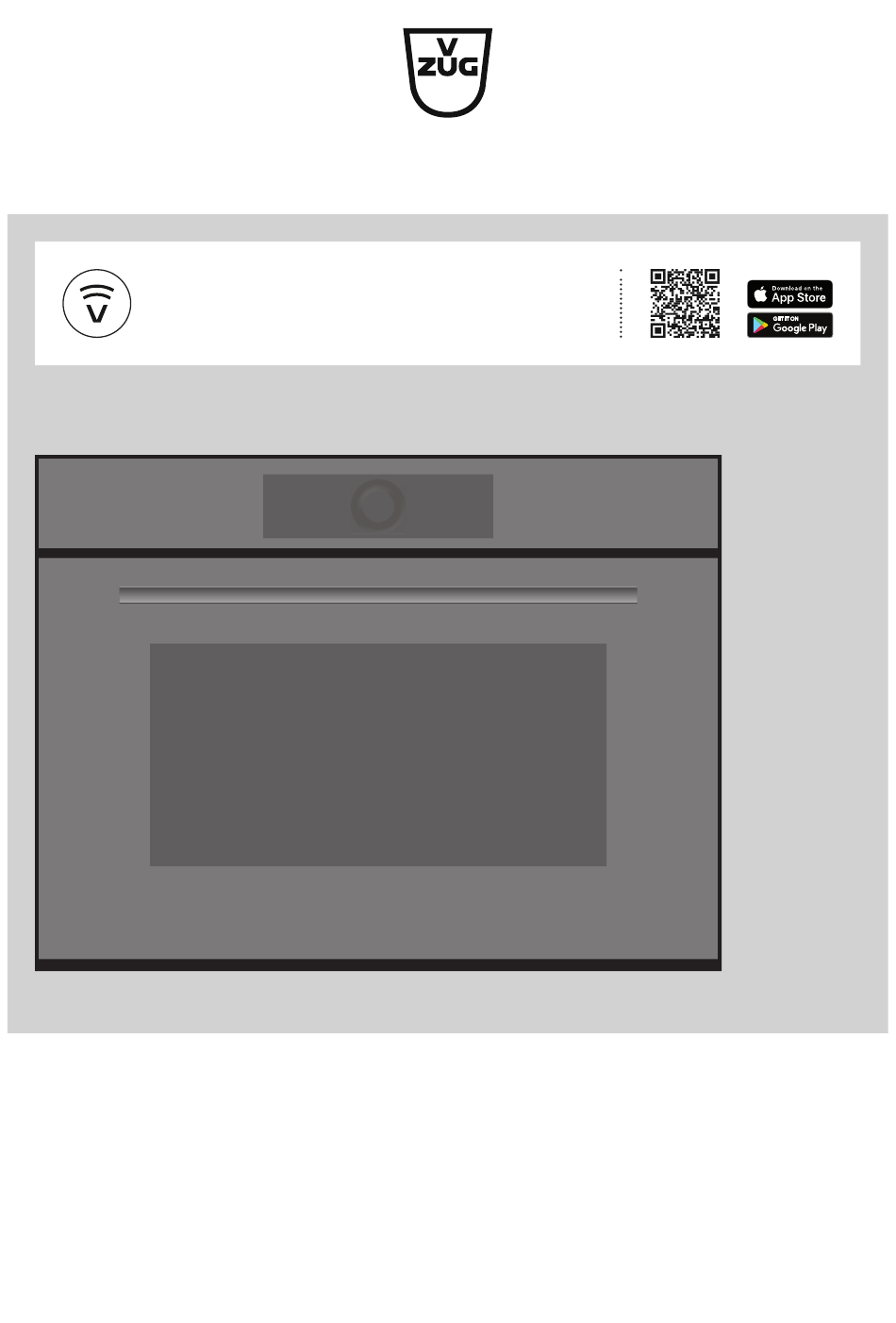

  • Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions Combair V2000 Oven...
  • Page 2 60-450 Variations depending on the model are noted in the text. Download updates to your appliance via V-ZUG-Home so that you are always up to date. The latest operating instructions with the new functions incorporated can be found here: vzug.com.

  • Page 3: Table Of Contents

    4.11 Favourites.............. 21 Assistance functions ..........  39 4.12 Pinning .............. 22 Date and time............  39 4.13 Timer .............. 23 V-ZUG Home ............  40 4.14 Illumination ............ 24 7.10 Appliance information ..........   40 4.15 Display lock ............ 24 7.11 Factory settings.............   41 4.16...
  • Page 4 Replacing the door seal ........ 44 Replacing the halogen light bulb ..... 45 Cleaning the accessories and shelf guides ... 46 Trouble-shooting  47 Error messages............ 47 Other possible problems........ 47 After a power failure.......... 48 Accessories and spare parts  49 10.1 Accessories ............ 49 10.2 Special accessories .......... 49 10.3 Spare parts ............ 49 Technical data...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...

  • Page 6: Instructions For Use

    1 Safety precautions to touch the heating ele- ▪ Under no circumstances use ments. Children under 8 a steam cleaner to clean the years of age must be kept appliance. away from the appliance un- ▪ WARNING: Before replacing less they are constantly su- the light bulb, ensure the ap- pervised.
  • Page 7 1 Safety precautions ▪ The appliance should only be installed ▪ For appliances with a grill: Keep the ap- and operated at an ambient temperat- pliance door closed while grilling. The ure of 5 °C to 35 °C. heat could otherwise damage the oper- ▪...
  • Page 8 1 Safety precautions ▪ Only leave the appliance door open in the airing position. An open appliance door poses a danger of tripping or in- jury! Do not sit or rest on the appliance door or use it as a storage surface. ▪...

  • Page 9: Using For The First Time

    Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective blue film from out of the cooking space. ▸...

  • Page 10: Appliance Description

    3 Appliance description Appliance description Construction Operating and display elements Ventilation opening Door handle Appliance door Operating and display elements App view List view Favourite for bread Here is where you can make User settings all key settings and customize your appliance. Grill...
  • Page 11 Cooking space illumination List view Display lock App view Quiet mode Switch off Clock Ready to start Hot air 180°C Start – – – – Application Start operation Main value Setting options Options Operating time Application tips Favourite Symbol V-ZUG-Home...

  • Page 12: Cooking Space

    3 Appliance description Cooking space Using protective inserts or aluminium foil can damage the appliance. Do not place any protective insert or aluminium foil on the floor of the cooking space. Appliance door Temperature sensor Door seal Grill / top heat Cooking space illumination Levels (labelled) Identification plate...
  • Page 13 3 Appliance description ▸ Ensure that the «sloped» side 1 of the baking tray is to the back of the cooking space. ▸ Only use the normal way round – not upside down. Wire shelf If you are using your oven in combination with a Steamer: Do not use the wire shelf from the oven in the steamer! Risk of rusting! The wire shelf from the Steamer is distinguished through a metal plate with a steam symbol.

  • Page 14: Operation

    4 Operation Operation Operating the display Switching the appliance on The appliance is operated using the display. The clock is only visible in EcoStandby if enabled in the user settings. ▸ Long touch the display. – The start screen appears. Changing the start screen view The start screen can be displayed in one of two ways: as an app view (see page 10) or as a list view.

  • Page 15: Selecting And Starting An Application

    4 Operation Expanding the right function bar The right function bar can be expanded at any time. ▸ Drag the bar 3 to the left. – The function bar expands. – More functions appear in the display. Using the CircleSlider ▸...
  • Page 16 4 Operation ▸ If required, repeat the procedure and select the desired application until the ready to start screen appears in the display: Hot air 180°C 2h00 – – 13:21 – – Start Adjusting values ▸ If necessary, adjust the main value 1 using the CircleSlider (see page 19). ▸...

  • Page 17: Changing An Application

    4 Operation Changing an application If an application has not started yet: ▸ Touch the «Start screen» function button. – The start screen appears (see page 15). – A new application can be selected. If an application is already running: ▸...

  • Page 18: Delayed Start / End

    4 Operation Hiding the clock during operation ▸ Either touch or press «OK». – The clock and operating time are hidden in the display. Delayed start / end The delayed start is activated when for the application selected both the operating time and end are set.

  • Page 19: Options

    4 Operation Options Overview Each application offers different options. Your appliance has the following «Options»: Preheat (see page 20) Start later (see page 20) Selecting and starting options ▸ Select an application from the desired application group and confirm with «OK», if re- quired (see page 15).

  • Page 20: Preheating

    4 Operation Preheating If the «Preheat» option has been turned on, do not put the food into the cooking space until the acoustic signal is emitted and the corresponding message ap- pears. With Preheat, the cooking space is quickly heated up to the desired temperature. Overview Preheating is only possible for the following applications: Top/bottom heat...

  • Page 21: Application Tips

    4 Operation Starting «Start later» ▸ Press «Start» to start the application. – The application starts and the time remaining is displayed. If both «End» and «Start later» have been set, the end time set is disregarded when starting «Start later». 4.10 Application tips The application tips provide helpful suggestions that range from the use of suitable ac-...

  • Page 22: Pinning

    4 Operation Changing favourites Once a favourite has been created, it can no longer be changed. ▸ To adjust individual values or settings compared to the old favourite, create a new fa- vourite and delete the old one if necessary. Changing favourite names The favourite name can only be changed in the app view.

  • Page 23: Timer

    4 Operation Pinning a main value ▸ Select the desired application (see page 15). – The ready to start screen appears in the display. ▸ Adjust the main value using the CircleSlider (see page 19). ▸ Press and hold the main value. –...

  • Page 24: Illumination

    4 Operation Checking and changing ▸ Touch the «Timer» function button. – The countdown to the time remaining appears in the display. ▸ Press and hold «Stop». – The timer is interrupted. ▸ Shorten or extend the duration of the timer using the CircleSlider. ▸...

  • Page 25: Quiet Mode

    4 Operation Turning off the display lock ▸ Press and hold – The display is unlocked. 4.16 Quiet mode The appliance runs as quietly as possible when in quiet mode. All tones are set at the lowest volume. The quiet mode can be turned on and off in the user settings (see page 38) as well as by using the quick access in the function bar.

  • Page 26: Cancelling / Ending Before Time

    4 Operation 4.18 Cancelling / ending before time Applications that are running can be cancelled or ended before time. Cancelling an application ▸ Press and hold «Stop». Hot air Operating time: 23min 16s 180°C Stop 169°C – – – – –...

  • Page 27: Subsequent Steps

    4 Operation ▪ Select one of the subsequent steps displayed to continue operation (see page 27). ▪ Select the function button to access the parent application menu. ▪ Select the function button to access the start screen (see page 15). ▪...

  • Page 28: Switching The Appliance Off

    4 Operation Continuing operation ▸ Select the desired subsequent step. – With subsequent step 1, the application just ended or cancelled is resumed. The main value (temperature or temperature setting) is applied directly from the applica- tion that has ended or been cancelled. –...

  • Page 29: Applications

    5 Applications Applications Top/Bottom heat Temperature range 30–280 °C Recommended value 200 °C Level The cooking space is heated by the top and bottom heating elements. Uses ▪ Classic application for cooking and baking on one level ▪ Cakes, biscuits, bread and roasts For crispy results, use a dark enamelled tray.

  • Page 30: Top/Bottom Heat Eco

    5 Applications Top/bottom heat eco Temperature range 30–250 °C Recommended value 200 °C Level This application is particularly energy-efficient. The cooking space is heated by the top and bottom heating elements. Any moisture that escapes from the food is retained in the cooking space, so the food dries out less.

  • Page 31: Grill

    5 Applications Use a dark enamelled tray without baking paper for very crispy results. Grill Temperature range 4 levels Recommended value High (level 3) Level The cooking space is heated by the grill element. Application ▪ Flat food for grilling, e.g. chicken parts and sausages ▪...

  • Page 32: Hot Air Humid

    5 Applications Uses ▪ Particularly suitable for baking savouries and biscuits on several levels at the same time ▪ Cakes, bread and roasts Select a lower temperature (reduce by approximately 20 °C) than for as the heat transfer is more efficient. Hot air humid Temperature range 30–250 °C...

  • Page 33: Sabbath Applications

    5 Applications 5.11 Sabbath applications In order to use the applications Sabbath top/bottom heat and Sabbath top/bottom heat humid, the «Sabbath mode» must be activated in the user settings (see page 39). Food can be kept warm for up to 78 hours without having to operate the appliance during this time.
  • Page 34 ▪ Only use pre-cooked food. ▪ Do not leave food in the appliance for too long before use. The timer cannot be used. The timer switches off when an application is started. V-ZUG-Home is not available during operation. Sabbath top/bottom heat Temperature range 30–140 °C...

  • Page 35: Keep Warm

    5 Applications 5.12 Keep warm Cooked foods can be kept warm using «Keep warm». If the cooking space is already hot, open the appliance door and allow the cooking space to cool down for about 10 minutes before starting the «Keep warm» func- tion.
  • Page 36 5 Applications ▸ To view the individual recipe steps, open the overview of the steps in the left content pane of the display. Select «1. Step». The overview of the steps opens and information on each step such as the application, temperature and operating time can be viewed. The action information contains instructions on what actions need to be taken.

  • Page 37: Zug-Home

    – A 6-digit PIN appears in the display of the household appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 38: User Settings

    7 User settings User settings Adjusting user settings ▸ Long touch the display. – The start screen appears. ▸ Select «User settings» and confirm with «OK», if required (see page 15). ▸ Select the desired user setting. – The main menu for the desired user setting or another submenu with more user settings appears in the display.

  • Page 39: Individual Settings

    If set to «On», a short preheat tone is emitted when it is time to put the food into the cooking space. Date and time Time synchronization The «Internet» setting is set automatically when connecting to V-ZUG-Home. The time, date and time zone are then synchronized directly from the app. Date The date can be called up and changed.

  • Page 40: V-Zug Home

    V-ZUG Home Mode It is possible to choose between «Off», «Display» and «Operate and display». To connect the appliance to «V-ZUG-Home», «Display» or «Operate and display» must be selected. Displaying information Displays all relevant information for the connection. Restarting interface The interface can be reset if difficulties are experienced establishing a connection.

  • Page 41: Factory Settings

    Resets the start screen to the app view. Favourites remain unchanged. Favourites Entering «OK» clears all existing favourites. V-ZUG-Home Disconnects all connections to mobile devices. Factory settings Resets the settings to the factory default state. All customized data will be lost.

  • Page 42: Cleaning The Cooking Space

    8 Care and maintenance Cleaning the cooking space Incorrect handling can result in damage to the appliance! Do not bend the temperature sensor or heating elements. Do not scour the surface. Scouring will damage the surface. ▸ Remove any soiling from the cooking space while still hand warm. Use a soft cloth dampened with water and a little washing-up liquid.
  • Page 43 8 Care and maintenance ▸ Close the appliance door as far as its airing position (about 30°). ▸ Lift the appliance door out evenly and at an angle. Reinstalling the appliance door ▸ Push the appliance door 3 evenly into both hinges 1 as far as it will go.

  • Page 44: Cleaning The Door Seal

    8 Care and maintenance ▸ Remove the intermediate door glass seal 2. ▸ Gently push the middle door glass 3 and raise it slightly up and away from the hinges. ▸ Clean the glass panels and dry well. ▸ Reassemble the glass panels as follows: Insert the middle door glass 3 into the door frame and gently push it back towards the hinges.
  • Page 45 8 Care and maintenance Removing the door seal ▸ In each of the four corners, turn the seal out- wards by about 30° and carefully pull the clip out of the slot. ▸ When all four clips have been released, re- move the seal.
  • Page 46 8 Care and maintenance Lateral illumination ▸ Remove the left shelf guide. ▸ Place the screw driver along the middle of the edge of the glass and carefully remove the glass light cover 2 from its fixture. ▸ Take out the faulty halogen light bulb. ▸...
  • Page 47 9 Trouble-shooting Trouble-shooting You may be able to trouble-shoot the following malfunctions yourself. If not, note down the error message in full (message, F and E numbers) and call Customer Services. Error messages Message Possible cause Solution ▪ «FX/EXX» ▪ Various situations can ▸...
  • Page 48 9 Trouble-shooting Problem Possible cause Solution ▪ Appliance door ▪ Power failure ▸ Appliance door can be opened does not open manually. automatically ▪ Appliance is faulty. ▸ Contact Customer Services. (depending on model) ▪ Illumination is ▪ Halogen light is de- ▸...
  • Page 49 10 Accessories and spare parts Prolonged power failure The appliance goes through its initial set-up process after a prolonged power failure. However, only the time and date need to be reset in order to operate the appliance again. It is not necessary to make any other settings. Accessories and spare parts The accessories shown below as well as spare parts can be ordered in addition to the scope of delivery of the appliance.
  • Page 50 11.4 Product fiche In accordance with EU Regulation No.: 66/2014 Brand – V-ZUG Ltd Type of appliance – Compact oven Model designation – Mass of SMS 55 appliance –...
  • Page 51 12 Tips and tricks Tips and tricks 12.1 Unsatisfactory cooking result... … for baking and roasting Result Solution ▪ The baking or roast ▸ Next time, set a lower temperature and lengthen the operat- looks good on the ing time. outside but is still doughy or raw on the inside.
  • Page 52 13 Disposal Power consumption can be reduced to a minimum by selecting «Hide time» in the user settings. Despite EcoStandby, the safety functions remain active. Disposal 13.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation.
  • Page 53 Index Door seal............ 44 Shelf guides .......... 46 Accessories ..........12, 49 Cleaning the exterior ........41 Clock ..............25 Moving ............ 14 Hiding.............  25 App view ............10 Hiding during operation...... 18 Appliance Showing............ 25 Disposal............ 52 Showing during operation...... 17 Switching off ..........
  • Page 54 Operating time..........17 Favourites............ 41 Setting............ 17 Pinned values .......... 41 Operation............14 Start screen...........  41 Options .............. 19 V-ZUG-Home.......... 41 Selecting............ 19 Favourites ............21 Starting............ 19 Changing............ 22 Other possible problems........ 47 Creating ............ 21 Overhead illumination ........45 Deleting ............
  • Page 55 Values Feedback tones ...........  39 Adjusting............ 16 Quiet mode ...........  38 Saving ............ 16 Sound worlds .......... 38 V-ZUG App ............37 Smartphone V-ZUG-Home............. 37 System requirements ........ 37 Displaying information ........  40 Spare parts ............49 Mode ..............  40 Special accessories .........
  • Page 56 Notes...
  • Page 59 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 60 Page change Adjustable value Favourite Temperature The temperature can be set using the CircleSlider. 1094128-06 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
