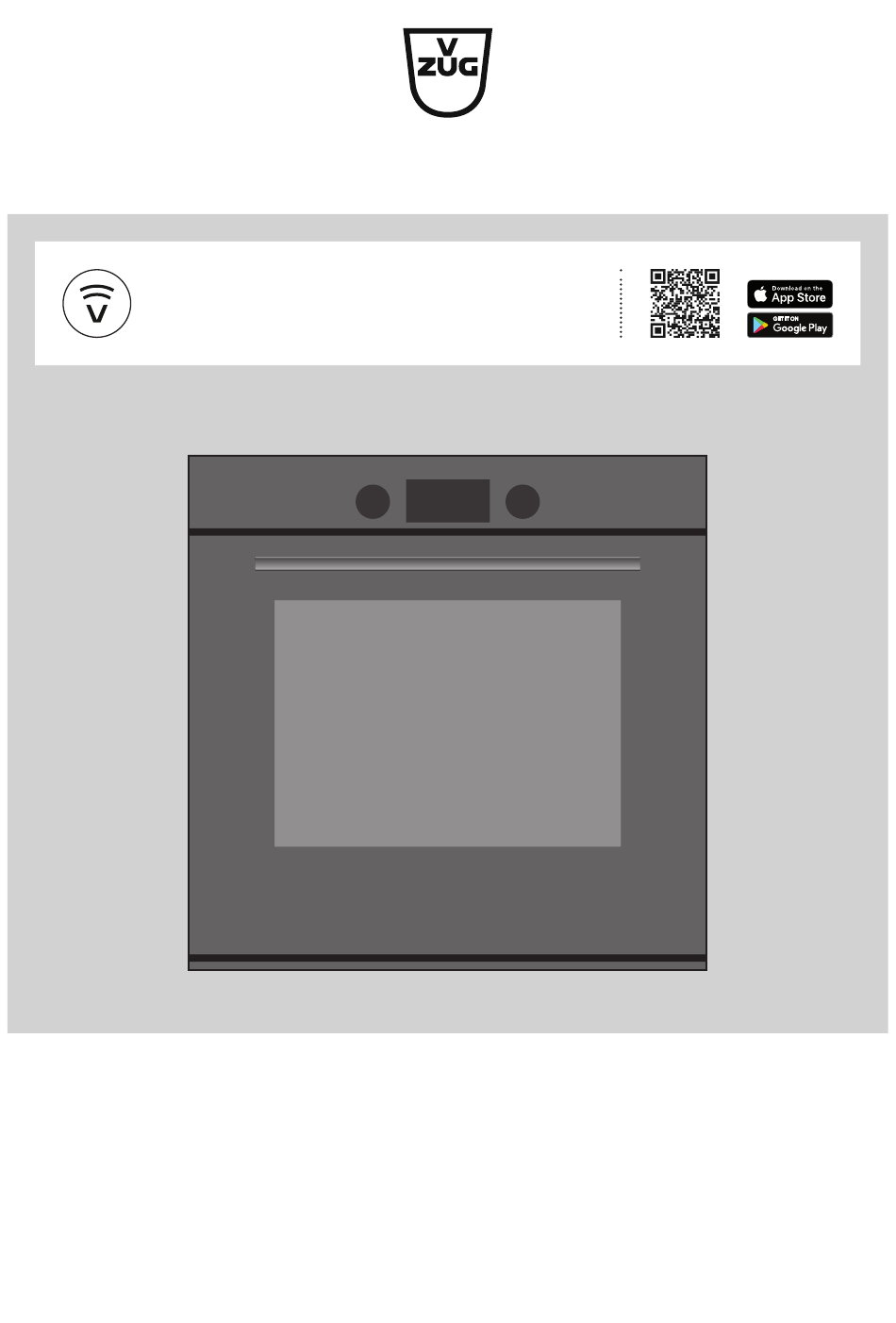

V-ZUG-Home
Install the app, network your appliances and
benefit from a wide range of useful functions.
Operating instructions
Combair V600
Oven

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Combair V600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG Combair V600

Summary of Contents for V-ZUG Combair V600

  • Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions Combair V600 Oven...
  • Page 2 60-600 Variations depending on the model are noted in the text. Download updates to your appliance via V-ZUG-Home so that you are always up to date. The latest operating instructions with the new functions incorporated can be found here: vzug.com.

  • Page 3: Table Of Contents

    Accessories............ 10 Acoustic signal ............  24 Operating the appliance  11 V-ZUG-Home............ 24 Switching the appliance on.......  11 Resetting V-ZUG-Home........ 25 Selecting the operating mode and the cooking space temperature.......... 11 Factory settings ...........  25 Display lock............ 12 8.10 Demo mode ............ 25 Switching the appliance off .......
  • Page 4 12.4 Product fiche............ 33 12.5 Product information .......... 34 12.6 EcoStandby ............ 34 Tips and tricks  34 13.1 Baking and roasting ...........  34 13.2 Cake .............. 34 13.3 Uneven browning .......... 35 13.4 Saving energy ............ 35 Disposal  36 Index  38 Notes  40...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...

  • Page 6: Instructions For Use

    1 Safety precautions to touch the heating ele- ▪ Under no circumstances use ments. Children under 8 a steam cleaner to clean the years of age must be kept appliance. away from the appliance un- ▪ WARNING: Before replacing less they are constantly su- the light bulb, ensure the ap- pervised.
  • Page 7 1 Safety precautions ▪ The appliance should only be installed Caution: Risk of burns! and operated at an ambient temperat- ▪ The appliance gets very hot when in ure of 5 °C to 35 °C. use. The appliance door also gets hot. ▪...
  • Page 8 1 Safety precautions ▪ For cookers: A hob guard can be fitted to protect small children. Hob guards are available from specialist retailers. Caution: Risk to life! ▪ Danger of suffocation! Keep packaging material, e.g. plastic film and poly- styrene, away from children. Packaging material can be dangerous for children.

  • Page 9: Using For The First Time

    Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials from out of the cooking space. ▸ Clean the cooking space and the accessories. ▸...

  • Page 10: Operating And Display Elements

    Do not place any protective in- sert or aluminium foil on the floor of the cooking space. Operating and display elements 12 47 °C V-ZUG-Home Display Cooking space temperature / Operating mode time function Function buttons Switching off Fast heating with actual...

  • Page 11: Operating The Appliance

    4 Operating the appliance ▸ Ensure that the «sloped» side 1 of the baking tray is to the back of the cooking space. ▸ Only use the normal way round – not upside down. Wire shelf ▪ For standing roasting and baking tins on ▪...

  • Page 12: Display Lock

    4 Operating the appliance Operating modes Hot air Grill Hot air humid Bottom heat Hot air eco Top/bottom heat eco PizzaPlus Top/bottom heat humid Grill-forced convection Top/bottom heat Display lock This function locks the display to, for example, enable the display to be cleaned or pre- vent accidental changes to the values.

  • Page 13: Function Buttons

    5 Function buttons Function buttons Various functions can be activated by touching the function buttons. Timer The timer functions like an egg timer. It can be used at any time and independently of all other functions. Setting ▸ Touch the button.

  • Page 14: Illumination

    5 Function buttons Illumination ▸ Touch the button to switch the cooking space illumination on and off. Plate warmer ▸ Put the wire shelf at level 1 and place the tableware on it. ▸ Touch the button to switch the function on and off. –...

  • Page 15: End Time

    5 Function buttons The maximum duration is 9 hours and 59 minutes. – The setting is automatically accepted after 10 seconds. – The duration remaining is visible in the display. Checking and changing ▸ Touch the function button. – The duration remaining appears in the display. –...

  • Page 16: Delayed Start

    5 Function buttons The end time can be delayed by a maximum of 23 hours and 59 minutes. ▸ The setting is automatically accepted after 10 seconds. – The duration remaining and the end time are visible in the display. Example ▸ Select the operating mode and 180 °C.
  • Page 17 5 Function buttons Setting the duration ▸ Touch the function button. ▸ Touch the function button. – «- -» appears in the display. ▸ Turn the dial to the left or right and set the duration. The maximum duration is 9 hours and 59 minutes. Setting a delayed start ▸...

  • Page 18: Operating Modes

    6 Operating modes Operating modes All the operating modes are described below. For the grill and bottom heat, the temperature can be set at one of five levels, with level 1 being the lowest and level 5 the highest heat setting. ▸...

  • Page 19: Hot Air Eco

    6 Operating modes Hot air eco Temperature range 30–250 °C Recommended value 180 °C Level 1 + 3 or 2 This operating mode is particularly energy-efficient. A heating element behind the back wall of the cooking space heats up the air inside the cooking space, which is circulated evenly.

  • Page 20: Grill

    6 Operating modes Uses ▪ Whole chicken (large, bulky food) ▸ Put food for grilling in a porcelain or glass dish or directly on the wire shelf. ▸ Line the baking tray with aluminium foil and then place it underneath the wire shelf. Grill Temperature range in 5 levels...

  • Page 21: Top/Bottom Heat Humid

    6 Operating modes Uses ▪ Classic operating mode for cooking and baking on one level ▪ Cakes, biscuits, bread and roasts Use a dark enamelled tray or a black tray or tin for crispy results. Top/Bottom heat humid Temperature range 30–250 °C Recommended value 200 °C...

  • Page 22: Zug-Home

    – A 6-digit PIN appears in the display of the household appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 23: Updating The Appliance

    8 User settings Updating the appliance While the appliance software is being up- dated via the V-ZUG App, three dots ap- pear in the display. Do not disconnect the appliance from the mains during the software update. User settings The following settings can only be made in the Off operating state.

  • Page 24: Time Display

    ▸ Touch to change the acoustic signal to level 2. ▸ Either save the change with «OK» or cancel it with V-ZUG-Home The V-ZUG-Home connection can be enabled. Enabling V-ZUG-Home ▸ Touch the function button. – Two choices appear in the display.

  • Page 25: Resetting V-Zug-Home

    8 User settings Further information on V-ZUG-Home and its availability can be found at home.vzug.com. Resetting V-ZUG-Home The V-ZUG-Home connection can be reset. Resetting the V-ZUG-Home connection ▸ Touch the function button. – The symbol appears in the display. – The colour of the symbol changes to amber.

  • Page 26: Care And Maintenance

    9 Care and maintenance Care and maintenance Risk of burns from hot surfaces! Allow the appliance and the accessories to cool down before cleaning. Incorrect handling can result in damage to the appliance! Use soft cloths only. Do not use any abrasive or caustic cleaning agents, metal scrapers that are sharp or scratch, steel wool, scouring pads, etc.

  • Page 27: Cleaning The Appliance Door

    9 Care and maintenance Cleaning the appliance door ▸ Clean the appliance door with a soft cloth dampened with water and a little washing- up liquid. ▸ Dry with a soft cloth. Removing the appliance door The appliance door is heavy. When removing and reinstalling the appliance door, hold it at the sides firmly with both hands.
  • Page 28 9 Care and maintenance Ensure that the appliance door is pushed in as far as it will go otherwise the appli- ance could get damaged when it is closed. Cleaning the door glass ▸ Lay the appliance door on a clean, flat surface (covered e.g.

  • Page 29: Cleaning The Accessories And Shelf Guides

    9 Care and maintenance Cleaning the accessories and shelf guides ▪ The wire shelf and shelf guides can be cleaned in the dishwasher. ▪ The baking tray can be cleaned in the dishwasher; however, this will affect its non- stick properties. Removing and putting back the shelf guides When inserting the shelf guides take care not to damage the enamel.

  • Page 30: Trouble-Shooting

    10 Trouble-shooting Overhead illumination ▸ Carefully unscrew the glass light cover 1 anti- clockwise and remove. ▸ Take out the faulty halogen light bulb. ▸ Carefully plug the new halogen light bulb into the socket – halogen type G9 / 25 W / 230 V. ▸...
  • Page 31 10 Trouble-shooting Message Possible cause Solution The illumination is ▪ The halogen light is faulty. ▸ Set all the dials to «0». not working ▸ Disconnect the appliance from the electricity supply. ▸ Replace the halogen light bulb. Noise occurs during ▪...

  • Page 32: After A Power Failure

    ▸ Turn the dial to the left or right to set the time. ▸ Confirm with «OK». – If V-ZUG-Home has been enabled, the appliance recon- nects automatically and the time is set automatically after a short time. Power failure during operation –...

  • Page 33: Technical Data

    Own measurements can be im- precise and are not suitable for checking the accuracy of the temperature. 12.4 Product fiche In accordance with EU Regulation No.: 65/2014 Brand – V-ZUG Type of appliance – Built-in oven Model designation – Model number...

  • Page 34: Product Information

    13 Tips and tricks 12.5 Product information In accordance with EU Regulation No.: 66/2014 Model designation – Mass of appliance Heat source per cavity – Electricity Volume per cavity 12.6 EcoStandby To prevent unnecessary energy consumption, the appliance is equipped with the auto- matic energy-saving «EcoStandby»...

  • Page 35: Uneven Browning

    13 Tips and tricks 13.3 Uneven browning Result Solution ▪ The baking has ▸ Next time, set a lower temperature and lengthen the dura- browned unevenly. tion. ▸ If using , check that the levels selected are as recommended in the separate «EasyCook brochure». ▸...
  • Page 36 14 Disposal Disposal 14.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 14.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 37 140/36, 17th Floor ITF Tower, London W1U 1PN Silom Road GREAT BRITAIN Suriyawong Sub-district Bangrak District Bangkok 10500 THAILAND HK/MO V-ZUG Hong Kong Co. Ltd. GÜRELLER 12/F, 8 Russell Street Anchor Sit.3A/1-2 Çayyolu Causeway Bay 06690 ÇANKAYA/ANKARA HONG KONG TURKEY Frigo 2000 S.p.A Private enterprise “Stirion”...
  • Page 38 Product information ......... 34 EasyCook ............32 EcoStandby............34 Removing food from cooking space ... 12 Electrical connection ........33 Resetting V-ZUG-Home ........25 Enabling V-ZUG-Home........24 End time ............15 Error messages..........30 Safety precautions External dimensions ........33 Appliance-specific .......... 5...
  • Page 39 Top/bottom heat eco ........21 Top/bottom heat humid........21 Type............... 2 Uneven browning ..........35 User settings............. 23 Using for the first time........9 Validity..............2 V-ZUG App ............22 V-ZUG-Home............. 22 Warranty extensions ........43 Wire shelf............ 11, 32 WLAN connection ..........22...
  • Page 40 Notes...

  • Page 43: Service And Support

    V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.

  • Page 44: Quick Instructions

    For many uses, it is possible to start with a cold cooking space. Switching off ▸ Touch the function button or turn the dial to the position. Function buttons Various functions can be activated by touching the function buttons. 1224968-04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
