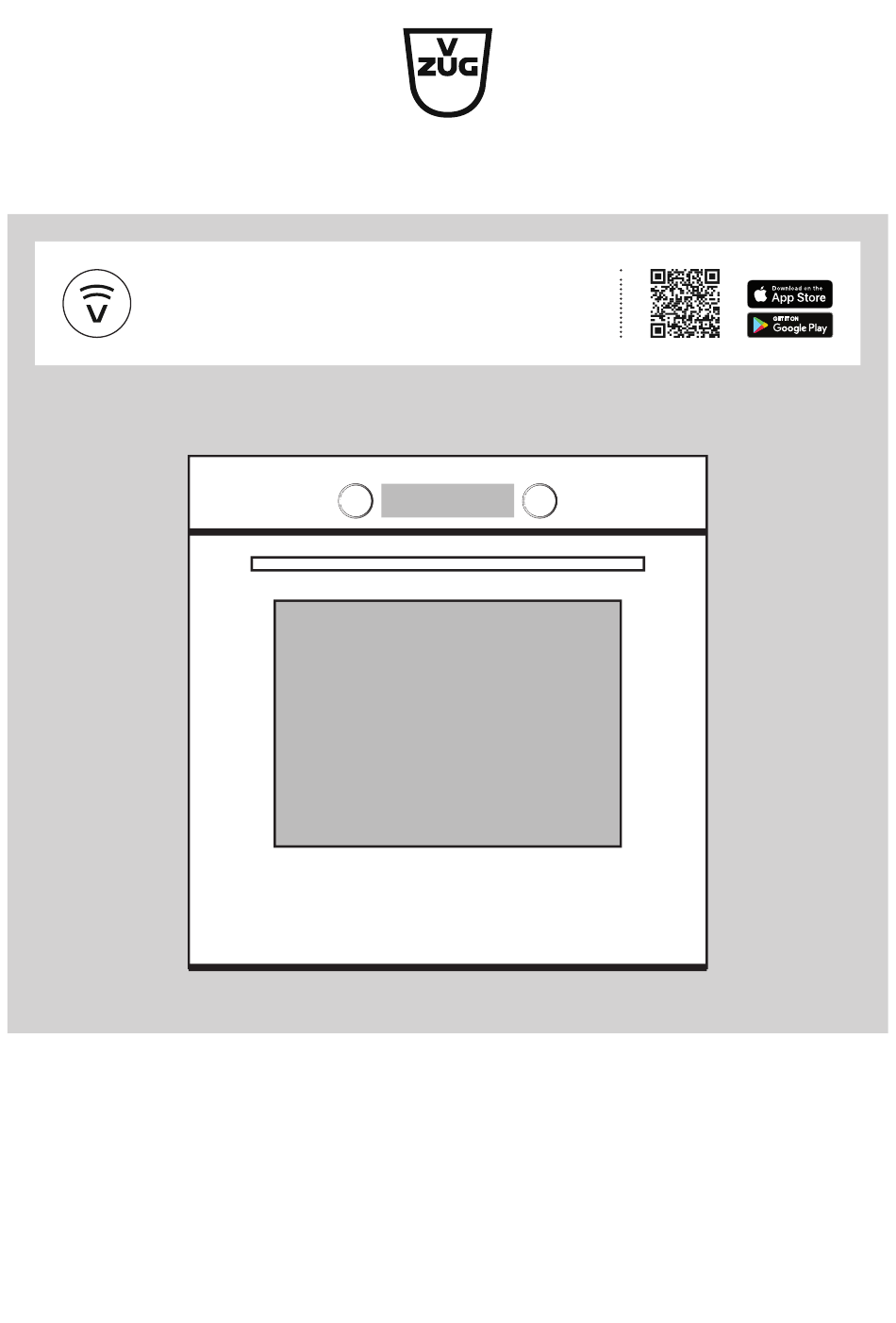

V-ZUG-Home
Install the app, network your appliances and
benefit from a wide range of useful functions.
Operating instructions
Combair V600
Oven

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Combair V600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG Combair V600

Summary of Contents for V-ZUG Combair V600

  • Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions Combair V600 Oven...
  • Page 2 60-600 Variations depending on the model are noted in the text. Download updates to your appliance via V-ZUG-Home so that you are always up to date. The latest operating instructions with the new functions incorporated can be found here: vzug.com.

  • Page 3: Table Of Contents

    Childproof lock ............  23 Operating and display elements ......  10 Time display ............ 24 Cooking space ............  11 Acoustic signal ............  24 Accessories............ 11 V-ZUG-Home............ 24 Operating modes  12 Factory settings ...........  24 Hot air.............. 12 Demo mode ............ 24 Hot air humid ............
  • Page 4 12.6 EcoStandby ............ 32 Tips and tricks  33 13.1 Baking and roasting ...........  33 13.2 Cake .............. 33 13.3 Uneven browning .......... 33 13.4 Saving energy ............ 34 Disposal  34 Index  36 Notes  38 Service & Support  39...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...

  • Page 6: Instructions For Use

    1 Safety precautions to touch the heating ele- ▪ Under no circumstances use ments. Children under 8 a steam cleaner to clean the years of age must be kept appliance. away from the appliance un- ▪ WARNING: Before replacing less they are constantly su- the light bulb, ensure the ap- pervised.
  • Page 7 1 Safety precautions ▪ The appliance should only be installed ▪ For appliances with a grill: Keep the ap- and operated at an ambient temperat- pliance door closed while grilling. The ure of 5 °C to 35 °C. heat could otherwise damage the oper- ▪...
  • Page 8 1 Safety precautions Caution: Risk of injury! ▪ Be careful not to put fingers in the door hinges, as there is otherwise a risk of injury if the appliance door is moved. Particular care should be taken when children are around. ▪...

  • Page 9: Using For The First Time

    Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials from out of the cooking space. ▸ Clean the cooking space and the accessories. –...

  • Page 10: Operating And Display Elements

    Fast heating Plate warmer Time function Cooking space illumination Illuminated symbols Hot air Temperature unit PizzaPlus Heating status Grill-forced convection Timer Grill Operating time Bottom heat Switch-off time Top/bottom heat Clock Additional function humid V-ZUG-Home Additional function eco Operation indicator...

  • Page 11: Cooking Space

    3 Appliance description Cooking space 1 Appliance door 2 Door seal 3 Illumination 4 Hot air cover 5 Cooking space temperature sensor 6 Grill / top heat 7 Levels (labelled) The bottom heating element is beneath the cooking space floor. Using protective inserts or alu- minium foil can damage the ap- pliance.

  • Page 12: Operating Modes

    4 Operating modes Wire shelf ▪ For standing roasting and baking tins on ▪ For standing meat, frozen pizza, etc. on ▸ Ensure that the bar 1 is to the back of the cooking space. This enables the food to be removed safely from the cook- ing space.

  • Page 13: Hot Air Humid

    4 Operating modes Hot air humid Temperature range 30–250 °C Recommended value 180 °C Level 1 + 3 or 2 A heating element behind the back wall of the cooking space heats up the air inside the cooking space, which is circulated evenly. Any moisture that escapes from the food is re- tained in the cooking space, so the food dries out less.

  • Page 14: Grill-Forced Convection

    4 Operating modes Uses ▪ Pizza ▪ Flans and quiches Use a dark enamelled tray or a black tray or tin without baking paper for very crispy results. Grill-forced convection Temperature range 30–280 °C Recommended value 200 °C Level 2 or 3 The cooking space is heated by the grill element.

  • Page 15: Top/Bottom Heat

    4 Operating modes Uses ▪ Baking flan bases ▪ Making preserves Use a dark enamelled tray or a black tray or tin for crispy results. Top/Bottom heat Temperature range 30–280 °C Recommended value 200 °C Level 2 (or 1) The cooking space is heated by the top and bottom heating elements. Uses ▪...

  • Page 16: Operating The Appliance

    5 Operating the appliance Uses ▪ Roasts, gratins, savouries and biscuits When baking using this operating mode, do not preheat. This lowers the energy consumption. The cooking time can be longer than with top/bottom heat. Use a dark enamelled tray or a black tray or tin for crispy results. Operating the appliance Selecting the operating mode ▸...

  • Page 17: Function Buttons

    6 Function buttons Function buttons Fast heating Use the button to speed up preheating. Fast heating can be used with the operating modes. ▸ Select the desired operating mode and cooking space temperature. ▸ Press the button. – The light bar below the symbol illuminates. As soon as an acoustic signal is emitted: –...

  • Page 18: Setting And Changing The Time

    6 Function buttons Setting and changing the time The time cannot be changed if the appliance is in operation or if a delayed start has been set. ▸ With the appliance switched off, hold the button depressed for 5 seconds. – flashes in the digital display.

  • Page 19: Operating Time

    6 Function buttons Operating time The operating mode selected ends automatically when the operating time is up. Setting ▸ Select the desired operating mode and cooking space temperature. ▸ Preheat the cooking space if necessary. ▸ Place the food in the cooking space. ▸...

  • Page 20: Switch-Off Time

    6 Function buttons Switch-off time The switch-off time only functions if a time has been set. The operating mode selected ends automatically when the desired switch-off time is reached. Setting ▸ Select the desired operating mode and cooking space temperature. ▸...

  • Page 21: Delayed Start

    6 Function buttons Delayed start The delayed start only functions if a time has been set. The appliance switches automat- ically on and off again at the desired times. Perishables should not be kept unrefrigerated. A delayed start cannot be set for operating modes that use the grill. Before setting the operating time and delayed start ▸...

  • Page 22: Zug-Home

    ▸ Search the Google Play Store or the App Store® for «V-ZUG». ▸ Install and open the V-ZUG App. Enabling the V-ZUG-Home mode on the appliance ▸ Set to the «Display» or «Operate and display» mode under «V-ZUG-Home» in the user settings.

  • Page 23: User Settings

    – A 6-digit PIN appears in the display of the household appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 24: Time Display

    ▪ display ▪ operate and display ▪ Reset Further information on V-ZUG-Home and its availability can be found at home.vzug.com. Factory settings User settings that have been changed can be restored to the factory settings Restoring the factory settings ▸ Select the user setting and press the button.

  • Page 25: Care And Maintenance

    9 Care and maintenance Care and maintenance Risk of burns from hot surfaces! Allow the appliance and the accessories to cool down before cleaning. Incorrect handling can result in damage to the appliance! Use soft cloths only. Do not use any abrasive or caustic cleaning agents, metal scrapers that are sharp or scratch, steel wool, scouring pads, etc.

  • Page 26: Cleaning The Appliance Door

    9 Care and maintenance Cleaning the appliance door ▸ Clean the appliance door with a soft cloth dampened with water and a little washing- up liquid. ▸ Dry with a soft cloth. Removing the appliance door The appliance door is heavy. When removing and reinstalling the appliance door, hold it at the sides firmly with both hands.
  • Page 27 9 Care and maintenance Ensure that the appliance door is pushed in as far as it will go otherwise the appli- ance could get damaged when it is closed. Cleaning the door glass ▸ Lay the appliance door on a clean, flat surface (covered e.g.

  • Page 28: Cleaning The Accessories And Shelf Guides

    9 Care and maintenance Cleaning the accessories and shelf guides ▪ The wire shelf and shelf guides can be cleaned in the dishwasher. ▪ The baking tray can be cleaned in the dishwasher; however, this will affect its non- stick properties. Removing and putting back the shelf guides When inserting the shelf guides take care not to damage the enamel.

  • Page 29: Trouble-Shooting

    10 Trouble-shooting Lateral illumination ▸ Remove the left shelf guide. ▸ Place the screwdriver along the middle of the edge of the glass light cover and carefully re- move the glass light cover 2 from its fixture. ▸ Take out the faulty halogen light bulb. ▸...

  • Page 30: After A Power Failure

    10 Trouble-shooting Message Possible cause Solution Thick smoke is given ▪ The food is too near to the ▸ Check that the level selected is off when grilling heating elements. as recommended in «Tips and tricks» and in the separate «EasyCook brochure».

  • Page 31: Accessories And Spare Parts

    11 Accessories and spare parts Accessories and spare parts Please give serial number of the appliance and exact designation of the accessory or spare part when ordering parts. 11.1 Accessories Baking tray Wire shelf EasyCook brochure 11.2 Special accessories For information see: www.vzug.com 11.3 Spare parts...

  • Page 32: Temperature Measurement

    Own measurements can be im- precise and are not suitable for checking the accuracy of the temperature. 12.4 Product fiche In accordance with EU Regulation No.: 65/2014 Brand – V-ZUG Type of appliance – Built-in oven Model designation – Model number...
  • Page 33 13 Tips and tricks Tips and tricks 13.1 Baking and roasting Result Solution ▪ The baking or roast ▸ Next time, set a lower temperature and lengthen the operat- looks good on the ing time. outside but is still ▸ Check that the settings selected correspond to those re- doughy or raw on the commended in the separate «EasyCook brochure».
  • Page 34 14 Disposal 13.4 Saving energy operating modes consume less energy than the operat- ing modes. ▸ Only switch the illumination on when needed. ▸ Avoid opening the appliance door frequently during operation. ▸ Use residual heat: for longer cooking times, i.e. over 30 minutes duration, switch the appliance off 5–10 minutes before the end of the cooking time.
  • Page 35 140/36, 17th Floor ITF Tower, London W1U 1PN Silom Road GREAT BRITAIN Suriyawong Sub-district Bangrak District Bangkok 10500 THAILAND HK/MO V-ZUG Hong Kong Co. Ltd. GÜRELLER 12/F, 8 Russell Street Anchor Sit.3A/1-2 Çayyolu Causeway Bay 06690 ÇANKAYA/ANKARA HONG KONG TURKEY Frigo 2000 S.p.A Private enterprise “Stirion”...
  • Page 36 Index Accessories ..........11, 31 Grill ..............14 Acoustic signal ..........24 Grill-forced convection ........14 Addresses of the importers ......35 Appliance Disposal............ 34 Halogen light bulb ........... 31 Appliance door Replacing ............ 28 Hot air ..............12 Reinstalling............  26 Removing ............
  • Page 37 Tips and tricks ..........33 Top/bottom heat ..........15 Top/bottom heat eco ........15 Top/bottom heat humid........15 Type............... 2 Uneven browning ..........33 User settings............. 23 Using for the first time........9 Validity..............2 V-ZUG App ............22 V-ZUG-Home..........22, 24...
  • Page 38 Notes...
  • Page 39 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
  • Page 40 For many uses, it is possible to start with a cold cooking space. Switching off ▸ Turn the dial to the «0» position. – The symbol goes out. Function buttons Various functions can be activated by touching the function buttons. 1200639-04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
