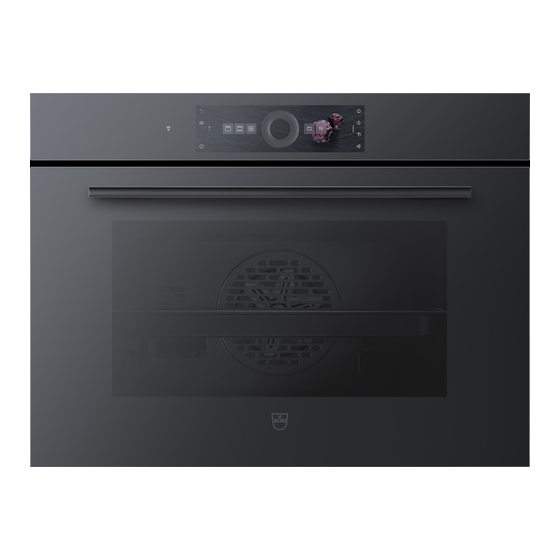

- Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions Combair V4000 Oven...
- Page 2 Validity These operating instructions apply to: Model designation Type Size system Combair V4000 45 C4T-21049 60-450 Combair V4000 45P C4T-21058 60-450 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2022...
-
Page 3: Table Of Contents
4.14 Timer .............. 24 Assistance functions .......... 45 4.15 Illumination ............ 25 Date and time............ 45 4.16 Display lock ............ 25 V-ZUG Home ............ 46 4.17 Quiet mode ............ 26 7.10 Appliance information .......... 46 4.18 Time................ 26 7.11 Factory settings............. 46 4.19... - Page 4 Cleaning the baking tray ........ 47 Pyrolytic self-cleaning ......... 48 Cleaning the appliance door ...... 49 Cleaning the door seal ........ 51 Replacing the door seal ........ 52 Replacing the door seal (in pyrolytic appliances) ............ 52 Replacing the halogen light bulb ..... 53 8.10 Cleaning the accessories and shelf guides ... 54 Trouble-shooting 54 Error messages............ 54...
-
Page 5: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 6: Instructions For Use
1 Safety precautions to touch the heating ele- ▪ For appliances with pyrolytic ments. Children under 8 self-cleaning: Excessive soil- years of age must be kept ing and any and all accessor- away from the appliance un- ies (tableware, baking trays, less they are constantly su- runners, shelf guides) must pervised. - Page 7 1 Safety precautions ▪ Ensure there are no foreign bodies or Correct use pets in the cooking space before clos- ▪ The appliance is designed for use in ing the appliance door. the home for preparing food. Under no ▪ Objects that could pose a danger if the circumstances flambé...
- Page 8 1 Safety precautions ▪ Accessories get hot in the cooking space. Use protective gloves or oven cloths. Caution: Risk of injury! ▪ Be careful not to put fingers in the door hinges, as there is otherwise a risk of injury if the appliance door is moved. Particular care should be taken when children are around.
-
Page 9: Using For The First Time
Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective blue film from out of the cooking space. ▸... -
Page 10: Appliance Description
3 Appliance description Appliance description Construction Operating and display elements Ventilation opening Door handle Appliance door Operating and display elements App view List view Favourite for bread Here is where you can make User settings all key settings and customize your appliance. EasyCook Function bars with function buttons CircleSlider... - Page 11 Right function buttons Step back Timer Start screen Cooking space illumination List view Display lock App view Quiet mode Switch off Clock V-ZUG-Home Ready to start Hot air 15min 13:21 Start Application Start operation Main value Setting options Options Operating time...
-
Page 12: Cooking Space
3 Appliance description Cooking space Using protective inserts or aluminium foil can damage the appliance. Do not place any protective insert or aluminium foil on the floor of the cooking space. Appliance door Cooking space ventilation Door seal Temperature sensor Cooking space illumination Grill / top heat Identification plate... - Page 13 3 Appliance description ▸ Ensure that the «sloped» side 1 of the baking tray is to the back of the cooking space. ▸ Only use the normal way round – not upside down. Wire shelf If you are using your oven in combination with a Steamer: Do not use the wire shelf from the oven in the steamer! Risk of rusting! The wire shelf from the Steamer is distinguished through a metal plate with a steam symbol.
-
Page 14: Operation
4 Operation Operation Operating the display Switching the appliance on The appliance is operated using the display. The clock is only visible in EcoStandby if enabled in the user settings. ▸ Long touch the display. – The start screen appears. Changing the start screen view The start screen can be displayed in one of two ways: as an app view (see page 10) or as a list view. -
Page 15: Selecting And Starting An Application
4 Operation Expanding the right function bar The right function bar can be expanded at any time. ▸ Drag the bar 3 to the left. – The function bar expands. – More functions appear in the display. Using the CircleSlider ▸... - Page 16 4 Operation Selecting an application ▸ Select the desired application using the CircleSlider. – Choose an item in the list by swiping, navigating and touching it. ▸ Touch the desired application and press «OK» or touch the application again. – The ready to start screen or another submenu with more applications appears in the display.
-
Page 17: Changing An Application
4 Operation Changing an application If an application has not started yet: ▸ Touch the «Start screen» function button. – The start screen appears (see page 15). – A new application can be selected. If an application is already running: ▸... -
Page 18: Delayed Start / End
4 Operation Hiding the clock during operation ▸ Either touch or press «OK». – The clock and operating time are hidden in the display. Delayed start / end The delayed start is activated when for the application selected both the operating time and end are set. -
Page 19: Food Probe Temperature
4 Operation Food probe temperature Only use the food probe supplied. Do not clean the food probe in the dishwasher. Always keep the plug clean. The food probe is used to measure the temperature inside the food (referred to as the food probe temperature). -
Page 20: Options
4 Operation Options Overview Each application offers different options. Your appliance has the following «Options»: Preheat (see page 21) Food probe temperature (see page 19) Start later (see page 21) Selecting and starting options ▸ Select an application from the desired application group and confirm with «OK», if re- quired (see page 15). -
Page 21: Preheating
4 Operation Preheating If the «Preheat» option has been turned on, do not put the food into the cooking space until the acoustic signal is emitted and the corresponding message ap- pears. With Preheat, the cooking space is quickly heated up to the desired temperature. Overview Preheating is only possible for the following applications: Top/bottom heat... -
Page 22: Application Tips
4 Operation Starting «Start later» ▸ Press «Start» to start the application. – The application starts and the time remaining is displayed. If both «End» and «Start later» have been set, the end time set is disregarded when starting «Start later». 4.11 Application tips The application tips provide helpful suggestions that range from the use of suitable ac-... -
Page 23: Pinning
4 Operation Changing favourites Once a favourite has been created, it can no longer be changed. ▸ To adjust individual values or settings compared to the old favourite, create a new fa- vourite and delete the old one if necessary. Changing favourite names The favourite name can only be changed in the app view. -
Page 24: Timer
4 Operation Pinning a main value ▸ Select the desired application (see page 15). – The ready to start screen appears in the display. ▸ Adjust the main value using the CircleSlider (see page 20). ▸ Press and hold the main value. –... -
Page 25: Illumination
4 Operation Checking and changing ▸ Touch the «Timer» function button. – The countdown to the time remaining appears in the display. ▸ Press and hold «Stop». – The timer is interrupted. ▸ Shorten or extend the duration of the timer using the CircleSlider. ▸... -
Page 26: Quiet Mode
4 Operation Turning off the display lock ▸ Press and hold – The display is unlocked. 4.17 Quiet mode The appliance runs as quietly as possible when in quiet mode. All tones are set at the lowest volume. The quiet mode can be turned on and off in the user settings (see page 44) as well as by using the quick access in the function bar. -
Page 27: Cancelling / Ending Before Time
4 Operation 4.19 Cancelling / ending before time Applications that are running can be cancelled or ended before time. Cancelling an application ▸ Press and hold «Stop». Hot air 210°C Stop 15min 13:21 – The application is cancelled. – A feedback tone is emitted, if enabled. –... -
Page 28: End Of Operation
4 Operation 4.20 End of operation When the set duration / the step duration is up or when the set target temperature is reached. – The application ends automatically. – An acoustic signal is emitted. – In the display appears: «Process finished». ▸... -
Page 29: Subsequent Steps
4 Operation 4.21 Subsequent steps Subsequent steps are applications that can be used to continue operation after an ap- plication has ended or been cancelled. They are used, for example, to brown food off. The selection of subsequent steps available depends on the application that has just ended or been cancelled. -
Page 30: Appliance Tips
5 Applications Display after switching off Depending on the application and settings, the following is shown in the darkened dis- play. – The residual heat and the temperature if it is above 80 °C. – The food probe temperature if the food probe is still plugged in. 4.23 Appliance tips Appliance tips provides tips on operating the appliance by topic. -
Page 31: Top/Bottom Heat Humid
5 Applications Top/Bottom heat humid Temperature range 30–250 °C Recommended value 200 °C Level The cooking space is heated by the top and bottom heating elements. The natural hu- midity produced is largely retained in the cooking space. The food retains its moisture. Uses ▪... -
Page 32: Pizzaplus
5 Applications Uses ▪ Finish off baking ▪ Preserving, bottling Use a dark enamelled tray or a black tray or tin for crispy results. PizzaPlus Temperature range 30–280 °C Temperature range for pyrolytic 30–300 °C appliance Recommended value 200 °C Level The cooking space is heated by hot air and bottom heat. -
Page 33: Grill-Forced Convection
5 Applications Grill-forced convection Temperature range 30–280 °C Temperature range for pyrolytic 30–300 °C appliance Recommended value 200 °C Level The cooking space is heated by the grill element. The hot air fan distributes the air evenly in the cooking space. Uses ▪... -
Page 34: Hot Air Eco
5 Applications Uses ▪ For savouries and biscuits on two levels at the same time ▪ For yeast pastries and bread on two levels at the same time ▪ Gratins and baked dishes Select a lower temperature (reduce by approximately 20 °C) than for as the heat transfer is more efficient. - Page 35 ▪ Do not leave food in the appliance for too long before use. The timer and heatable appliance drawer cannot be operated at the same time. They are turned off when the application is started. V-ZUG-Home is not available during operation.
-
Page 36: Soft Roasting
5 Applications Sabbath top/bottom heat Temperature range 30–140 °C Recommended value 85 °C Level The cooking space is heated by the top and bottom heating elements. Uses ▪ For heating up or keeping pre-cooked, crispy food and bakery goods warm on one level ▪... - Page 37 5 Applications Soft roasting table for «Soft roasting seared» Cut of meat Degree of doneness Recommended target temperature °C Fillet of veal medium well done Rump or loin of veal medium well done Shoulder of veal well done Neck of veal well done Veal topside medium...
- Page 38 5 Applications The meat can also be browned after cooking. This has little effect on the degree of doneness of large cuts of meat. For small cuts of meat, the target temperature should be reduced by 2–3 °C. ▸ Insert the food probe into the meat so that the tip is in the centre of the thickest part. For a correct food probe temperature reading, the food probe must as far as pos- sible be fully inserted into the centre of the food.
-
Page 39: Keep Warm
5 Applications Cancelling / ending soft roasting before time ▸ Press and hold «Stop» to cancel soft roasting. – The following appears in the display: «Do you really want to cancel the applica- tion?» ▸ To cancel or turn off soft roasting before time, touch «Yes». - Page 40 5 Applications Starting a recipe For recipes that do not require preheating, place the food in the cold cooking space. ▸ Long touch the display. – The start screen appears. ▸ Select the «Recipes» application group and confirm with «OK», if required (see page 15).
-
Page 41: Easycook
5 Applications While the recipe is running While the recipe is running, it may be necessary to open the appliance door, e.g. to turn the food over or to put in more food. In such an instance, operation is paused and the display shows instructions on what to do next. -
Page 42: Zug-Home
EasyCook menu. Any number of national cuisines can be activated. V-ZUG-Home Conditions The following conditions must be met for full use of V-ZUG-Home: ® ▪ Access to the internet and to Google Play Store / App Store ▪... -
Page 43: Initial Set-Up
Store or the App Store® for «V-ZUG». ▸ Install and open the V-ZUG App. Enabling the V-ZUG-Home mode on the appliance ▸ Set to the «Display» or «Operate and display» mode under «V-ZUG-Home» in the user settings. Connecting the appliance to the home network ▸... -
Page 44: Childproof Lock
7 User settings Childproof lock The childproof lock is to prevent children accidentally switching on the appliance. When the childproof lock is activated, the appliance can only be operated after first en- tering a code. The code is displayed in reverse order when unlocking. The childproof lock is activated within 1 minute of the appliance being switched off. -
Page 45: Assistance Functions
If set to «On», a short preheat tone is emitted when it is time to put the food into the cooking space. Date and time Time synchronization The «Internet» setting is set automatically when connecting to V-ZUG-Home. The time, date and time zone are then synchronized directly from the app. Date The date can be called up and changed. -
Page 46: V-Zug Home
V-ZUG Home Mode It is possible to choose between «Off», «Display» and «Operate and display». To connect the appliance to «V-ZUG-Home», «Display» or «Operate and display» must be selected. Displaying information Displays all relevant information for the connection. Restarting interface The interface can be reset if difficulties are experienced establishing a connection. -
Page 47: Customer Services
8 Care and maintenance Resetting Resets all EcoManagement counters except for total consumption. 7.13 Customer Services This part of the menu is intended for service staff and is password-protected. Care and maintenance Risk of burns from hot surfaces! Allow the appliance and the accessories to cool down before cleaning. Incorrect handling can result in damage to the appliance! Use soft cloths only. - Page 48 8 Care and maintenance Pyrolytic self-cleaning Risk of burns from hot surfaces! The appliance front gets hotter than during normal operation. There is likely to be some smoke given off for a short period of time so ventilate the room during pyro- lysis.
- Page 49 8 Care and maintenance The appliance door cannot be opened until the temperature has dropped below 300 °C. ▸ Wait until the appliance has cooled to hand warm to remove any residue left behind using a soft cloth dampened with water. Do not use cleaning agents. At the front of the cooking space is the door seal.
- Page 50 8 Care and maintenance Reinstalling the appliance door ▸ Push the appliance door 3 evenly into both hinges 1 as far as it will go. ▸ Open the appliance door as far as it will go and fold back the clips 2. –...
- Page 51 8 Care and maintenance ▸ Put the door glass 5 back in. To do this, insert the door glass 5 into the door frame and gently push it back towards the hinges. – The markings on the glass must be legible. ▸...
- Page 52 8 Care and maintenance Replacing the door seal We generally recommend the door seal be replaced by our service staff. However, you can also replace the door seal of your appliance yourself. We accept no liability for any damage caused by the door seal not having been fitted properly.
- Page 53 8 Care and maintenance ▸ Fit the seal starting in one of the corners at the top. ▸ Insert the clip so that it hooks into the outer slot. ▸ Once the seal is fitted at the top, insert the bot- tom two clips.
- Page 54 9 Trouble-shooting 8.10 Cleaning the accessories and shelf guides ▪ The wire shelf and shelf guides can be cleaned in the dishwasher. ▪ The baking tray can be cleaned in the dishwasher; however, this will affect its non- stick properties. Removing and putting back the shelf guides When inserting the shelf guides take care not to damage the enamel.
- Page 55 9 Trouble-shooting Message Possible cause Solution ▪ «A1/E24» ▪ Temperature must ▸ Allow the appliance to cool down. drop below 300 °C ▸ Acknowledge the error message by touching «OK». – Appliance is ready for operation again. ▪ «A1/E69» in ▪ Door status detection ▸...
- Page 56 9 Trouble-shooting Problem Possible cause Solution ▪ Thick smoke is ▪ The food is too near ▸ Check that the level selected is as re- given off when to the heating ele- commended in «EasyCook». grilling ments. ▪ Grill setting is too ▸...
- Page 57 10 Accessories and spare parts Accessories and spare parts The accessories shown below as well as spare parts can be ordered in addition to the scope of delivery of the appliance. Ordering spare parts is subject to charge, except in the event of warranty claims.
- Page 58 Own measurements can be im- precise and are not suitable for checking the accuracy of the temperature. 11.3 Product fiche In accordance with EU Regulation No.: 66/2014 Brand – V-ZUG Ltd Type of appliance – Compact oven Model designation – C4T | C4T...P...
- Page 59 12 Tips and tricks … for baking and roasting Result Solution ▪ The baking or roast ▸ Next time, set a lower temperature and lengthen the operat- looks good on the ing time. outside but is still doughy or raw on the inside.
- Page 60 13 Disposal Disposal 13.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 13.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
- Page 61 Index Baking tray............ 47 Cooking space.......... 47 3-point food probe........... 13 Door glass............. 50 Door seal............ 51 Shelf guides .......... 54 Accessories ..........12, 57 Cleaning the exterior ........47 Clock ..............26 Moving ............ 14 Hiding............. 26 App view ............10 Hiding during operation......
- Page 62 F and E messages .......... 54 Factory settings ..........46 Favourites............ 46 Notes ..............64 Pinned values .......... 46 Start screen........... 46 V-ZUG-Home.......... 46 Operating and display elements....10 Favourites ............22 Operating time..........17 Changing............ 23 Setting............ 17 Creating ............ 22 Operation............
- Page 63 Cancelling or switching off before time... 39 Adjusting............ 16 How it functions ........... 36 Saving ............ 16 Seared ............ 37 V-ZUG App ............43 Selecting and starting ......... 38 V-ZUG-Home Soft roasting table..........37 Spare parts ............57 Displaying information ........ 46 Special accessories .........
- Page 64 Notes...
- Page 67 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
- Page 68 Place your finger on the CircleSlider Move app and move it in a circle. Page change Adjustable value Favourite Temperature The temperature can be set using the CircleSlider. 1094184-04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
