Instructions/Parts
WALL MOUNT, STAINLESS STEEL
1:1 Ratio Husky
1050 Circulation Pump
Modules and Packages
For high-volume circulation of fluids. For professional use only.
Circulation Package 24H316, with Agitator
Circulation Pump Modules 24H313 and 24H314
100 psi (0.7 MPa, 6.9 bar) Maximum Fluid Working Pressure
100 psi (0.7 MPa, 6.9 bar) Maximum Air Inlet Pressure
See page 3 for model information, including approvals.
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
®
3A1318B

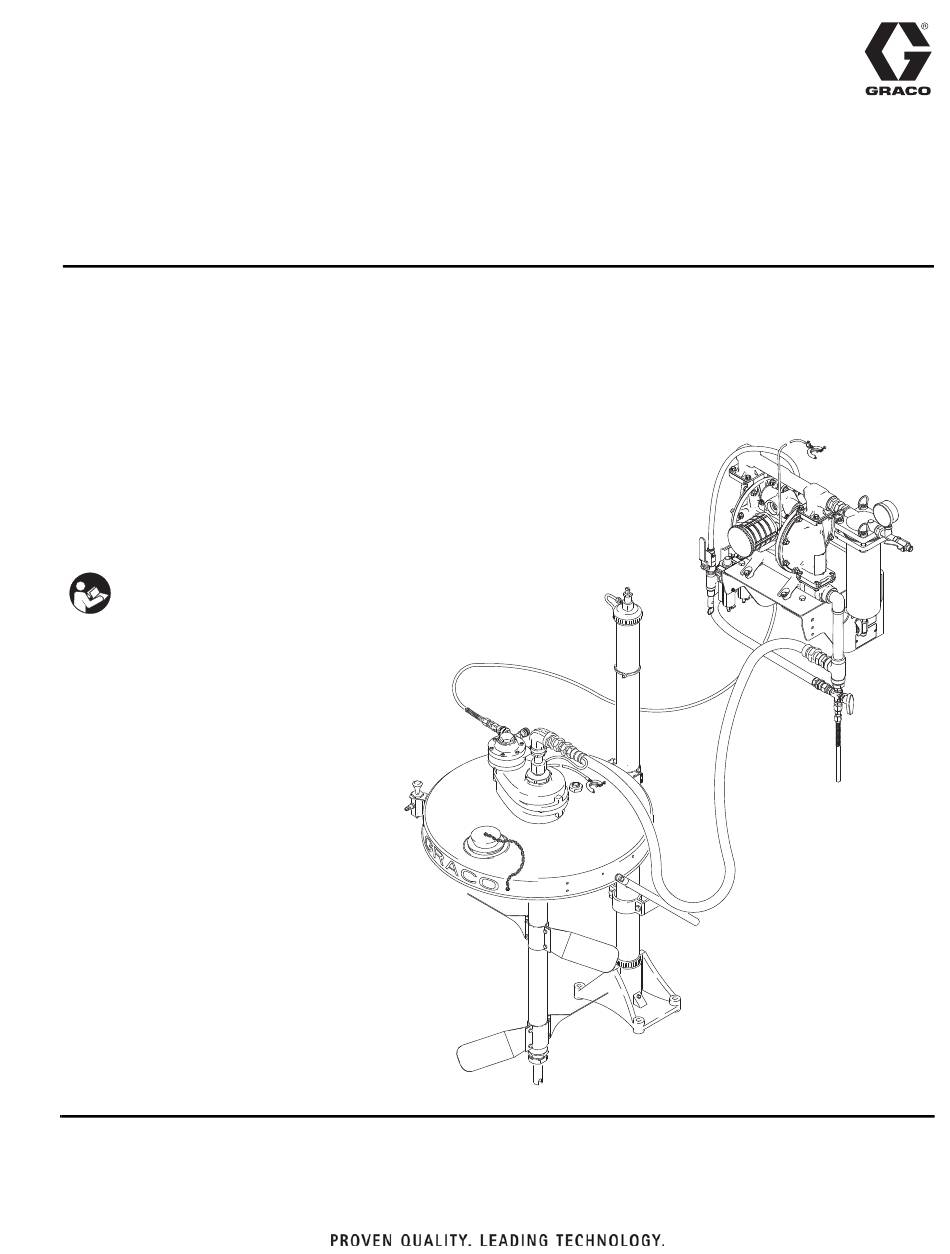

24H316 Circulation Package
with Agitator Shown
ti7803c
ENG

Advertisement

Table of Contents
loading

Summary of Contents for Graco 24H316

  • Page 1 3A1318B Modules and Packages For high-volume circulation of fluids. For professional use only. Circulation Package 24H316, with Agitator Circulation Pump Modules 24H313 and 24H314 100 psi (0.7 MPa, 6.9 bar) Maximum Fluid Working Pressure 100 psi (0.7 MPa, 6.9 bar) Maximum Air Inlet Pressure See page 3 for model information, including approvals.
  • Page 2: Table Of Contents

    Connect the Fluid Lines ....8 Graco Information ......28 Connect the Air Line .
  • Page 3: Models

    Working Pressure Inlet Pressure Part No. Series Description Ratio psi (MPa, bar) psi (MPa, bar) 24H316* Includes stainless steel pump module, 100 (0.7, 6.9) 100 (0.7, 6.9) elevator, stainless steel drum cover, and back-geared agitator Circulation Pump Modules Maximum Fluid...
  • Page 4: Warnings

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
  • Page 5 Warnings WARNING PRESSURIZED EQUIPMENT HAZARD Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin and cause serious injury. • Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing equipment.
  • Page 6: Installation

    The pump bracket (32) must be bolted to the 1. If you are installing Package 24H316, select a site wall with four bolts. with at least 9 ft. (2.8 m) overhead clearance for the elevator when raised.
  • Page 7: Air Exhaust Ventilation

    10. Slide the pipe adapter (11d) into the quick connector (11c), close, and tighten the captive screw. Installing Supply Module Using the Quick Connectors (Circulation Package 24H316, with Agitator) To open a quick connector (11c), loosen the captive screw (S) and open the connector. Slide the desired...
  • Page 8: Connect The Fluid Lines

    NOTE: Module 239857 is included in Circulation trapped between it and the air motor when the valve Package 24H316, with Agitator. Refer to page 7 for is closed. Be sure the bleed valve is easily accessi- ble from the pump, and is located downstream installation instructions.
  • Page 9 Installation 11a 11b 24H316 Circulation Package with Agitator Shown Ensure that there is 9 ft (2.8 m) overhead clearance for the elevator when fully raised. Mount the pump module so the top of the bracket is 4 to 5 ft (1.2 to 1.5 m) above the floor.
  • Page 10: Grounding

    Installation Grounding The equipment must be grounded. Grounding reduces the risk of static and electric shock by providing an escape wire for the electrical current due to static build up or in the event of a short circuit. ti0720a . 4. Ground Agitator and Suction Hose 1.
  • Page 11: Operation

    Operation Operation Pressure Relief Procedure Starting and Adjusting the Pump Trapped air can cause the pump to cycle unexpectedly, which could result in serious injury from accidental Refer to F . 3, page 35, and to F . 5, page 13. spray from the gun, splashing fluid, or moving parts.
  • Page 12: Elevator Operation

    Operation Agitator Operation 9. When you have achieved the desired spray pattern, release the gun trigger. The pump will continue to cycle as long as air is supplied and the back pres- 1. Close the agitator’s needle valve (L). sure regulator (12) is open. 2.
  • Page 13 Operation 24H316 Circulation Package with Agitator Shown Items 12 and 14 are partially hidden. 12, 14 ti7803c . 5. Important Operation Components 3A1318B...
  • Page 14: Maintenance

    Maintenance Maintenance Preventive Maintenance 7. Start the pump. Always use the lowest possible fluid pressure when flushing. Schedule 8. Trigger the gun. Flush the system until clear solvent The operating conditions of your particular system flows from the gun. determine how often maintenance is required. Establish a preventive maintenance schedule by recording when 9.
  • Page 15: Torque Instructions

    Maintenance Torque Instructions Air Filter Service NOTE: Pump fluid cover and manifold fasteners have a Repair Kits are available. Refer to page 16. thread-locking adhesive patch applied to the threads. If this patch is excessively worn, the fasteners may loosen Every day, drain contaminants from the bowl before during operation.
  • Page 16 Maintenance Repair Kit 239383 Model 113765 For Part No. 113765 Air Filter/Regulator Air Filter/Regulator Shown Kit parts are marked with an asterisk (201*). Individual parts are not available separately. Lubricate with no. 2 lithium-based grease. Ref. Description Qty. 201* DIAPHRAGM 202* VALVE ASSEMBLY 203* O–RING, valve 204* SPRING, valve...
  • Page 17 Maintenance 3A1318B...
  • Page 18: Parts

    Parts Parts Part 24H316, Series A, stainless steel circulation package with agitator 159 (Ref) 105 (Ref) 155 (Ref) 102 (Ref) 109 (Ref) ti7802c 3A1318B...
  • Page 19 Parts Part 24H316, Series A, stainless steel circulation package with agitator Ref. Part Description Qty. 24H314 MODULE, pump; stainless steel; includes items shown on page 20, except Ref. 54 112268 SWIVEL; stainless steel; 3/4 npt (m x f) 240209 AGITATOR, back–geared;...
  • Page 20 Parts Part 24H313, Series A, stainless steel circulation pump module (with fluid filter) Part 24H314, Series A, stainless steel circulation pump module 18 (Ref) 10 (Ref) ti7800d 3A1318B...
  • Page 21 Parts Part 24H313, Series A, stainless steel circulation pump module (with fluid filter) Part 24H314, Series A, stainless steel circulation pump module Module Ref. Description 24H313 24H314 PUMP, Husky 1050; 1:1 ratio; sst; see 651000 651000 manual 312877 BUSHING; sst; 1 in. x 1/2 npt 513299 NIPPLE;...
  • Page 22 Parts LOCKWASHER, spring; 3/8 103975 103975 NUT, hex; 3/8-16 112913 112913 SCREW, cap, socket hd; 1/4-20; 101550 101550 1/2 in. (13 mm) long BRACKET, pump 192584 192584 BRACKET, back pressure regulator 192586 192586 PLATE, mounting, bracket 192589 192589 SCREW, cap, hex hd; sst; 1/4-20 x 3/8 in. (10 104119 104119 mm) long...
  • Page 23: Performance Charts

    Performance Charts Performance Charts Test Conditions: Pump tested in water with inlet submerged. Fluid Pressure (0.7, 7.0) (0.55, 5.5) Operating Air Pressure (0.41, 4.1) 100 psi (0.7 MPa, 7.0 bar) (0.28, 2.8) 70 psi (0.48 MPa, 4.8 bar) (0.14, 1.4) 40 psi (0.28 MPa, 2.8 bar) (19) (38)
  • Page 24: Dimensions

    4 to 5 ft (1.2 to 1.5 m) above the floor. The suction hose is 6 ft (1.8 m) long. Do not stretch the hose tight; let it hang as shown, to assist fluid flow into the pump. 24H316 Circulation Package with Agitator Shown ti7803c 3A1318B...
  • Page 25: Mounting Hole Layout

    Mounting Hole Layout Mounting Hole Layout Check that the bracket is level before bolting it to the wall. Mount the pump module so the top of the bracket is 4 to 5 ft (1.2 to 1.5 m) above the floor. Wall Bracket 1.0 in.
  • Page 26 Mounting Hole Layout 3A1318B...
  • Page 27: Technical Data

    Technical Data Technical Data Category Data Maximum fluid working pressure ... . 100 psi (0.7 MPa, 7 bar) Maximum air input pressure ....100 psi (0.7 MPa, 7 bar) Ratio .
  • Page 28: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
