9. With the help of a second person, grip the sides
of the console assembly and hold it near the
Right Upright (83) and the Left Upright (not
shown). Do not lift the console assembly by
the Right Handrail (79) or the Left Handrail
(not shown).

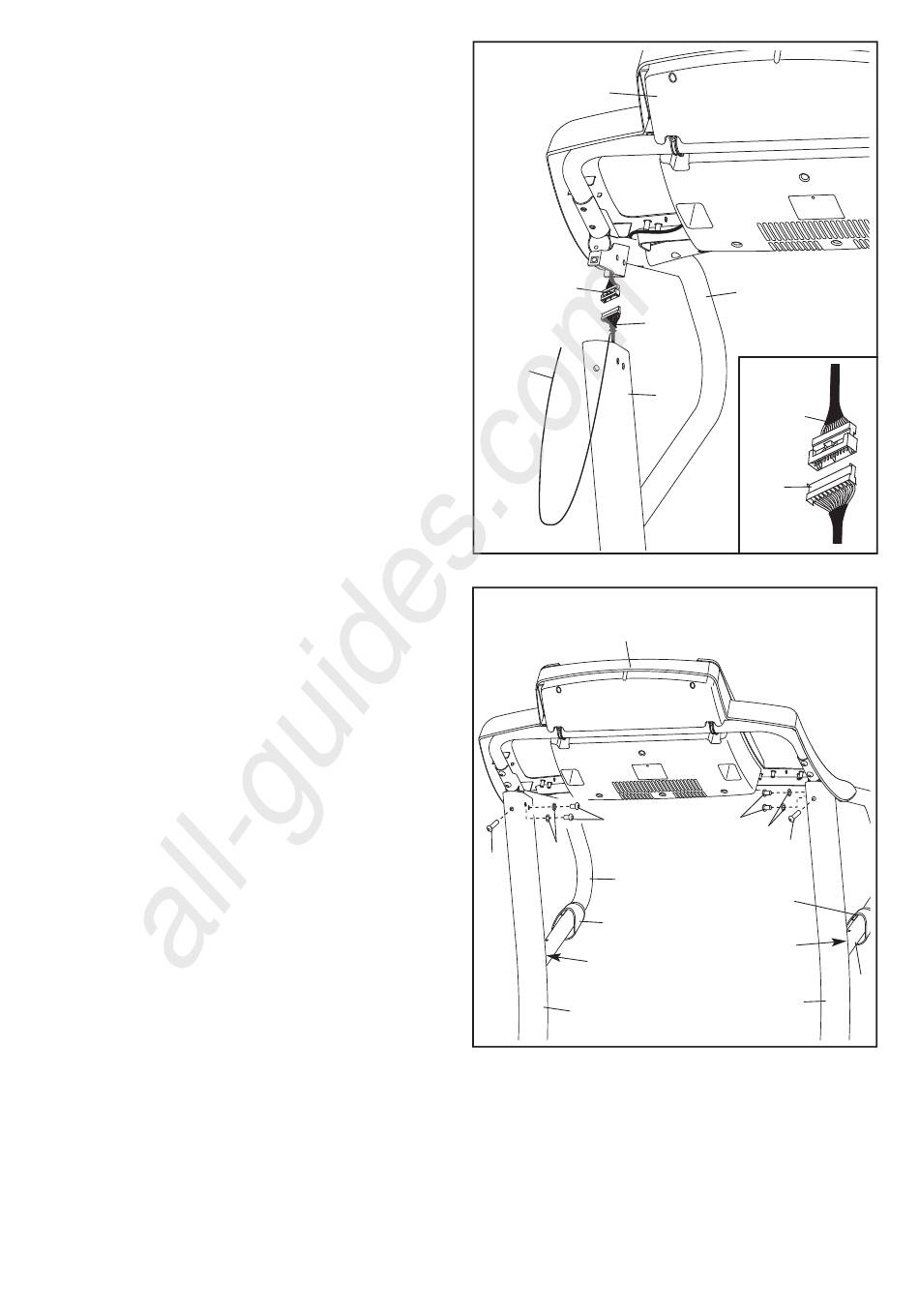

Connect the Upright Wire (85) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN YOU TURN ON THE
POWER. Then, remove the wire tie from the
Upright Wire.
10. Slide a Handrail Cover (77) onto the lower end
of each Handrail (78, 79).
Set the console assembly on the Left and Right
Uprights (82, 83). At the same time, slide the
lower ends of the Handrails (78, 79) over the
brackets on the Uprights. Be careful not to
pinch any wires. Insert the excess wire into the
Right Upright.
Start four 5/16" x 3/4" Screws (5) with four 5/16"
Star Washers (9) into the Uprights (82, 83).
Then, start two 5/16" x 1 1/2" Screws (4) into the
Uprights. Do not tighten the Screws yet.
