Graco A Series Instructions-Parts List Manual

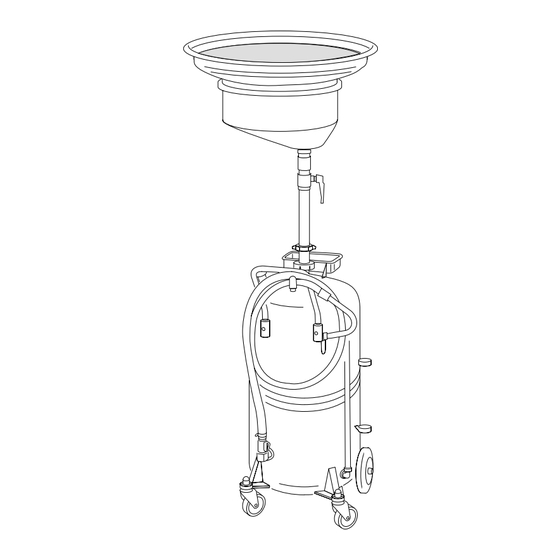

Pressurized oil drain 24-gallon 90-liter
Hide thumbs Also See for A Series:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
24-Gallon (90-Liter)
t
Oil Ace
Pressurized Oil Drain
Model 115599, Series A

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
. . . . . . . . . . . . . . . . . . . . . . . .
ECOPYRIGHT 1999, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.t
2
4
6
7
8
309042
Rev. A
9426A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Graco A Series

Summary of Contents for Graco A Series

  • Page 1 ......9426A GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 ECOPYRIGHT 1999, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
  • Page 2 D This equipment is for professional use only. D Read all instruction manuals before you operate this equipment. D Use the equipment only for its intended purpose. If you are not sure, contact your Graco distributor. D Do not alter or modify this equipment.
  • Page 3 WARNING – Do not drain caustic or flammable products. – Do not expose the tank to any source of heat. – Do not do any welding on the tank. – While draining high temperature oils, keep hands and face protected. United States Government safety standards have been adopted under the Occupational Safety and Health Act.
  • Page 4 Assembly and Operation 8 psi (0.5 bar, 50 kPa) 309042...
  • Page 5 Assembly and Operation ASSEMBLY 1. Fig. 6. To raise and lower funnel, loosen ring nut M and hand tighten after reaching desired height. 1. Fig. 1. Insert handle into holding fixtures provided on tank and secure it with screws. Place tool tray A on bracket provided.
  • Page 6 Parts List and Drawing Oil Ace Pressurized Oil Drain, Model 115599, Series A Note: part numbers in illustration locate repair kits listed on page 7. 242039 242032 (242033) 5 (242033) 7 (242034) 242037 242041 242035 242038 242042 242036 242031 242030 9426A Ref.
  • Page 7 Repair Kits Oil Ace Pressurized Oil Drain Repair Kits Part No. Description Part No. Description 242030 REPAIR KIT, swivel wheel 242037 REPAIR KIT, screw 242031 REPAIR KIT, fixed wheel 242038 REPAIR KIT, gauge tube 242032 REPAIR KIT, bowl 242039 REPAIR KIT, funnel 242033 REPAIR KIT, upper valve 242040...
  • Page 8 Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
