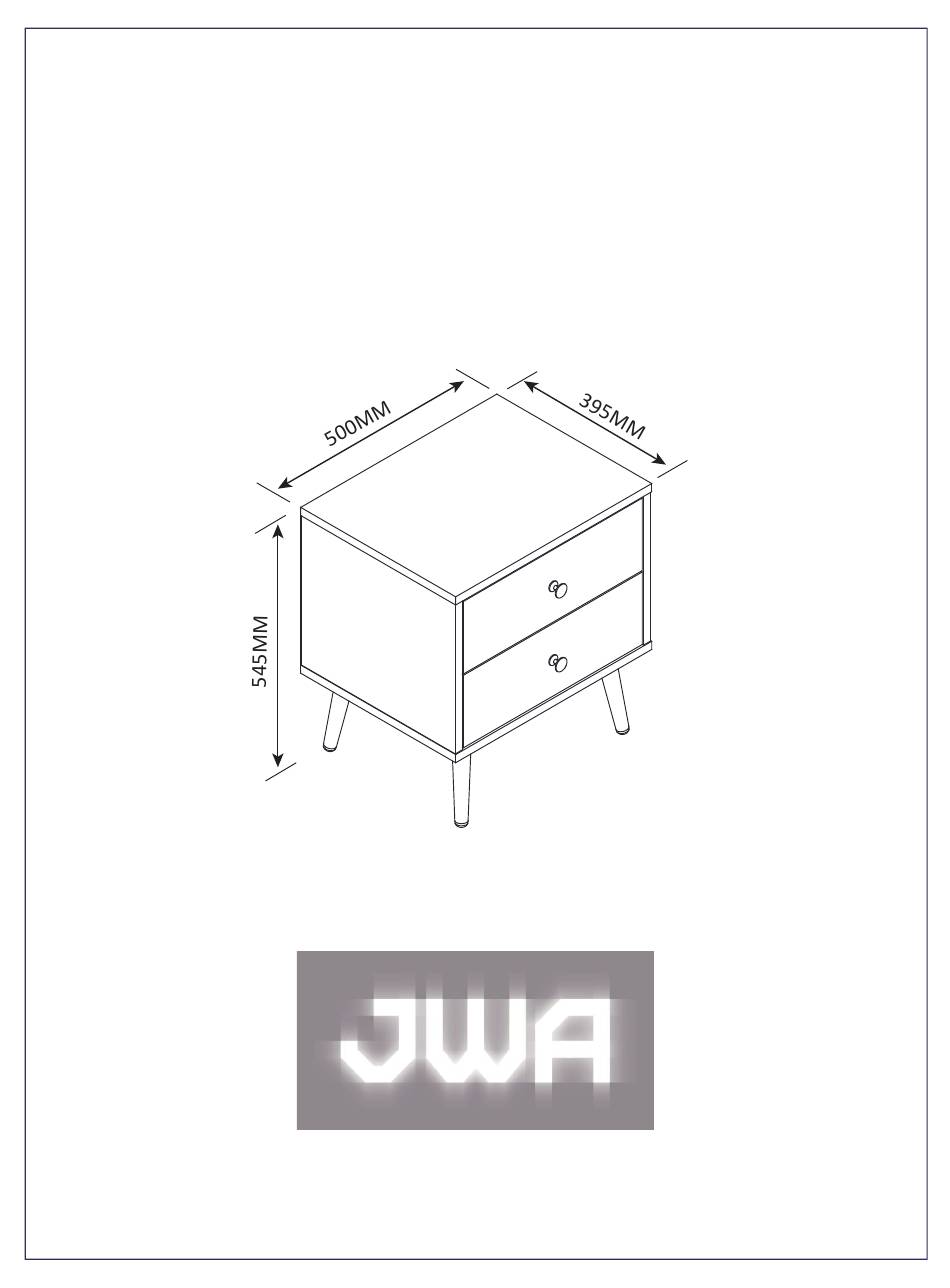

- Page 1 ASSEMBLY INSTRUCTION GORDON BEDSIDE ITEM CODE 74175 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when li�ing. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST M6X39mm M15X12mm M8X30mm M5X40mm 8pcs 8pcs 16pcs 4pcs M5X40mm M4X15mm 24pcs 2pcs 4pcs 20pcs M3X16mm M5X50mm 2pcs 10pcs 4pcs TOP PANEL DRAWER SIDE SIDE PANEL DRAWER SIDE SIDE PANEL DRAWER BASE DRAWER FRONT BOTTOM PANEL BACK PANEL FOOTS DRAWER BACK... - Page 4 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it.
- Page 5 STEP 1 STEP 2...
- Page 6 STEP 3 STEP 4...
- Page 7 STEP 5 STEP 6...
- Page 8 STEP 7 STEP 8...
- Page 9 STEP 9 STEP 10...
- Page 10 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 11 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
