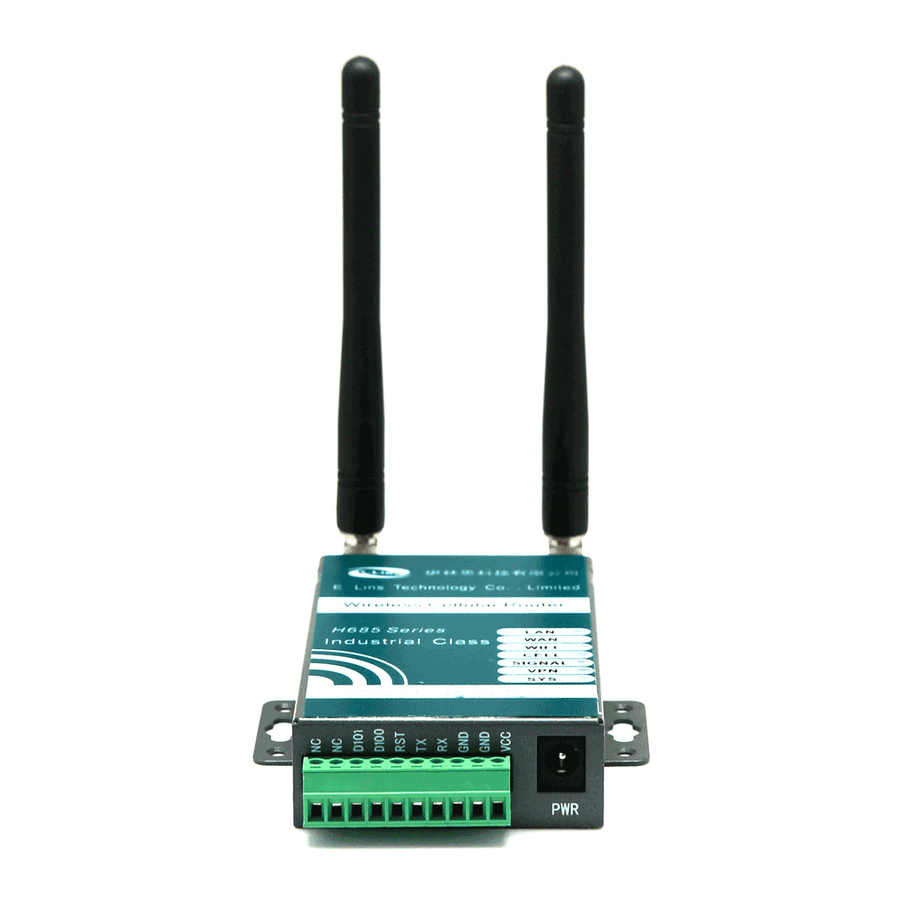

E-Lins H685 Series User Manual

Industrial grade 2g/ 3g/ 4g/ 5g cellular router
Hide thumbs Also See for H685 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
H685 User Manual
Industrial Grade 2G 3G 4G 5G Cellular Router
User Manual
H685 Series
E-Lins Technology Co., Limited
PHONE: +86-755-29230581
Email: sales@e-lins.com
WEB: http://www.e-lins.com
ADDRESS: Rm.33, Unit B, Floor 12, U chuanggu, Xinniu Rd,
Minzhi, Longhua, Shenzhen, 518000, China
E-Lins Technology Co.,Limited
Tel: +86-755-29230581 E-mail: sales@e-lins.com
www.e-lins.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H685 Series and is the answer not in the manual?

Questions and answers

Related Manuals for E-Lins H685 Series

Summary of Contents for E-Lins H685 Series

  • Page 1 H685 User Manual Industrial Grade 2G 3G 4G 5G Cellular Router User Manual H685 Series E-Lins Technology Co., Limited PHONE: +86-755-29230581 Email: sales@e-lins.com WEB: http://www.e-lins.com ADDRESS: Rm.33, Unit B, Floor 12, U chuanggu, Xinniu Rd, Minzhi, Longhua, Shenzhen, 518000, China E-Lins Technology Co.,Limited...

  • Page 2: Table Of Contents

    3.5.4 DTU · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 44 E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 3 3.6.16 Guest LAN(Guest WiFi) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 113 E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 4: Preparation Job Before Configuration

    1 Preparation job before configuration 1.1 Learn your router version and feature 1) H685 series contains different version and option feature. Please learn it before using it. H685 series defines the model as follows, Notes: please be informed the following features are option. Please indicate with E-Lins Technology Co.,Limited...

  • Page 5: Prepare Sim Card And Working Condition

    5. Make sure the signal is good enough where you test or install the router. Weak signal will make the router no work. If you find your signal strength is not good, please contact us for high gain antenna. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 6: Highly Recommendation For The Configuration

    Please refer to chapter 3.5.1 to configure. Chapter 2 2 Hardware Installation This chapter mainly describes the appearance, model and function of H685 series and how to install and set the configurations. 1. Overall Dimension 2. Accessories Description 3. Installment E-Lins Technology Co.,Limited...

  • Page 7: Overall Dimension

    H685 User Manual 2.1 Overall Dimension 2.2 The Ports Pictures: E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 8: Installment

    WiFi / WLAN / WiFi Aux for WiFi antenna for GPS antenna 2.3 Installment H685 series should be installed and configured properly before putting in service. The installation and configuration should be done or supervise by qualified engineer. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com...

  • Page 9: Sim/Uim Card Installed

    H685 User Manual Notes: Do not install H685 series or connect/disconnect its cable when it is power on. 2.4 SIM/UIM card installed If your router has SIM/UIM card protector, please remove it, insert the SIM Card correctly, and fix the protector.
  • Page 10 Wrong connections may destroy the equipment. 2. Power terminals: Pin 1 and Pin 2; 3. Here: Pin 2 is “GND”, PIN 1 is power input “Vin”(DC5~40V, or DV5~60V). E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 11: Grounding

    Pin 2 Port 5 (TX) Pin 3 If not through, can switch Port4 and Port5. 2.6 Grounding To ensure a safe, stable and reliable H685 series operation, Router cabinet should be grounded properly. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 12: Power Supply

    Please connect the antenna after you successfully connect to the cable. And then insert the valid SIM/UIM card and provide the power to the H685 series via the cable. After provide the power to H685, if the SYS LED starts to blink in a few seconds, that means the system start-up is normal;...
  • Page 13 Data transmission in Ethernet Ethernet connection abnormal Ethernet is connected IPSec VPN tunnel set-up IPsec VPN tunnel set-up failure or inactivated CELL Access to the Internet/Private Network WiFi Enable Disable E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 14: Software Configuration

    3. How to config web 3.1 Overview H685 series routers with built-in WEB interface configuration, management and debugging tools, user should configuration the parameters first; and it could be altered the parameters flexibility and software upgrades and simple testing. User can set up and manage the parameters of the router on its interface, detail step are bellow: E-Lins Technology Co.,Limited...

  • Page 15: How To Log Into The Router

    Set the PC IP as 192.168.1.xxx (xxx = 2~254), subnet mask: 255.255.255.0, default gateway: 192.168.1.1, primary DNS: 192.168.1.1. Way 2) DHCP Choose “Obtain an IP address automatically” “Obtain DNS server address automatically”. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 16 H685 User Manual After IP setting, check it by ping. Click Windows start menu, run, execute “cmd” command. Input “ping 192.168.1.1” in the DOS window. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 17  Type User Name “admin” and Password “admin” in the Login page, and then press the “Login” button.  If you type into the correct User Name and Password, you will get the access into the Router’s status overview page. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 18: Router Status

    H685 User Manual 3.3 Router status 3.3.1 Status overview Click “Status” in the navigation bar, and then click “Overview”. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 19: Network Status

    H685 User Manual 3.3.2 Network status Network status pages show detail information of cell mobile interface, WAN and LAN. Cell mobile interface page: E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 20 H685 User Manual WAN status page: E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 21 H685 User Manual LAN status page: E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 22: Firewall Status

    Firewall status page shows IPv4 and IPv6 rules and counters. The final user can reset counters and restart firewall functionality here. 3.3.4 Routes Routes page shows rules which are currently active on this router. And ARP table is displayed as well. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 23: System Log

    H685 User Manual 3.3.5 System log This page shows system log from system boot up. System log is not saved when router restarts. It can be exported by click button “Export syslog”. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 24: Kernel Log

    H685 User Manual 3.3.6 Kernel log This page shows Kernel log from system boot up. This log is not saved when router restarts. It can be exported by click button “Export syslog”. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 25: Reboot Log

    H685 User Manual 3.3.7 Reboot Log Reboot Log shows router and cell boot up event. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 26: Realtime Graphs

    H685 User Manual 3.3.8 Realtime graphs Realtime Graphs page shows real time system load，interfaces traffic, etc.. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 27: Vpn

    H685 User Manual 3.3.8 VPN show IPSec status, IPSec log, OpenVPN status, PPTP status and L2TP status. IPSec Status page IPSec Log page E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 28 H685 User Manual OpenVPN status page E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 29 H685 User Manual PPTP Client Status page L2TP Client Status page E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 30: System Configuration

    When login in router at the first time, setup wizard pages show. Note: pressing button “Save & Next” will save configuration and jump to the next page. All configurations will be applied after click button “Finish” at the final step (Step-WiFi). E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 31: System

    It is the router’s name, the default name is Cell_Router.  Time zone Select a suitable time zone. The default value is UTC  Turn off LEDs Turn off router all LEDs except ethernet port indicate LEDs. Logging settings E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 32 It is log level for process Crond.  Record Cell Status Print cell status in system log periodically.  Language The default language is “Auto”. The final user can choose English or Chinese. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 33: Password

    Current username. The username of web account is using. Current password. The password of web account is using. New username: change web account username to the new one. Password: new password. Confirmation: same as Password. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 34 H685 User Manual Change the username and password for ssh access. Enabled guest: guest user is disabled by default for security. Change the password for guest user. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 35: Ntp

    NTP running counts after router connects to internet,0 or empty means infinite.  NTP sync interval(min) The interval time between NTP synchronization.  NTP server candidates It is NTP server list, multiple NTP server is acceped. The final user can click the button E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 36: Backup/Restore

    Backup Config: store current configurations in a particular partition, if “Restore after factory reset” is enabled, after reset router to factory default, router will read configurations from this particular partition and apply it. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 37: Upgrade

    Router will do a basic checking for the uploaded file. If it is not compatible file, an error will be generated like this: If the firmware file is OK, it will go to the verify page, then click button “Proceed”, and system will restart soon. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 38: Reset

    Reset all configurations to factory default, after click button “Reset”, there is pop dialog to ask it’s really to reset, click button “cancel” will do nothing, click button “OK” will reset all configuration to default and restart system. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 39: Reboot

    3.5.1 ICMP check For router working with best stability, we highly suggest activate and use this feature. With this feature, the Router will automatically detect its working status and fix the problem. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 40  Action when failed: there are “Restart “Restart “Restart module” and router”. module” will fix “Restart the problem from radio module, and router” will fix the problem from the whole system including radio module. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 41: Vrrp

     Priority: Router with highest priority in the same VRRP cluster will act as master. The legal number is from 1 to 255.  Advertisement interval: VRRP send packet to a set of VRRP instances to advertise the device in the MASTER state. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 42: Failover (Link Backup)

     Track Weight: priority will be subtracted from the initial priority in case of ping IP/Host failure.  Status: show VRRP status(MASTER/BACKUP). 3.5.3 Failover (link backup) 3.5.3.1 Failover basic settings  Enable: Enable failover feature E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 43: Failover Advanced Settings

    3.5.3.2 Failover Advanced settings  Cell Standby: choose Cell status(connect, disconnect, or radio off) when cell acts as backup interface.  SMS Alarm: if need to send SMS alarm when working interface switchover. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 44: Dtu

     Terminate character: split serial port data into different packages with terminate character. It can be a string, or hexadecimal which start as 0x,such as 0x0a0d.  Debug: Debug level for log output. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 45  Protocol: TCP and UDP are supported  Service mode: Client and Server are supported.  Enable heartbeat: The heartbeat is used for connection keep alive.  Heartbeat interval: The time between two heartbeat packet. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 46 The maximum number of DTU center is 32. When select Service mode as Server. There are 2 options.  Server port: the port for client to connect.  Max connections: the max amount of clients can connect. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 47: Snmp

     Trap receiver IP: the IP list of SNMP trap receiver.  Router reboot trap: send trap when router boots up.  Module reboot trap: send trap when cell module boots up.  Trap type: SNMPv1 or SNMPv2 trap. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 48  Authentication password: SNMPv3 authentication password, at least 8 characters is required.  Encryption password: SNMPv3 encryption password, at least 8 characters is required. After all items is setup, click button “Save & Apply” to enable SNMP functionality. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 49: Gps

    If the GPS processor device is a remote server, please choose “Serial”. GPS to TCP/UDP Settings   Server IP: fill in the correct destination server IP or domain name  Server port: fill in the correct destination server port E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 50: Sms

     serial baudrate: 9600/19200/38400/57600/115200bps for choice  serial parity: none/odd/even for choice  serial databits: 7/8 for choice  serial stopbits: 1/2 for choice  serial flow control: none/hardware/software for choice 3.5.7 SMS SMS Command  E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 51  Enable: check it to enable SMS command feature.  SMS ACK: If checked, the router will send command feedback to sender’s phone number. If unchecked, the router will not send command feedback to sender’s phone number. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 52  Force switch Command: swap failover primary and secondary config.  SSH on Command: allow SSH access from internet.  SSH off Command: deny SSH access from internet.  OpenVPN on Command: Open OpenVPN instance. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 53  Failed Times Threshold: if failed counter is more than this threshold, a signal alarm will be generated.  Success Times Threshold: if an signal alarm is generated, and the success counter is bigger or equal to Success Times Threshold, clear signal alarm.  Phone Number E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 54  SMS command: enable SMS command feature on this phone number.  SMS alarm: this phone number can receive SMS Alarm.  DIO change: DIO change alarm can be sent to this phone number.  SMS E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 55 23456789 3. Use URL to read all SMS messages, for example: http://192.168.1.1/cgi-bin/sms_list?username=user2&password=abc123 4. It is also support post method to submit SMS.  DIO Mail Send email to receiver when DIO change. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 56 TLS (‘off’)..  Check server certificate: Activate server certificate verification using a list of truted Certification Authorities (CAs).  TLS trust file: Activate server certificate verification using trusted Certification Authorities (CAs). E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 57 H685 User Manual The default email title is “[DIOx] changed”, and content is SN:8600000000, [DIOx] is changed from [value0] to value[1]. Configure email title and content, replace string in [ ]. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 58 H685 User Manual Configure receiver address.  DIO Default  DIO trap: send SNMP trap when DIO changed from 1 to 0, or 0 to 1. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 59  DIO_3 Function: DIO function can be set to None, GPS and Wi-Fi. DIO value is set to high to turn on functionality, be set to low to turn off it. If the value is None, it will do nothing.  DIO sms E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 60 When DIO value is changed, send SMS text accordingly. It must enable DIO change on phone number. If the user-defined text is empty, it will send system default SMS to phone number. The default format is SN:[86000000000], [DIOx] is changed from [value1] to [value0]. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 61: Vpn

    This page is a list of configured IPSec instance and their state. Click button “Edit” to modify it, or click button “Delete” to delete an instance. The default setting is Policy-based IPSec, if Enable Route-based IPSec is ticked, after save & apply, it will switch to Route-based IPSec. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 62  Authentication method: PSK Client, PSK Server, RSA X.509 Client and RSA X.509 Server. Client is the device which starts the IPSEC connection.  Remote VPN endpoint: domain name or IP address of the remote endpoint. It can be E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 63  Local source ip: The internal source IP of local device to use in a tunnel, also known as virtual IP  Remote source ip: The internal source IP of remote device to use in a tunnel, also known as virtual IP E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 64 All the configuration in Phase 1 Proposal and Phase 2 Proposal must match with the remote endpoint to establish IPSEC connection. When “Authentication method” is XAUTH PSK server or XAUTH RSA server, it requires to configure user list for authenticating. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 65: Pptp

    This page is a list of configured PPTP instance and their state. Click button “Edit” to modify it, or click button “Delete” to delete an instance.  PPTP NAT enable enable PPTP interface NAT.  PPTP client configuration E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 66  Refuse MS-CHAP: don’t use MS-CHAP for authentication.  MPPE Encryption: Microsoft Point-to-Point Encryption.  Debug: add verbose PPTP log in system log.  Restart module when PPTP connects failed: in some network PPTP cannot connect until restart module. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 67: L2Tp

    3.5.8.3 L2TP This page is a list of configured L2TP instance and their state. The final user can click button “Edit” to modify it, or click button “Delete” to delete an instance. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 68  Server: domain name or IP address of L2TP server.  Username: server authentication user name.  Password: server authentication password.  Remote LAN subnet: the remote LAN subnet can be accessed via L2TP tunnel, such E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 69  L2TP Server configuration  Local IP: indicate server’s IP address.  Remote IP range begin: the remote IP address leases start  Remote IP range end: the remote IP address lease end. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 70: Openvpn

    For OpenVPN detail configuration page, you can put mouse on the title on item to get more help information. “Additional If the item you needed is not show in the main page, please check the Field” dropdown list at bottom of page. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 71: Gre Tunnel

    H685 User Manual 3.5.8.5 GRE tunnel E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 72 , if no GRE keepalive message received for peer device, it will set tunnel to up. If value is send and receive, it will send keepalive message to remote peer, and also receive keepalive message from peer. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 73: Ddns

    IP address.  Enabled: enable this instance.  IP address version: IPv4 and IPv6 supported  DDNS Service provider: select a suitable provider.  Hostname/Domain: the Domain name that you can access router. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 74  Force interval: the minimum check interval is 1 minute=60seconds.  Error Retry Counter: On Error the script will stop execution after given number of retries. The default setting of '0' will retry infinite. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 75 H685 User Manual Read the log file of DDNS. Notes: If use DDNS server no-ip.com, please check the " Use HTTP Secure" and put "8.8.8.8" for the DNS-Server referring to following picture. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 76 H685 User Manual E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 77: Connect Radio Module

    Connect Radio Module feature is used for exchanging data between Radio module and serial. Notes: “GPS sent to This feature is conflict with DTU and serial”. Please make sure the other two features are disabled before enable Connect Radio Module. Otherwise this error will occur. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 78: Network Configuration

     serial parity: support none/odd/even  serial databits: support 7 bits and 8 bits  serial stopbit: support 1 bits and 2 bits  Serial Flow Control: support none/hardware/software 3.6 Network Configuration E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 79: Operation Mode

    Wired-WAN port acts as LAN ", the H685 does not have WAN RJ45 port. 2) Please do not use any features for WAN RJ45 if check the " Wired-WAN port acts as " E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 80: Mobile Configuration

    Cell Modem Type was marked on the back of the router. For example, it shows the following picture. H685 is the router series name, H685t-W-RS485-G-60V-DIO is the part number name. And the ME909s-120 Cell Modem is the Cell Modem name. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 81 PIN number: If necessary, fill in the related parameters. Most of sim card has no PIN  code, and then keep it as blank; Dialing number: Fill in the related parameters. Get this parameter from the Sim Card  Provider or Carrier; E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 82 IPv4 netmask: Leave blank by default, you can choose a different netmask or custom netmask Default route: Create a default route through the mobile interface, that is, the default route after the module obtains an IP address and can go online. Selected by default. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 83: Cell Mobile Data Limitation

     Used(MB): the data has been consumed during this period.  Reset: press this button to clear all used .  Terminate 3G/4G connection until restart time: if the max data exceed, set cell interface to down. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 84: Lan Settings

     IPv6 assignment length: Assign a part of given length of every public IPv6-prefix to LAN interface  IPv6 assignment hint: Assign prefix parts using this hexadecimal subprefix ID for LAN interface. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 85: Advanced Settings

    Leave blank by default, you can choose a different netmask or custom netmask  Override MAC address: override LAN MAC address.  Override MTU: Maximum Transmission Unit.  Use gateway metric: the LAN subnet’s metric to gateway. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 86: Dhcp Server

     Leasetime: Expiry time of leased addresses, minimum is 2 minutes (2m). 12H means 12 hours. Example: With the parameters in the picture above, the Start is 100, and the Limit is 150. This means the router assigns IP range xxx.xxx.xxx.100~xxx.xxx.xxx.250 to the connected E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 87  IPv4-Netmask: Override the netmask sent to clients. Normally it is calculated from the subnet that is served.  DHCP-Options: Define additional DHCP options, for example '6,192.168.2.1,192.168.2.2' which advertises different DNS servers to clients. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 88: Wired-Wan

     Always announce default router: Announce as default router even if no public prefix is available. 3.6.5 wired-WAN  Protocol: the default protocol is DHCP client. If it should be changed to other protocol, such as “Switch PPPoE, select protocol PPPoE, then click button protocol”. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 89 After click button protocol”, the below is shown: Note: for different protocol, the Advanced Settings is different, please put mouse on title to get help information, the recommend web browser is Google Chrome. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 90: Wifi Settings

     Disable: set a wireless network to down.  Edit: modify detail information of wireless network.  Remove: delete a wireless network.  Associated Stations: it is a list of connected wireless stations. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 91: Wifi General Configuration

    802.11n.  Channel: channel 1-11 supported.  Width: 20MHz and 40MHz.  Transmit Power: from 0dBm to 20dBm supported. 3.6.6.2 WiFi Advanced Configuration  Country Code: Use ISO/IEC 3166 alpha2 country codes. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 92: Wifi Interface Configuration

     Network: Choose the network(s) you want to attach to this wireless interface or fill out the create field to define a new network.  Hide Extended Service Set Identifier: hide SSID means this WiFi cannot be scanned by others.  WMM Mode: E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 93 Allow list: only the MAC address in the list is allowed to forward. Deny list: all packet is allowed to forward except MAC address in the list.  MAC-List: click button to delete MAC address from list, click button to add a new MAC E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 94: Wifi Ap Client

     Step 4) Click Submit if everything is configured. The below is Wi-Fi configuration page. Don’t change Operating frequency, make sure the ESSID and BSSID is from the Wi-Fi you want to join. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 95 H685 User Manual  Step 5) Click button “Save & Apply” to start AP client. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 96: Interfaces Overview

    H685 User Manual 3.6.7 Interfaces Overview Interfaces overview shows all interfaces status, including uptime, MAC-address, RX, TX and IP address. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 97: Firewall

     Enable SIP ALG: SIP ALG is enabled by default, if router connect SIP device, it may need to disable it.  Restart: button for restart firewall. 3.6.8.2 Port Forwards This page includes port forwards list and add new port forwards rule functionality. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 98: Traffic Rules

    Traffic rules define policies for packets traveling between different zones, for example to reject traffic between certain hosts or to open WAN ports on the router. The traffic rules overview page content the follow functionalities. Traffic rules list: E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 99 H685 User Manual Open ports on router and create new forward rules: Source NAT list and create source NAT rule: E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 100 H685 User Manual Traffic rule configuration page: This page allows you to change advanced properties of the traffic rule entry, such as matched source and destination hosts. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 101  Destination address: traffic rule check if the incoming packet’s destination IP address is matched.  Destination port: traffic rule check if the incoming packet’s TCP/UDP port is matched.  Action: if traffic is matched, system will handle traffic according to the Action(accept, drop, E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 102: Dmz

     IP Address: Please Enter the IP address of the computer which you want to set as DMZ host  Protocol: All protocols, TCP+UDP,TCP,UDP. Note: When DMZ host is settled, the computer is completely exposed to the external network; the firewall will not influence this host. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 103: Security

     HTTP access from WAN: allow or deny access router web management page from remote side.  Remote network: Any IP Address, Single IP address, Subnet.  IP address: fill a remote IP address that can access router web management page. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 104: Static Routes

    If the destination IP address is the one of a host, and then the Netmask must be  255.255.255.255. If the destination IP address is IP network segment, it must match with the Netmask. For  example, if the destination IP is 10.0.0.0, and the Netmask is 255.0.0.0. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 105: Switch

    3. “Tagged” means the Ethernet frame transmits from this port is with VLAN tag. 4. “Off” means this port does not belong to VLAN. For default setting, port 0 belongs to VLAN1, but not belong to VLAN 2. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 106: Dhcp And Dns

     Rebind protection: Discard upstream RFC1918 responses。  Allow localhost: Allow upstream responses in the 127.0.0.0/8 range, e.g. for RBL services。  Domain whitelist: List of domains to allow RFC1918 responses for. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 107  Max DHCP leases: Maximum allowed number of active DHCP leases  Max edns0 packet size: Maximum allowed size of EDNS.0 UDP packets.  Max concurrent queries: Maximum allowed number of concurrent DNS queries. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 108: Diagnostics

     For example if I want to ping www.google.com, type the target domain name or IP address, then click button “Ping”. Wait couple of seconds, the result will be shown below. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 109: Loopback Interface

    The first IP address can be used in IPSec. The secondary can be used as management. 3.6.14 Dynamic Routing Dynamic Routing is implemented by quagga-0.99.22.4. Dynamic Routing services can be enabled at here: E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 110  RIP: Routing Information Protocol. Telnet port number is 2602.  RIPng: it is an IPv6 reincarnation of the RIP protocol. Telnet port number is 2603.  BGP: Border Gateway Protocol. Telnet port number is 2605. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 111: Qos

    OSPF, we need to set OSPF to “Enable” firstly, then open putty in windows: Input the password of OSPF. Then press key”?” for help. 3.6.15 QoS QoS(Quality of Service) can prioritize network traffic selected by addresses, ports or services. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 112  Destination host: Packets matching this destination host(s) (single IP or in CIDR notation) belong to the bucket defined in target。  Protocol: Packets matching this protocol belong to the bucket defined in target. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 113: Guest Lan(Guest Wifi)

     Wi-Fi ssid: the ssid of guest Wi-Fi.  Wi-Fi device name: choose one Wi-Fi device to carry Guest Wi-Fi, the available device name is radio0 and radio1. Check Wi-FI overview page for the device name. for example: E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 114 H685 User Manual E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
