Black Box ServSwitch Installing And Operating Information

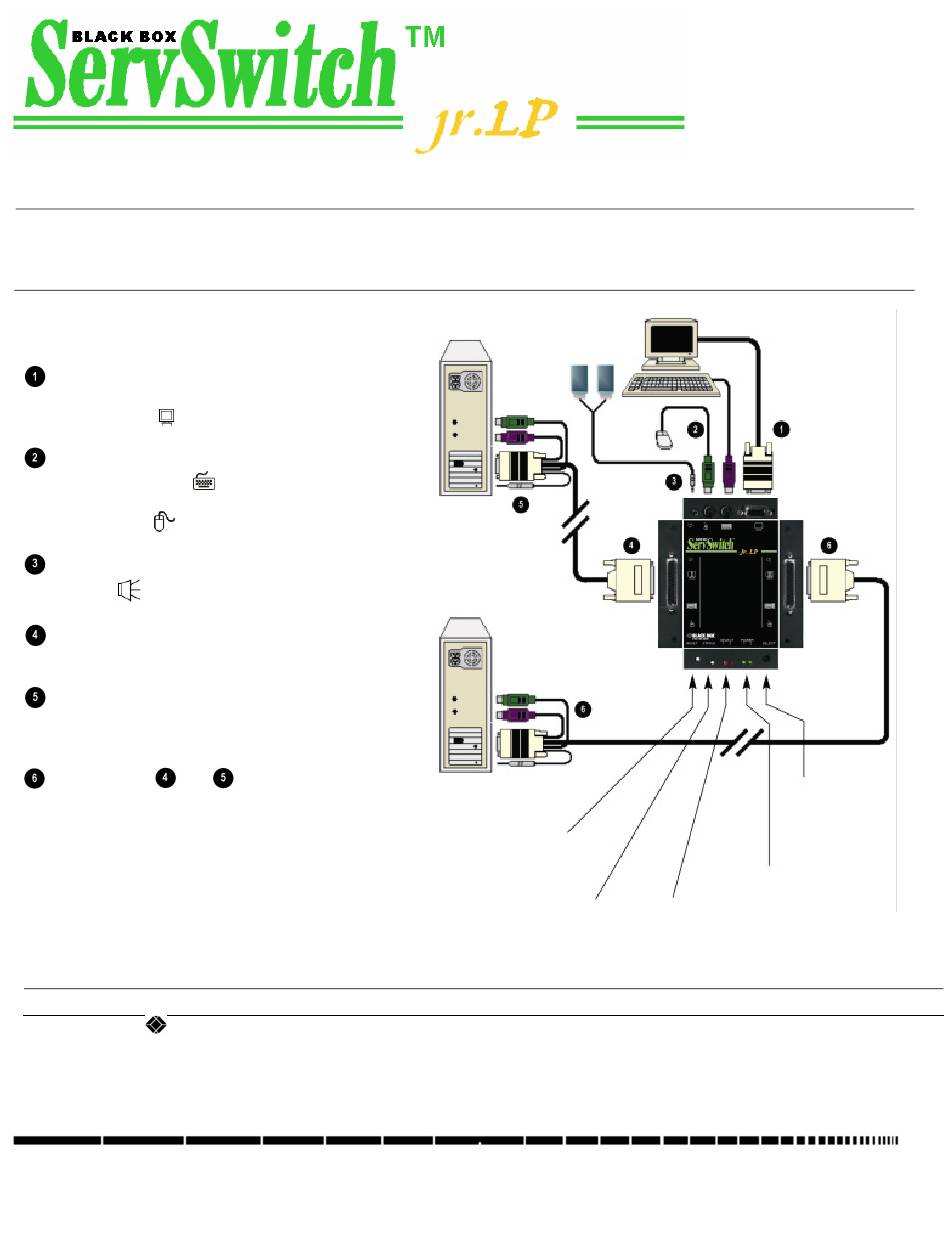

Installing and Operating the ServSwitch

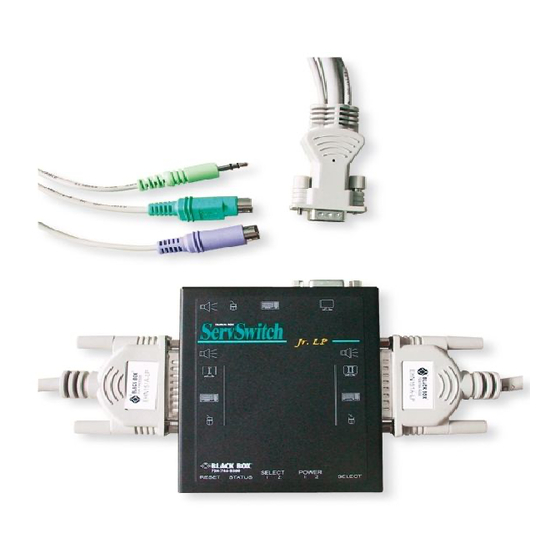

These directions are for a typical "direct plug-in" installation of a monitor, keyboard, and mouse to a PS/2
At the CPU end, the extension cables have 6-pin mini-DIN keyboard and mouse connectors.
If you have different types of equipment, or want to use different extension cabling, please call Black Box Tech support.
After making sure that your computers and
monitor are turned OFF:
Plug the video cable of your monitor
into the port on the rear panel of the
Jr. LP marked .
Plug your keyboard into the port in the
same area marked
Plug your mouse into the port in the same
area marked .
Plug your speakers in the same area
marked .
Attach the DB25 end of one of the PS/2 type
extension cables to the Jr. LP's CPU 1 port.
Run this extension cable to the Video-
output, keyboard, mouse, and speaker
ports on the computer.
Repeat steps and
computer, attaching the cable to the
Jr. LP's CPU 2 port.
Now turn your computer and monitor ON.
The Jr. LP will turn ON automatically.
See the back of this sheet for a list of the ServSwitch™ Jr. LP's keyboard commands.
BLACK BOX and the logo are registered trademarks, and ServSwitch Jr. LP are trademarks, of Black Box Corporation.
Any other trademarks mentioned in this document are acknowledged to be the property of the trademark owners.
© Copyright 2003. Black Box Corporation. All rights reserved.
CUSTOMER
SUPPORT
INFORMATION
.
for your other
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Free technical support 24 hrs a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com
RESET button: Press
this to reinitialize the
Jr. LP and the keyboard
and mouse
STATUS LED: Flickers
when the Jr. LP receives
data from the mouse or
keyboard
E-mail: info@blackbox.com
MAY 2003
SW621A-LP
™
Jr. LP
®
type CPU.
SELECT button:
Press this to
switch to the
other CPU
POWER LEDs:
Light to show that
SELECT LEDs:
the corresponding
Light to show
CPU is powered up
which CPU is
selected
