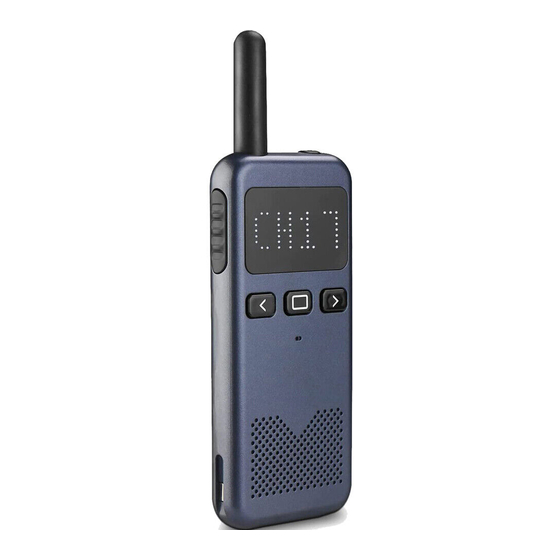

Retevis RB19P User Manual
  1. Manuals
  2. Brands
  3. Retevis Manuals
  4. Two-Way Radio
  5. RB19P
  6. User manual

Retevis RB19P User Manual

Hide thumbs Also See for RB19P:
Table of Contents

Advertisement

Quick Links

RB19P
Two Way Radio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB19P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Retevis RB19P

Summary of Contents for Retevis RB19P

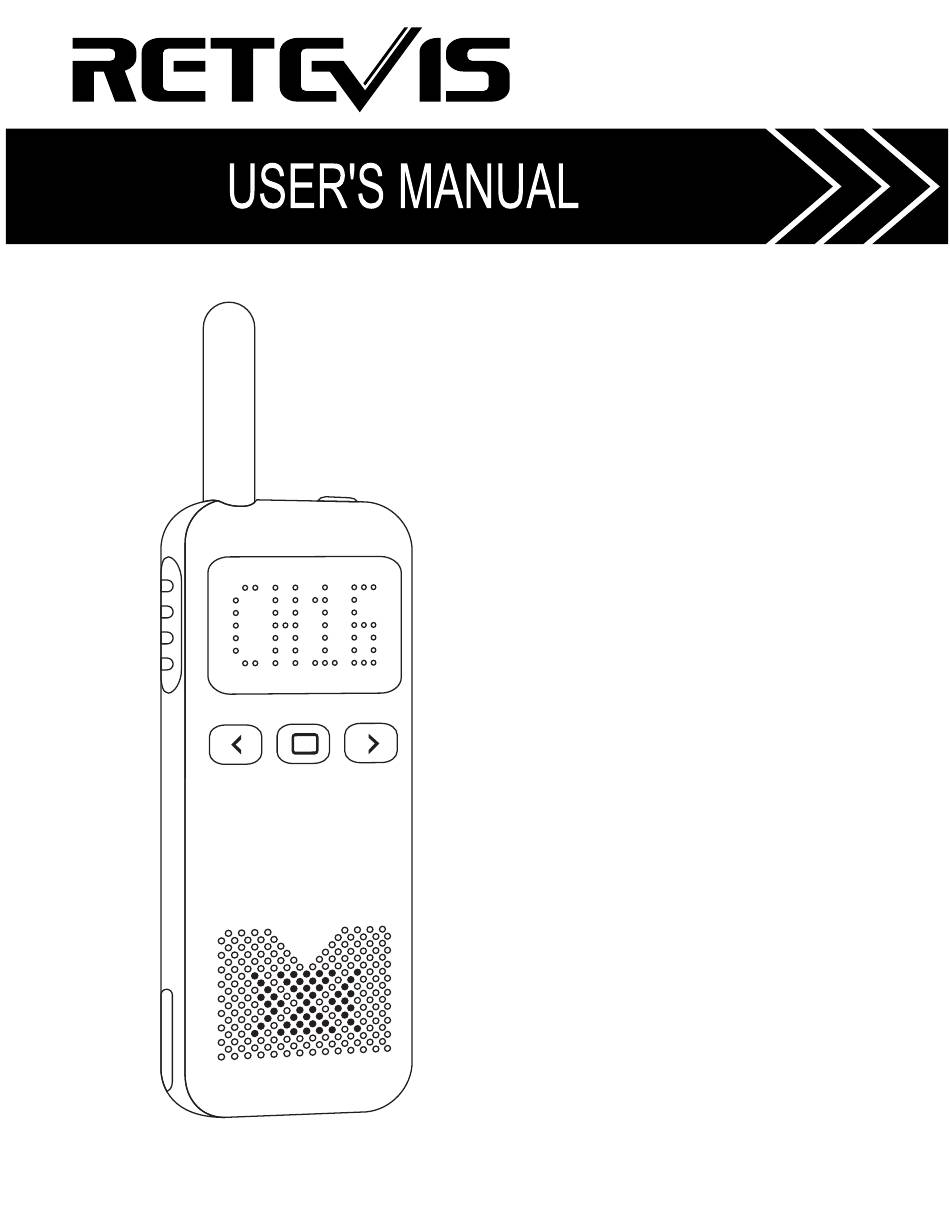

  • Page 1 RB19P Two Way Radio...
  • Page 2 • The repair job of this radio is in the charge of professionals & technical's, self-disassembly is prohibited. For downloading further resources: Brochures, Software/ Firmware, Manual etc, Pls contact your direct reseller first OR go to website retevis.com and check “support” in the each product link to download it.

  • Page 3: Standard Accessories

    Standard Accessories USB Cable Radio Body Be Familiar With The Machine Antenna Belt Clip Display Screen Power Key Earphone Function Keys Charging Port Microphone Speaker Desktop Charger Connector...

  • Page 4: Charging The Battery Pack

    Charging the Battery Pack 1.The battery is not charged in the factory,please charge the battery under the environmental temperature 5—40℃before using. 2.After purchasing or long-term storage(more than two months), charging the battery for the first time can not reach its saturation capacity,repeat charge/discharge for twice or three times to make battery capacity achieve the best state.

  • Page 5: Menu Operation

    receiving alarm volume MENU OPERATION 1.Short press keys to adjust the volume. 2.Short press key to switch to channel mode,then short press keys to adjust the channels. 3.PTT: press this button whenever you wish to talk with the user of the other radio.
  • Page 6 2.Short press key to switch to channel mode,then short press keys to adjust the channels. 3.Press the PTT button to exit. This function can be voice activated so the user doesn’t have to press the PTT key. When “VOX level” in the software is selected,short press twice to enter into the VOX mode,then short press key or key to turn on/off the VOX.

  • Page 7: Channel And Frequencies

    CTCSS/DCS The transceiver has 50 CTCSS and 208 DCS,also non-standard subaudio can be programmed! alarm When“Side Key 2” in the software is programmed to the alarm function,long press key for two seconds to enter into the alarm mode,the transceiver will start to alarm with the current channel; press the PTT button to exit.
  • Page 8 467.6875 467.6875 D065N 467.7125 467.7125 D116N 462.5500 462.5500 High 462.5750 462.5750 High D743I 462.6000 462.6000 High D332I 462.6250 462.6250 High 127.3 462.6500 462.6500 High D243I 462.6750 462.6750 High D606N 462.7000 462.7000 High D731I 462.7250 462.7250 High 136.5 467.5500 462.5500 High 136.5 467.5750 462.5750...

  • Page 9: Technical Parameters

    Technical Parameters SPECIFICATIONS Frequency Range GMRS Supply Power DC3.7V Memory Channel Antenna Configuration Internal Antenna Co/Differ-frequency Simplex Work Mode Communication Ground Method Cathode working temperature range -30°~+60° TRANSMITTER Output Power ≤3W Modulation Mode FM(F3E) ≤5KHz Max.Frequency Deviation Sparious Radiation ≤7.5μW Preemphasis Character Per Octave 6dB Emission Current...
  • Page 10 ATTENTION!
  • Page 17 Avoid Choking Hazard WARNING...
  • Page 18 WARNING...
  • Page 19 WARNING WARNING...
  • Page 20 WARNING WARNING...
  • Page 22 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web: www.retevis.com E-mail: kam@retevis.com Facebook: facebook.com/retevis MADE IN CHINA...
  • Page 23 说明书要求 尺寸：75*95mm 印刷： 黑白印刷 装订： 骑马钉 纸张材质： 双胶纸 本页无需印刷...
