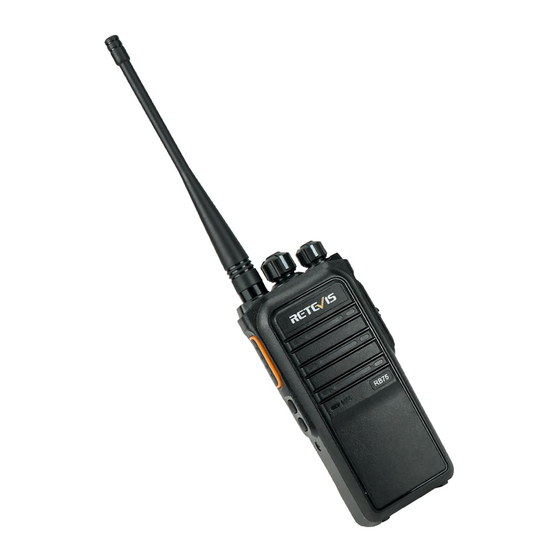

- Page 1 ( EN ) RB75 RB75 Two Way Radio...
-
Page 2: Table Of Contents
Safety notice In order to your safe and efficient use of this walkie-talkie, please read the following information. ◆ The maintenance work of the walkie-talkie can only be carried out by professional and technical personnel, please do not disassemble the walkie-talkie by yourself. ◆... -
Page 3: Quick Reference
Quick reference Channel knob Volume/power channel Antenna Indicator Battery light shackle PTT button Headphone Speaker jack Belt clip Side button 1 Side button 2 Microphone Brief instructions for use 1. Power on: Turn the [Power/Volume] knob clockwise to power on. 2. -
Page 4: Battery Information
1.1.Accessories Sling Manual USB Charger Battery Belt clip Walkie talkie 2. Battery information 2.1 Notes on charging The optional battery is not charged at the factory. Please charge the battery before using it for the first time. If the battery has not been used for a long time or the battery is exhausted, please charge the battery before use. -
Page 5: Accessories Installation
3 ccessory installation 3.1 Install/remove battery Install battery (1) Turn the volume switch to the off position. (2) Align the battery with the battery mount on the back of the walkie-talkie, and insert the battery. (3) Press the battery until the battery is pushed to the correct position and locked. Remove the battery (1) If you need to remove the battery, please turn off the walkie-talkie first. -
Page 6: Programmable Buttons
5.1 Programmable buttons In order to facilitate users to operate the walkie-talkie according to their own habits, this walkie talkie provides programmable keys (side keys) that can be programmed as function shortcut keys by the dealer. Remarks: Short press: Press and quickly release. Long press: press and hold for a certain time. -
Page 7: Common Failure Phenomena And Troubleshooting Methods
462.7000 467.7000 136.5 working 300mA 462.7250 467.7250 136.5 Audio response: +7~-12.5dB For further resources: Brochures, Software/Firmware, Manual and Declaration-of-Conformity, Pls contact your direct reseller OR go to web retevis.com, and check "support" in the each product link to download it... -
Page 8: Warning
Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Retevis two-way radio has a RF Exposure Product Label. - Page 9 •When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.
- Page 10 •The adapter shall be installed near the equipment and shall be easily accessible •This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate WARNING regulations.
-
Page 11: Warranty Card
1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: Contact the seller where you buy. - Page 12 Shenzhen Retevis Technology Co.,Ltd. Add: 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web: www.retevis.com E-mail: kam@retevis.com Facebook: facebook.com/retevis...
