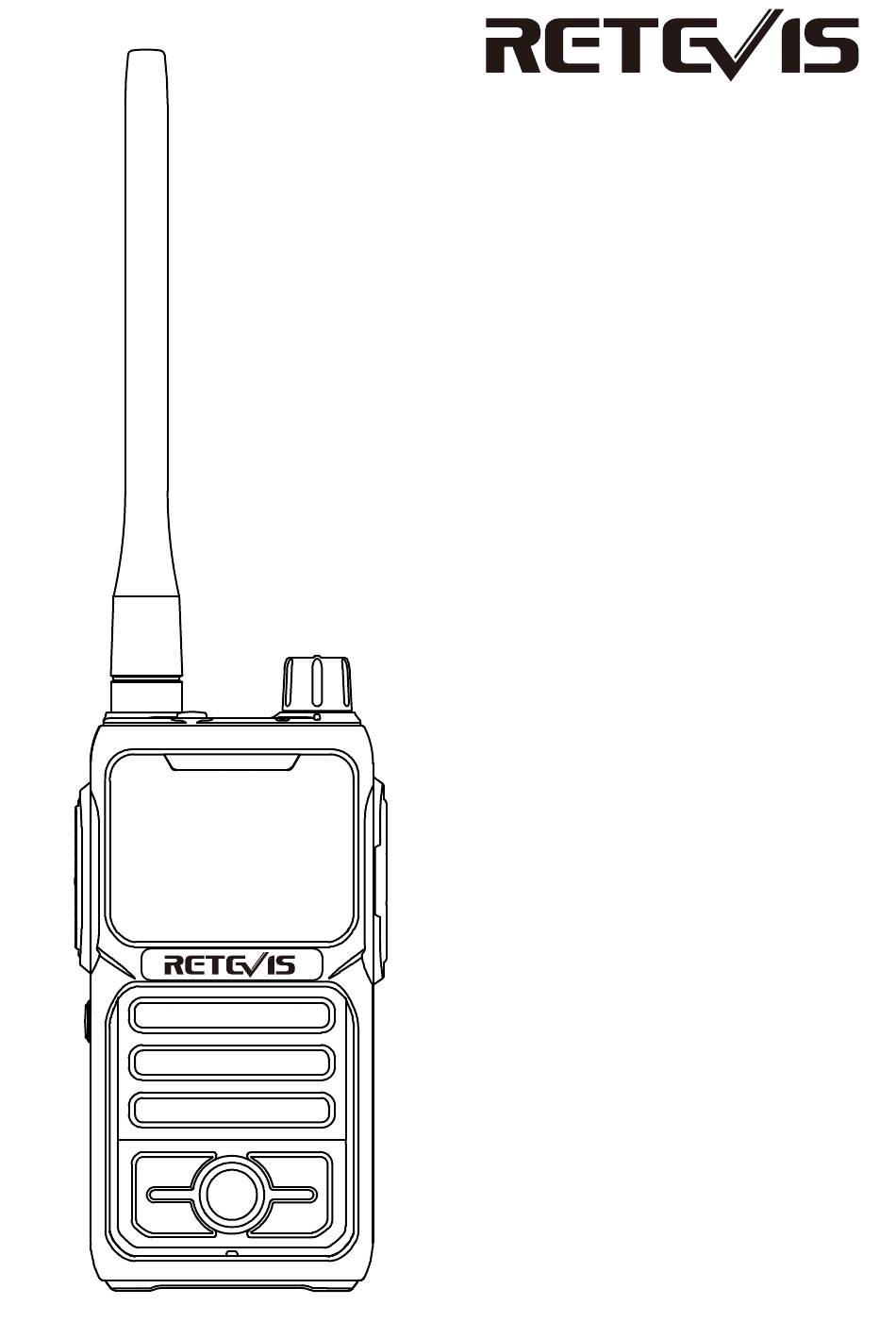

- Page 1 RB17P Two Way Radio User’s Manual...
- Page 2 For downloading further resources: Brochures, Software/Firmware, Manual etc, Pls contact your direct reseller first OR go to website retevis.com and check “support” in the each product link to download it.
-
Page 3: Table Of Contents
Directory Unpack and check the device........Accessories..............Charging battery.............. About Radio..............The parts of radio............LCD Display..............Basic Operations............. Functions and Operation..........Battery................NOAA function..............Squelch level..............CTCSS/DCS..............Switch working channel..........CTCSS Table..............CDCSS Standard Table........... Frequency Table.............. -
Page 4: Unpack And Check The Device
Unpack and check the device Please take the walkie-talkie out of package carefully.We recommend that check all the accessories as the below table list before you discard the package. If you find any accessory is missing or damaged, please contact your local seller. Accessories Item Quantity... -
Page 5: The Parts Of Radio
The parts of radio 1.PTT Button: A：Press PTT can talk 2.Programmable Side button A：Set as the CTCSS/DCS menu: Short press will switch: OFF -> CTCSS -> DCS N -> DCS I -> OFF B：Short press activate the function you set.Optional Function: scan, vox, sub-channel transmit, NOAA, Monitor(Cancel squelch)；... -
Page 6: Lcd Display
LCD Display Icon Describe Save Mode 1：4 KeyTone Battery status CTCSS/DCS Narrow band Companding function A band working frequency Current Channel Number High power Current working Channel B band working frequency NOAA Keypad Lockout Menu A/B band switch Basic Operations 1.Power On：... -
Page 7: Battery
B:Press button choose the menu you want, press to confirm into setting C:Press button to choose the setting you want, press to confirm your setting. D:Press button to exit the menu. Battery A:When the battery is fully charged, the green battery icon will be displayed on the upper right corner of the LCD display B:When the battery is low, the battery is marked yellow. -
Page 8: Switch Working Channel
Switch working channel The current working interface can be set to different frequencies of the A/B band, and the A/B band will be standby working when the dual watch function is turned on. Press key to switch between A/B. In the upper right corner of the current working frequency band, display. -
Page 9: Cdcss Standard Table
CDCSS Standard Table CDCSS Encode Decode CDCSS Encode Decode CDCSS Encode Decode D023N D023I D174N D174I D445N D445I D025N D025I D205N D205I D464N D464N D026N D026I D223N D223I D465N D465N D031N D031I D226N D226I D466N D466I D032N D032I D243N D243I D503N D503I D043N... -
Page 10: Frequency Table
Frequency Table Channel GMRS CTCSS/DCS Power bandwidth 462.5625 462.5625 HIGH 12.5KHz 67.0 462.5875 462.5875 HIGH 12.5KHz 118.8 462.6125 462.6125 HIGH 12.5KHz 127.3 462.6375 462.6375 HIGH 12.5KHz 131.8 462.6625 462.6625 HIGH 12.5KHz 136.5 462.6875 462.6875 HIGH 12.5KHz 141.3 462.7125 462.7125 HIGH 12.5KHz 146.2 467.5625... - Page 11 Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
- Page 12 —Consult the dealer or an experienced radio/TV technician for help. CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
- Page 13 (EE), Ireland (IE), Greece (EL), Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE) and United Kingdom (UK). For the warning information of the frequency restriction, please refer to the package or manual section.
- Page 14 •When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.
- Page 15 Avoid Choking Hazard Small Parts. Not for children under 3 years. Turn off your radio power in the following conditions: •Turn off your radio before removing (installing) a battery or accessory or when charging battery. •Turn off your radio when you are in a potentially hazardous WARNING environments: Near electrical blasting caps, in a blasting area, in explosive atmospheres (inflammable gas, dust particles, metallic...
- Page 16 Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations. •For a list of Retevis-approved accessories for your radio model, visit the following website: http://www.Retevis.com...
- Page 17 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: Contact the seller where you buy.
- Page 18 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web: www.retevis.com E-mail: kam@retevis.com Facebook: facebook.com/retevis MADE IN CHINA...
- Page 19 说明书要求 尺寸：90*130mm 印刷：黑白印刷 装订：胶钉 纸张材质：双胶纸 本页无需印刷...
